REMKE

304EFW7

REMKE | 304EFW7 | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

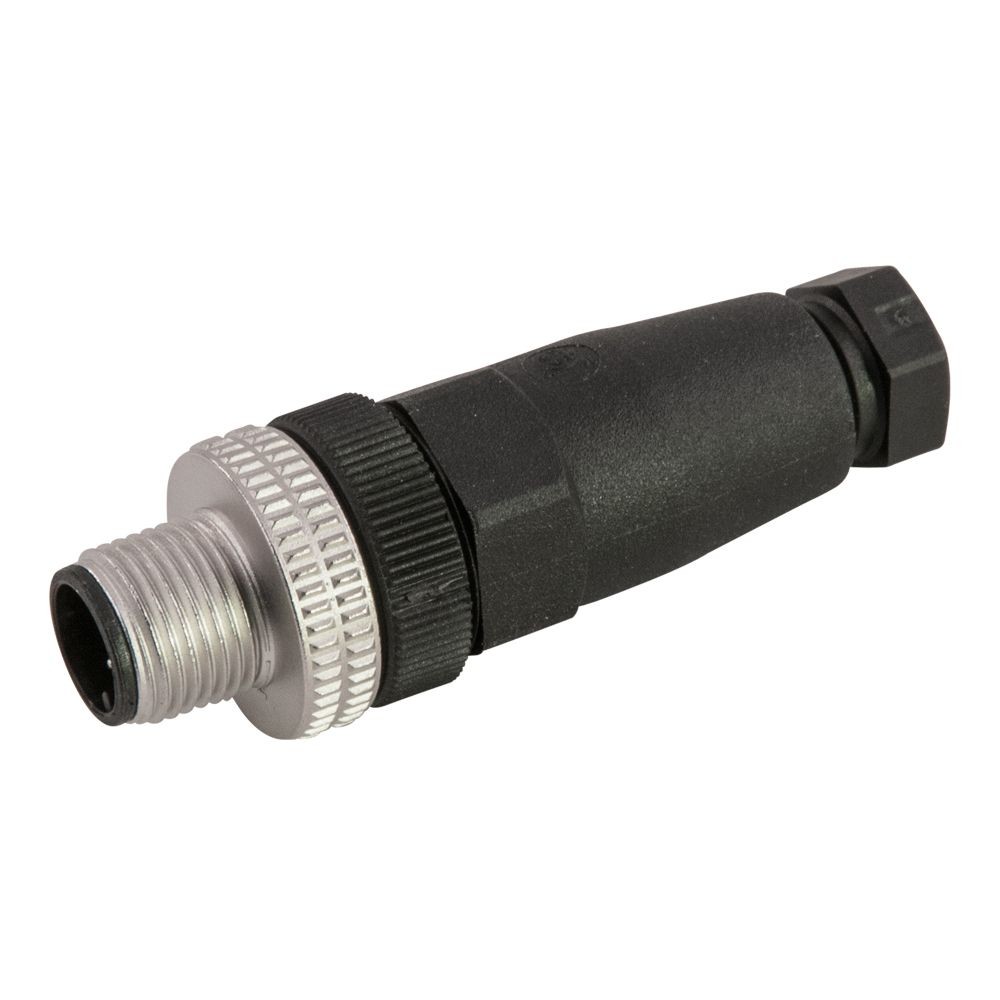

Single Key (M12) Micro-Link Field Attachable Connector, 4 pole, Male, PG7 entry. Remke Part Number: 304EFW7 UPC Code (785411804309)

$28.70

Min: 1  Mult: 1

Product Attributes


Click Here

SPECSHEET-1

Click Here

BRAND

Remke

Photo-M1

Click Here

PRODUCT LENGTH (IN)

2.36

PRODUCT WIDTH (IN)

0.79

Maximum Operating Temperature C

90

Cord set Configuration

Straight

PRODUCT NUMBER

304EFW7

Product Photo

Click Here

PRODUCT LINE

Micro and Mini Connectors

Width in

0.79

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

4

Parent Category

Remke Products, Micro and Mini Connectors

ORing Material

Nitrile Rubber

ORing

1

REACH Compliant

1

RFEMI Protection

No

WARRANTY

1 Year

Voltage Rating DC

150

Voltage Rating AC

125

Voltage Rating (DC)

150

Voltage Rating (AC)

125

UPC

785411804309

UNSPSC

32151908

TITLE

Single Key (M12) Micro-Link Field Attachable Connector, 4 pole, Male, PG7 entry

Thread 1

M12X1

Temperature Application

Standard Temperature

SKU

304EFW7

Shielding Braiding

0

Search Description

M12 Attachable 4p M Pg7

RoHS Compliant

TRUE

NEMA Rating

6P

Molded Connector Type

Plug (Male)

Minimum Operating Temperature F

-13

Insert Material

Nylon

Included O-Ring

Yes

Included Locknut

No

Has Approval

FALSE

GTIN

785411804309

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

4

Coupling Nut Plating

Nickel Plated

Coupling Nut Material

Brass

COUNTRY OF ORIGIN

CN

Cordset Configuration

Straight

Competitors

8A4006-31,785411804309

Additional Title

Single Key (M12) Micro-Link Field Attachable Connector, 4 pole, Male, PG7 entry

Additional Strain Relief Mesh

No

IP Rating

IP67

Additional Search Tags

M12 Attachable 4p M Pg7

Minimum Operating Temperature C

-25

Min Temperature (F)

-13

Min Temperature (C)

-25

Maximum Operating Temperature F

194

Max Temperature (F)

194

Max Temperature (C)

90

Mating Thread Size 1

M12X1

Material

Nylon

MANUFACTURER

NSI Industries

Locknut

0

Length in

2.36

KEYWORDS

M12 Attachable 4p M Pg7

Is Quote Only

FALSE

IS ACTIVE

TRUE

Current Rating amps

4

REMKE Categories

Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Field Attachable Connectors

RF EMI Protection

0
