REMKE

304E0164J

REMKE | 30-E-J | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

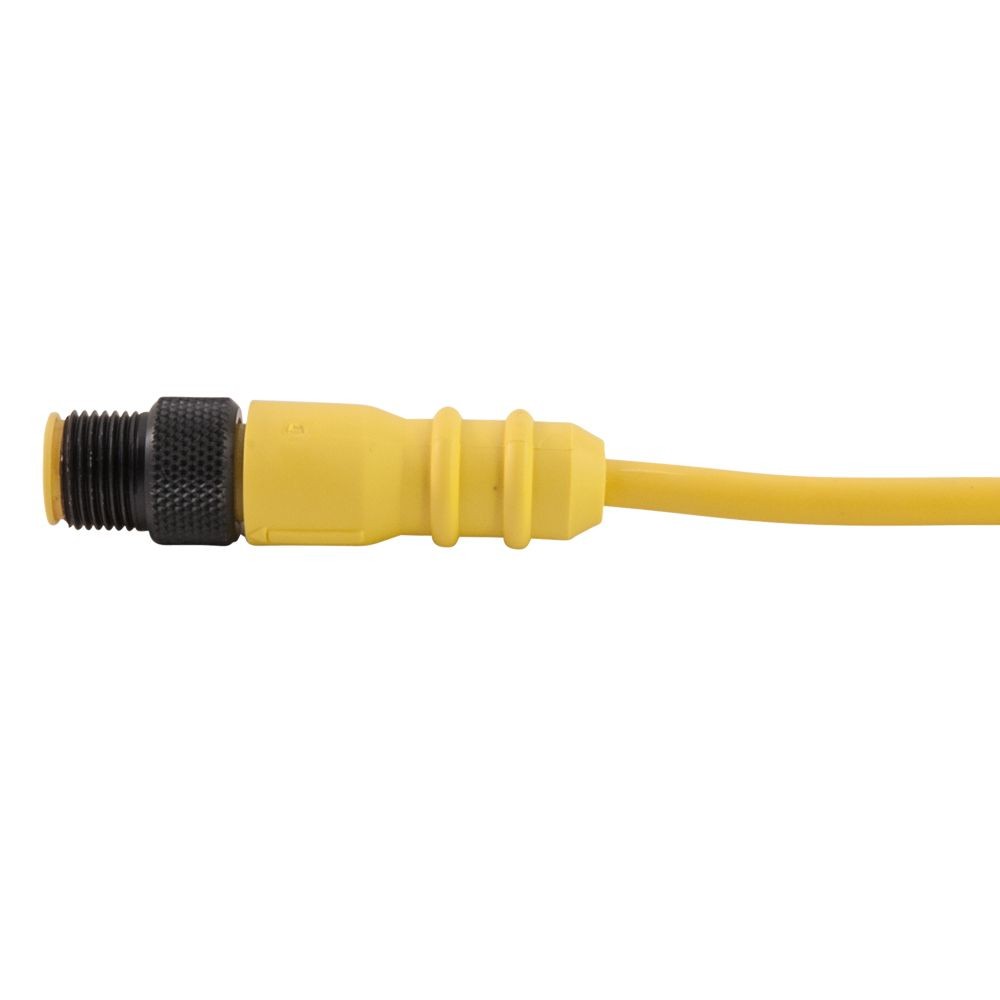

Single Key (M12) Micro-Link Plug Assembly, PVC, Male, 4 pole, 16.4', 22 AWG. Remke Part Number: 304E0164J UPC Code (785411804293)

$36.60

Min: 1  Mult: 1

Product Attributes


Click Here

BRAND

Remke

Photo-M1

Click Here

PRODUCT LENGTH (IN)

2.02

PRODUCT WIDTH (IN)

0.57

Maximum Operating Temperature C

105

Cord set Configuration

Straight

Product Photo

Click Here

REACH Compliant

1

PRODUCT NUMBER

304E0164J

PRODUCT LINE

Micro and Mini Connectors

Wire Gauge

AWG 22.00

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

4

Parent Category

Remke Products, Micro and Mini Connectors

ORing Material

Nitrile Rubber

ORing

1

Wiring Color Code

Euro CC

RFEMI Protection

No

Width in

0.57

WARRANTY

1 Year

Voltage Rating DC

300

Voltage Rating AC

250

Voltage Rating (DC)

300

Voltage Rating (AC)

250

UPC

785411804293

UNSPSC

32151902

TITLE

Single Key (M12) Micro-Link Plug Assembly, PVC, Male, 4 pole, 16.4', 22 AWG

Thread 1

M12X1

Temperature Application

Standard Temperature

SKU

304E0164J

Shielding Braiding

0

Search Description

MICRO-LINK 4-P Str Male Plug 16.4' SKey

RoHS Compliant

TRUE

NEMA Rating

6P

Molded Connector Type

Plug (Male)

Minimum Operating Temperature F

-4

Included O-Ring

Yes

Included Locknut

No

Has Approval

FALSE

GTIN

785411804293

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

4

CSA Standard

E165657

Coupling Nut Plating

Black Anodized

Coupling Nut Material

Aluminum

COUNTRY OF ORIGIN

US

Cordset Configuration

Straight

Competitors

5000118-17,804006A09M050,RS 4.4T-5M,RST 4-633/5M,785411804293

Additional Title

Single Key (M12) Micro-Link Plug Assembly, PVC, Male, 4 pole, 16.4', 22 AWG

Additional Strain Relief Mesh

No

Additional Search Tags

MICRO-LINK 4-P Str Male Plug 16.4' SKey

Insert Material

Nylon

IP Rating

IP67

Minimum Operating Temperature C

-20

Min Temperature (F)

-4

Min Temperature (C)

-20

Maximum Operating Temperature F

221

Max Temperature (F)

221

Max Temperature (C)

105

Mating Thread Size 1

M12X1

Material

PVC

MANUFACTURER

NSI Industries

Locknut

0

Length in

2.02

KEYWORDS

MICRO-LINK 4-P Str Male Plug 16.4' SKey

Is Quote Only

FALSE

IS ACTIVE

TRUE

Current Rating amps

4

REMKE Categories

Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Cordsets & Cable Assemblies

RF EMI Protection

0
