REMKE

303K0066H

REMKE | 30-K-H | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

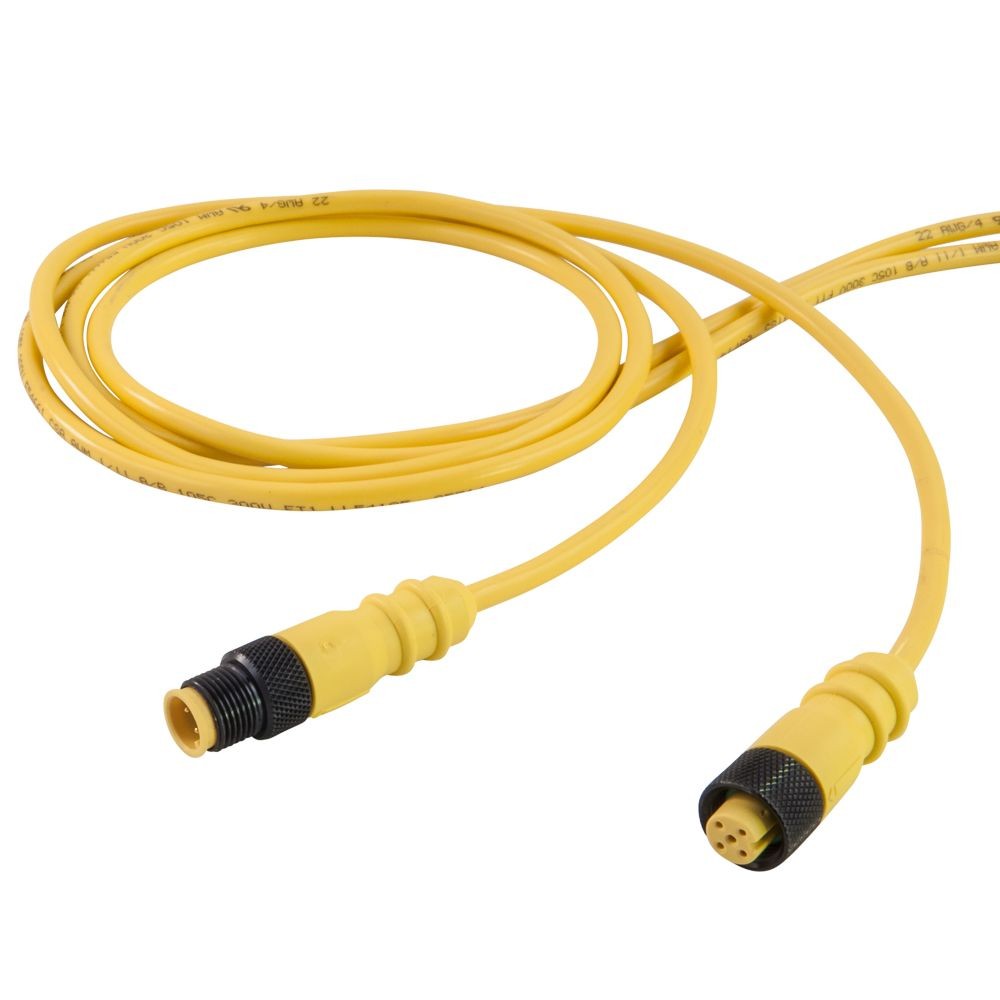

Single Key (M12) Micro-Link Cable Assembly, PVC Braided, Male/Female, 3 pole, 6.6', 22 AWG. Remke Part Number: 303K0066H UPC Code (785411803913)

$40.80

Min: 1  Mult: 1

Product Attributes


Click Here

BRAND

Remke

Photo-M1

Click Here

PRODUCT LENGTH (IN)

2.02

PRODUCT WIDTH (IN)

0.57

Maximum Operating Temperature C

105

Cord set Configuration

Straight/Straight

PRODUCT WIDTH (IN) 2

0.57

REACH Compliant

1

Product Photo

Click Here

PRODUCT NUMBER

303K0066H

PRODUCT LINE

Micro and Mini Connectors

Wiring Color Code

Euro CC

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

3

Parent Category

Remke Products, Micro and Mini Connectors

ORing Material

Nitrile Rubber

ORing

1

RFEMI Protection

No

RoHS Compliant

TRUE

Search Description

MICRO-LINK 3-P Str M/F Cble Assy 6.6' SK

Wire Gauge

AWG 22.00

Width in 2

0.57

Width in

0.57

WARRANTY

1 Year

Voltage Rating DC

300

Voltage Rating AC

250

Voltage Rating (DC)

300

Voltage Rating (AC)

250

UPC

785411803913

UNSPSC

32151904

TITLE

Single Key (M12) Micro-Link Cable Assembly, PVC Braided, Male/Female, 3 pole, 6.6', 22 AWG

Thread 2

M12X1

Thread 1

M12X1

Temperature Application

Standard Temperature

SKU

303K0066H

Shielding Braiding

1

NEMA Rating

6P

Molded Connector Type

Dual Cordset Plug/Socket

IP Rating

IP67

Insert Material

Nylon

Included O-Ring

Yes

Included Locknut

No

Has Approval

FALSE

GTIN

785411803913

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

4

CSA Standard

E165657

Coupling Nut Plating

Black Anodized

Coupling Nut Material

Aluminum

COUNTRY OF ORIGIN

US

Cordset Configuration

Straight/Straight

Competitors

5000117-70B,883030D01M020,785411803913

Additional Title

Single Key (M12) Micro-Link Cable Assembly, PVC Braided, Male/Female, 3 pole, 6.6', 22 AWG

Additional Strain Relief Mesh

No

IS ACTIVE

TRUE

Is Quote Only

FALSE

Additional Search Tags

MICRO-LINK 3-P Str M/F Cble Assy 6.6' SK

Minimum Operating Temperature F

-4

Minimum Operating Temperature C

-20

Min Temperature (F)

-4

Min Temperature (C)

-20

Maximum Operating Temperature F

221

Max Temperature (F)

221

Max Temperature (C)

105

Mating Thread Size 2

M12X1

Mating Thread Size 1

M12X1

Material

PVC

MANUFACTURER

NSI Industries

Locknut

0

Length in 2

1.85

Length in

2.02

KEYWORDS

MICRO-LINK 3-P Str M/F Cble Assy 6.6' SK

Current Rating amps

4

REMKE Categories

Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Cordsets & Cable Assemblies

RF EMI Protection

0
