REMKE

205W0010N

REMKE | 20-W0010N | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

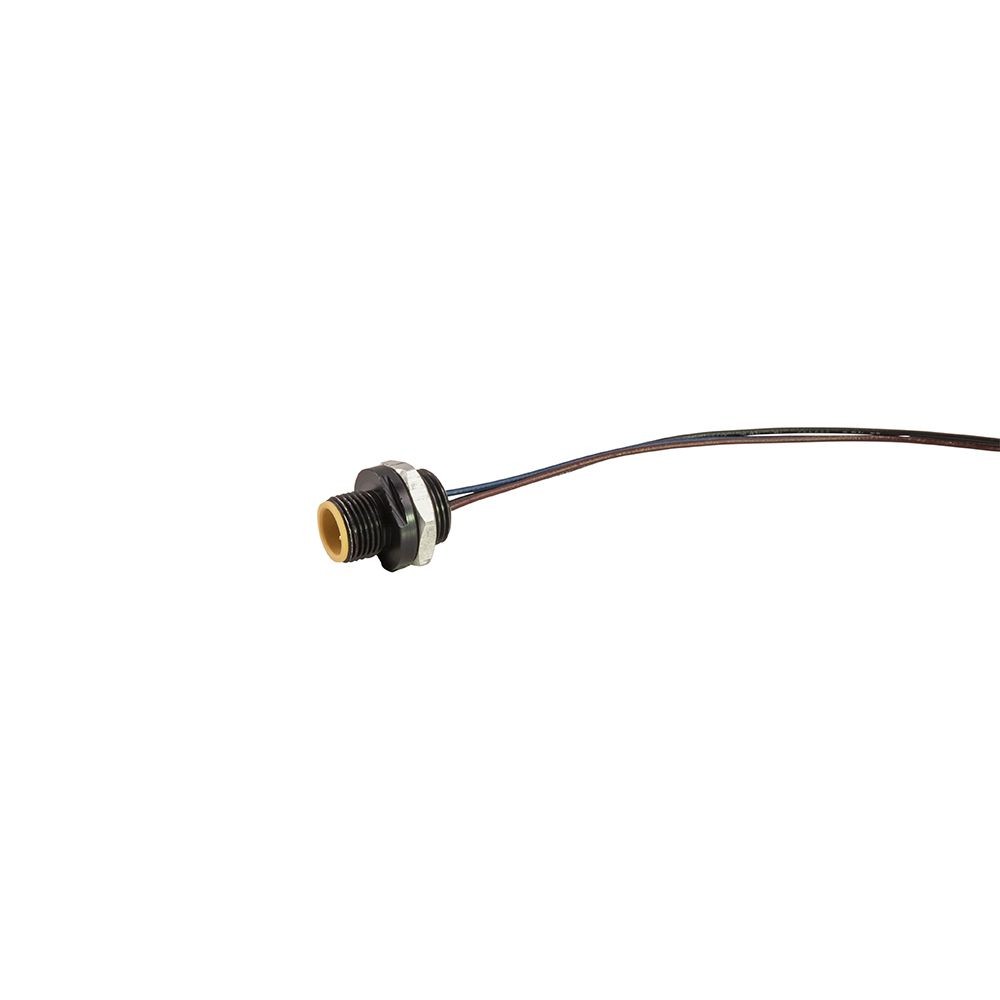

Dual Key Micro-Link Receptacle, Female, 5 pole, 1', Back Panel Mount. Remke Part Number: 205W0010N UPC Code (785411803272)

$27.90

Min: 1  Mult: 1

Product Attributes


Click Here

BRAND

Remke

Photo-M1

Click Here

PRODUCT LENGTH (IN)

0.85

Maximum Operating Temperature C

80

Product Photo

Click Here

REACH Compliant

1

Receptacle Configuration

Male Back Panel Mount

Receptacle Lead Jacket Material

PVC

Receptacle Lead Length

1

Wiring Color Code

Auto CC

PRODUCT NUMBER

205W0010N

PRODUCT LINE

Micro and Mini Connectors

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

5

RFEMI Protection

No

RoHS Compliant

TRUE

Shell Material

Machined Aluminum

Wire Gauge

AWG 18.00

WARRANTY

1 Year

Voltage Rating DC

300

Voltage Rating AC

250

Voltage Rating (DC)

300

Voltage Rating (AC)

250

UPC

785411803272

UNSPSC

32151905

TITLE

Dual Key Micro-Link Receptacle, Female, 5 pole, 1', Back Panel Mount

Thread 1

1/2-20 UNF

Temperature Application

Standard Temperature

SKU

205W0010N

Shielding Braiding

0

Shell Plating

Clear Anodized

Parent Category

Remke Products, Micro and Mini Connectors

ORing Material

Nitrile Rubber

Is Quote Only

FALSE

IS ACTIVE

TRUE

IP Rating

IP67

Insert Material

Nylon

Included O-Ring

Yes

Included Locknut

Yes

Has Approval

FALSE

GTIN

785411803272

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

5

CSA Standard

E165657

COUNTRY OF ORIGIN

US

Competitors

7.85412E+11

Additional Title

Dual Key Micro-Link Receptacle, Female, 5 pole, 1', Back Panel Mount

Length in

0.85

Locknut

1

Additional Strain Relief Mesh

No

ORing

1

NEMA Rating

6P

Molded Connector Type

Socket (Female)

Minimum Operating Temperature F

-4

Minimum Operating Temperature C

-20

Min Temperature (F)

-4

Min Temperature (C)

-20

Maximum Operating Temperature F

176

Max Temperature (F)

176

Max Temperature (C)

80

Mating Thread Size 1

1/2-20 UNF

MANUFACTURER

NSI Industries

Locknut Material

Steel

Current Rating amps

5

REMKE Categories

Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Receptacles

RF EMI Protection

0
