205P0010P
Factory Lead Time: TBD
RoHs Compliant
Dual Key Micro-Link Receptacle, Male, 5 pole, 1', 1/2" NPT. Remke Part Number: 205P0010P UPC Code (785411803210)
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
BRAND
Remke
PRODUCT LENGTH (IN)
1
Photo-M1
Maximum Operating Temperature C
80
REACH Compliant
1
Receptacle Configuration
Male Straight
Receptacle Lead Jacket Material
PVC
Receptacle Lead Length
1
RFEMI Protection
No

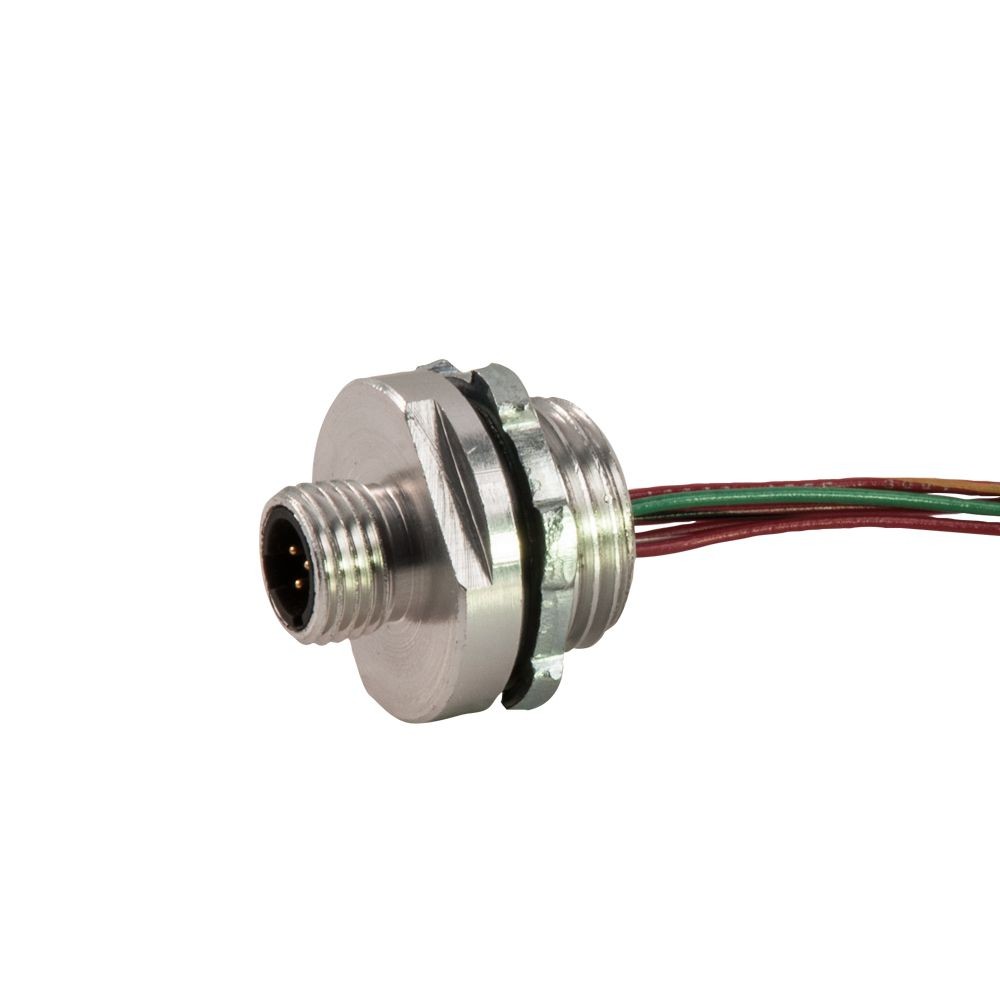

Product Photo
PRODUCT NUMBER
205P0010P
PRODUCT LINE
Micro and Mini Connectors
Wiring Color Code
Auto CC
PRODUCT GROUP
Industrial Power Cordsets
PRODUCT CATEGORY
Molded Connectors and Cordsets
Pin Count (Number of Poles)
5
Parent Category
Remke Products, Micro and Mini Connectors
RoHS Compliant
TRUE
Search Description
MICRO-LINK 5-P Male Recep 1/2"NPT
Wire Gauge
AWGÂ 22.00
WARRANTY
1 Year
Voltage Rating DC
300
Voltage Rating AC
250
Voltage Rating (DC)
300
Voltage Rating (AC)
250
UPC
785411803210
UNSPSC
32151902
TITLE
Dual Key Micro-Link Receptacle, Male, 5 pole, 1', 1/2" NPT
Thread 2
1/2-14 NPT
Thread 1
1/2-20 UNF
Temperature Application
Standard Temperature
SKU
205P0010P
Shielding Braiding
0
Shell Plating
Clear Anodized
Shell Material
Machined Aluminum
ORing Material
Nitrile Rubber
ORing
1
NEMA Rating
6P
KEYWORDS
MICRO-LINK 5-P Male Recep 1/2"NPT
Is Quote Only
FALSE
IS ACTIVE
TRUE
IP Rating
IP67
Insert Material
Nylon
Included O-Ring
Yes
Included Locknut
Yes
Has Approval
FALSE
GTIN
785411803210
DATE LAST UPDATED
3/20/24
Current Rating (AMPS)
4
CSA Standard
E165657
COUNTRY OF ORIGIN
US
Competitors
5000116-14,7R5006A19A120,785411803210
Additional Title
Dual Key Micro-Link Receptacle, Male, 5 pole, 1', 1/2" NPT
Additional Strain Relief Mesh
No
Length in
1
Locknut
1
Molded Connector Type
Plug (Male)
Minimum Operating Temperature F
-4
Minimum Operating Temperature C
-20
Min Temperature (F)
-4
Min Temperature (C)
-20
Maximum Operating Temperature F
176
Maximum Knockout Size (IN)
0.906
Maximum Knock Out Size in
0.906
Max Temperature (F)
176
Locknut Material
Steel
MANUFACTURER
NSI Industries
Mating Thread Size 1
1/2-20 UNF
Mating Thread Size 2
1/2-14 NPT
Max Temperature (C)
80
Additional Search Tags
MICRO-LINK 5-P Male Recep 1/2"NPT
Current Rating amps
4
REMKE Categories
Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Receptacles
RF EMI Protection
0
Series Attributes
Not available at this time.
