REMKE

202E0200G

yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

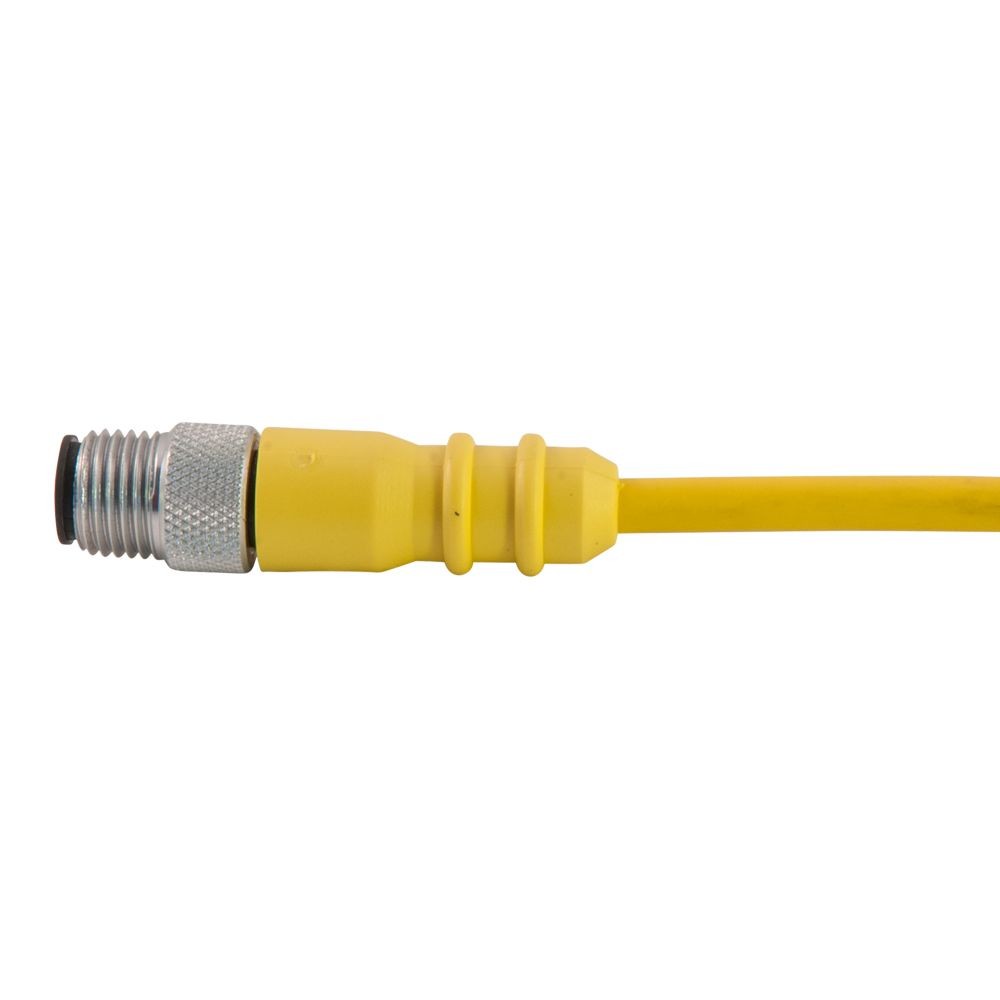

Dual Key Micro-Link Plug Assembly, PVC Braided, Male, 2 pole, 20', 22 AWG. Remke Part Number: 202E0200G UPC Code (785411801919)

$31.70

Min: 1  Mult: 1

Product Attributes

BRAND

Remke

Photo-M1
PRODUCT LENGTH (IN)

2.02

PRODUCT WIDTH (IN)

0.57

Maximum Operating Temperature C

105

Cord set Configuration

Straight

Product Photo
REACH Compliant

1

PRODUCT NUMBER

202E0200G

PRODUCT LINE

Micro and Mini Connectors

Wire Gauge

AWG 22.00

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

2

Parent Category

Remke Products, Micro and Mini Connectors

ORing Material

Nitrile Rubber

ORing

1

Wiring Color Code

Auto CC

RFEMI Protection

No

Width in

0.57

WARRANTY

1 Year

Voltage Rating DC

300

Voltage Rating AC

250

Voltage Rating (DC)

300

Voltage Rating (AC)

250

UPC

785411801919

UNSPSC

32151902

TITLE

Dual Key Micro-Link Plug Assembly, PVC Braided, Male, 2 pole, 20', 22 AWG

Thread 1

1/2-20 UNF

Temperature Application

Standard Temperature

SKU

202E0200G

Shielding Braiding

1

Search Description

MICRO-LINK 2-P Str Male Plug 20' DKey

RoHS Compliant

TRUE

NEMA Rating

6P

Molded Connector Type

Plug (Male)

Minimum Operating Temperature F

-4

Included O-Ring

Yes

Included Locknut

No

Has Approval

FALSE

GTIN

785411801919

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

4

CSA Standard

E165657

Coupling Nut Plating

Clear Anodized

Coupling Nut Material

Aluminum

COUNTRY OF ORIGIN

US

Cordset Configuration

Straight

Competitors

702006D02F200,785411801919

Additional Title

Dual Key Micro-Link Plug Assembly, PVC Braided, Male, 2 pole, 20', 22 AWG

Additional Strain Relief Mesh

No

Additional Search Tags

MICRO-LINK 2-P Str Male Plug 20' DKey

Insert Material

Nylon

IP Rating

IP67

Minimum Operating Temperature C

-20

Min Temperature (F)

-4

Min Temperature (C)

-20

Maximum Operating Temperature F

221

Max Temperature (F)

221

Max Temperature (C)

105

Mating Thread Size 1

1/2-20 UNF

Material

PVC

MANUFACTURER

NSI Industries

Locknut

0

Length in

2.02

KEYWORDS

MICRO-LINK 2-P Str Male Plug 20' DKey

Is Quote Only

FALSE

IS ACTIVE

TRUE

Current Rating amps

4

REMKE Categories

Industrial Molded Connectors>Micro Link M12 Connectors & Cordsets>Micro M12 Cordsets & Cable Assemblies

RF EMI Protection

0
