110P0010M
Factory Lead Time: TBD
RoHs Compliant
Mini-Link Receptacle, Male, 10 pole, 1'. Remke Part Number: 110P0010M UPC Code (785411017716)
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
SPECSHEET-1
BRAND
Remke
Photo-M1
PRODUCT LENGTH (IN)
1.6
Maximum Operating Temperature C
105
Wiring Color Code
Auto CC
Receptacle Configuration
Male Straight
Receptacle Lead Jacket Material
PVC
Receptacle Lead Length
1
RFEMI Protection
No
REACH Compliant
1

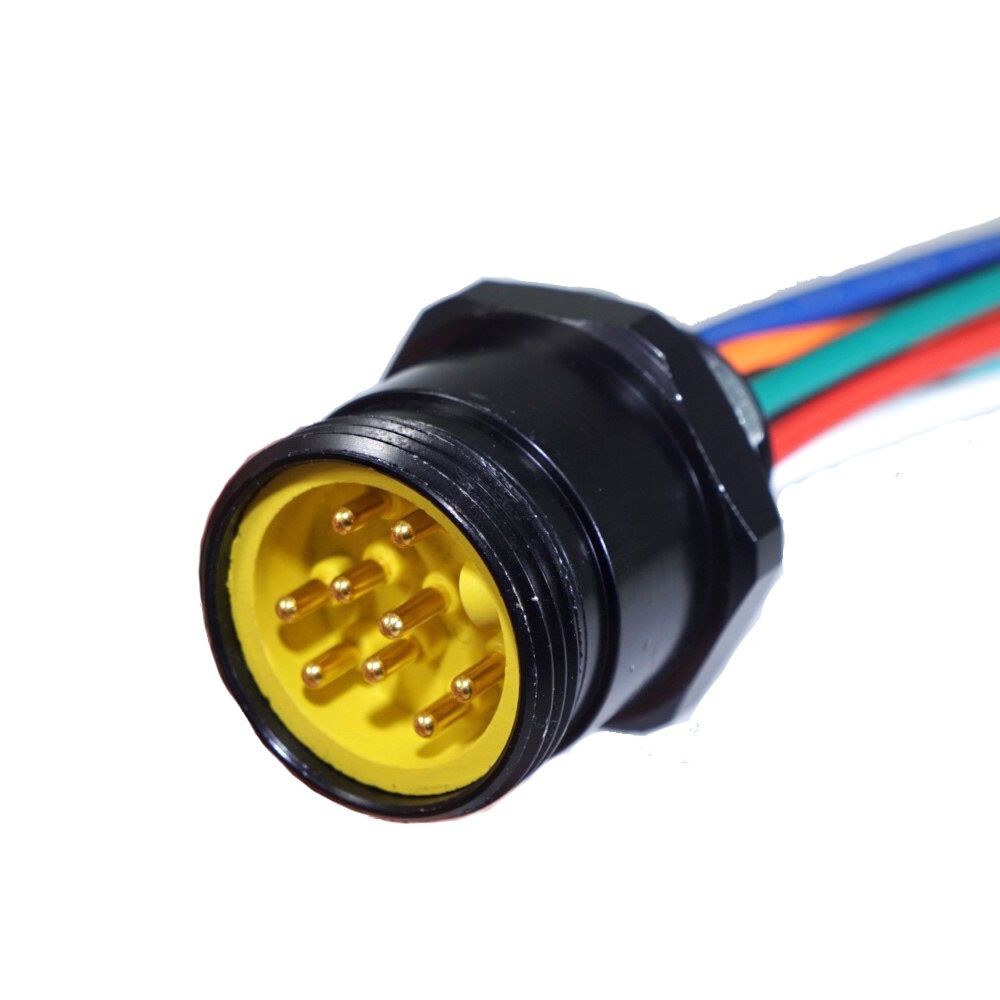

Product Photo
PRODUCT NUMBER
110P0010M
PRODUCT LINE
Micro and Mini Connectors
PRODUCT GROUP
Industrial Power Cordsets
PRODUCT CATEGORY
Molded Connectors and Cordsets
Pin Count (Number of Poles)
10
Parent Category
Remke Products, Micro and Mini Connectors
RoHS Compliant
TRUE
Search Description
10 Pole 12" MALE STR REC
Wire Gauge
AWGÂ 16.00
WARRANTY
1 Year
Voltage Rating DC
600
Voltage Rating AC
600
Voltage Rating (DC)
600
Voltage Rating (AC)
600
UPC
785411017716
UNSPSC
32151905
TITLE
Mini-Link Receptacle, Male, 10 pole, 1'
Thread 2
1/2-14 NPT
Thread 1
1-8 UN
Temperature Application
Standard Temperature
SKU
110P0010M
Shielding Braiding
0
Shell Plating
Black Anodized
Shell Material
Machined Aluminum
ORing Material
Viton
ORing
1
KEYWORDS
10 Pole 12" MALE STR REC
Is Quote Only
FALSE
IS ACTIVE
TRUE
IP Rating
IP67
Insert Material
PVC
Included O-Ring
Yes
Included Locknut
Yes
Has Approval
FALSE
GTIN
785411017716
DATE LAST UPDATED
3/20/24
Current Rating (AMPS)
7
CSA Standard
E165657
COUNTRY OF ORIGIN
US
Competitors
47205,X8991-2,785411017716
Additional Title
Mini-Link Receptacle, Male, 10 pole, 1'
Additional Strain Relief Mesh
No
Length in
1.6
Locknut
1
Locknut Material
Steel
O-Ring Material
Viton
NEMA Rating
6P
Minimum Operating Temperature F
-4
Minimum Operating Temperature C
-20
Min Temperature (F)
-4
Min Temperature (C)
-20
Maximum Operating Temperature F
221
Maximum Knockout Size (IN)
0.906
Maximum Knock Out Size in
0.906
MANUFACTURER
NSI Industries
Mating Thread Size 1
1-8 UN
Mating Thread Size 2
1/2-14 NPT
Max Temperature (C)
105
Max Temperature (F)
221
Additional Search Tags
10 Pole 12" MALE STR REC
Current Rating amps
7
REMKE Categories
Industrial Molded Connectors>Mini Link (7/8) Connectors & Cordsets>Mini 7/8 Receptacles
RF EMI Protection
0
