REMKE

110D0120AP

REMKE | 1-D-AP | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

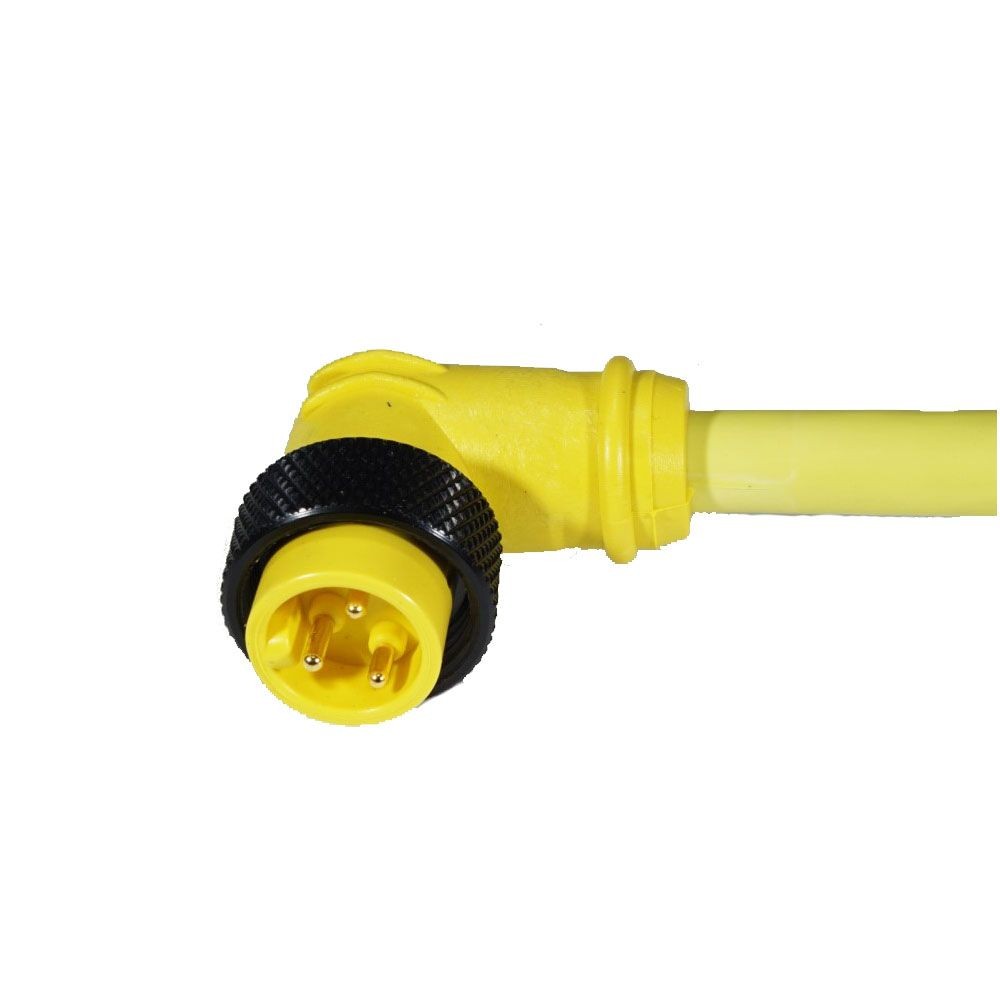

Mini-Link Plug Assembly, PVC, Male 90 deg, 10 pole, 12', 16 AWG. Remke Part Number: 110D0120AP UPC Code (785411043081)

$150.30

Min: 1  Mult: 1

Product Attributes

BRAND

Remke


Click Here

PRODUCT LENGTH (IN)

2.015

Photo-M1

Click Here

PRODUCT WIDTH (IN)

1.125

Maximum Operating Temperature C

180

Cord set Configuration

90 Degree

REACH Compliant

1

Product Photo

Click Here

PRODUCT NUMBER

110D0120AP

PRODUCT LINE

Micro and Mini Connectors

Wiring Color Code

Auto CC

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

10

Parent Category

Remke Products, Micro and Mini Connectors

ORing

0

RFEMI Protection

No

RoHS Compliant

TRUE

Wire Gauge

AWG 16.00

Width in

1.125

WARRANTY

1 Year

Voltage Rating DC

600

Voltage Rating AC

600

Voltage Rating (DC)

600

Voltage Rating (AC)

600

UPC

785411043081

UNSPSC

32151902

TITLE

Mini-Link Plug Assembly, PVC, Male 90 deg, 10 pole, 12', 16 AWG

Thread 1

1-8 UN

Temperature Application

Standard Temperature

SKU

110D0120AP

Shielding Braiding

0

NEMA Rating

6P

Minimum Operating Temperature F

-58

Insert Material

PVC

Included O-Ring

No

Included Locknut

No

Height in

2.24

Has Approval

FALSE

GTIN

785411043081

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

7

Coupling Nut Plating

Black Anodized

Coupling Nut Material

Aluminum

COUNTRY OF ORIGIN

US

Cordset Configuration

90 Degree

Competitors

7.85411E+11

Additional Title

Mini-Link Plug Assembly, PVC, Male 90 deg, 10 pole, 12', 16 AWG

IP Rating

IP67

Additional Strain Relief Mesh

No

Maximum Operating Temperature F

356

Max Temperature (F)

356

Max Temperature (C)

180

Mating Thread Size 1

1-8 UN

Min Temperature (F)

-58

Material

PVC

MANUFACTURER

NSI Industries

Locknut

0

Length in

2.015

Is Quote Only

FALSE

IS ACTIVE

TRUE

Minimum Operating Temperature C

-50

Min Temperature (C)

-50

Current Rating amps

7

REMKE Categories

Industrial Molded Connectors>Mini Link (7/8) Connectors & Cordsets>Mini 7/8 Cordsets & Cable Assemblies

RF EMI Protection

0
