REMKE

110C0200AP

REMKE | 1-C-AP | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

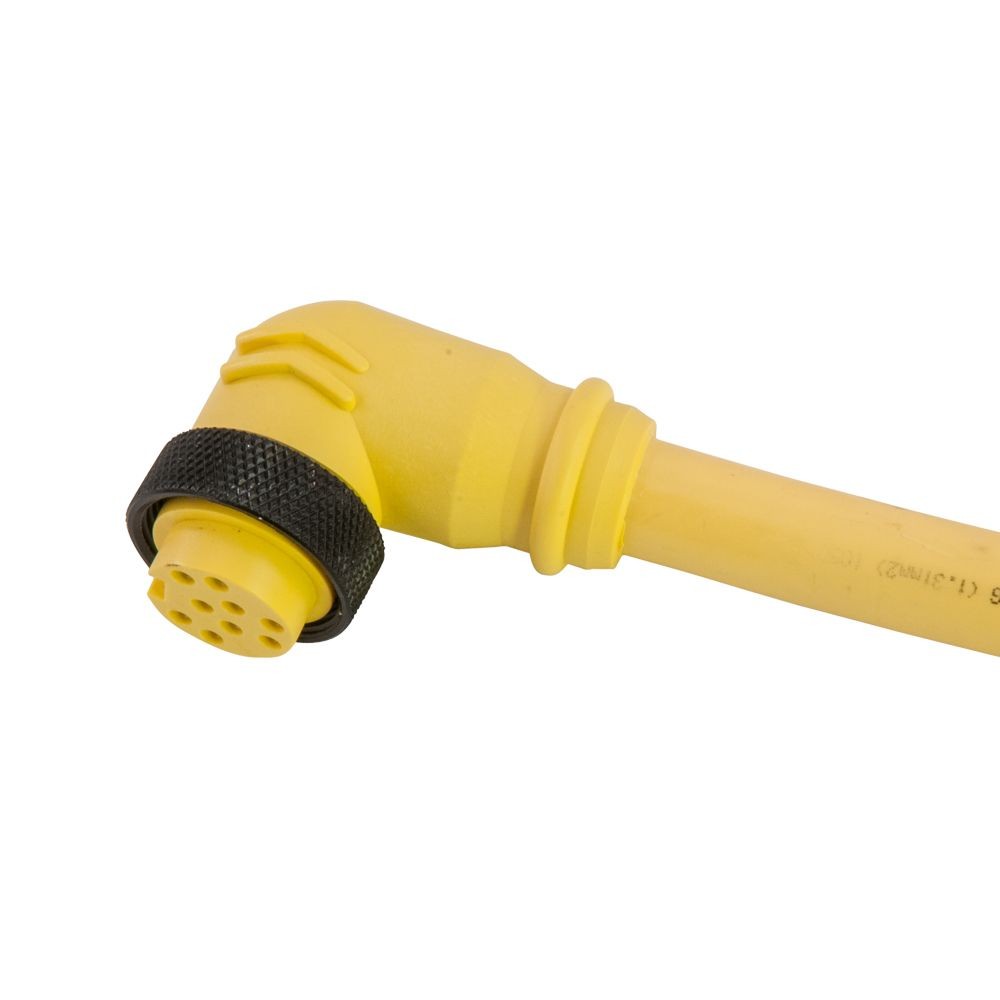

Mini-Link Plug Assembly, PVC, Female 90 deg, 10 pole, 20', 16 AWG. Remke Part Number: 110C0200AP UPC Code (785411043067)

$226.00

Min: 1  Mult: 1

Product Attributes

BRAND

Remke


Click Here

PRODUCT LENGTH (IN)

2.015

Photo-M1

Click Here

PRODUCT WIDTH (IN)

1.125

Maximum Operating Temperature C

180

Cord set Configuration

90 Degree

REACH Compliant

1

Product Photo

Click Here

PRODUCT NUMBER

110C0200AP

PRODUCT LINE

Micro and Mini Connectors

Wiring Color Code

Auto CC

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

10

Parent Category

Remke Products, Micro and Mini Connectors

ORing

0

RFEMI Protection

No

RoHS Compliant

TRUE

Search Description

10 pole 20' FEMALE 90

Wire Gauge

AWG 16.00

Width in

1.125

WARRANTY

1 Year

Voltage Rating DC

600

Voltage Rating AC

600

Voltage Rating (DC)

600

Voltage Rating (AC)

600

UPC

785411043067

UNSPSC

32151902

TITLE

Mini-Link Plug Assembly, PVC, Female 90 deg, 10 pole, 20', 16 AWG

Thread 1

1-8 UN

Temperature Application

Standard Temperature

SKU

110C0200AP

Shielding Braiding

0

NEMA Rating

6P

Minimum Operating Temperature F

-58

Minimum Operating Temperature C

-50

Included O-Ring

No

Included Locknut

No

Height in

2.24

Has Approval

FALSE

GTIN

785411043067

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

7

Coupling Nut Plating

Black Anodized

Coupling Nut Material

Aluminum

COUNTRY OF ORIGIN

US

Cordset Configuration

90 Degree

Competitors

47239-90,785411043067

Additional Title

Mini-Link Plug Assembly, PVC, Female 90 deg, 10 pole, 20', 16 AWG

Additional Strain Relief Mesh

No

Insert Material

PVC

IP Rating

IP67

Additional Search Tags

10 pole 20' FEMALE 90

Min Temperature (F)

-58

Min Temperature (C)

-50

Maximum Operating Temperature F

356

Max Temperature (F)

356

Max Temperature (C)

180

Mating Thread Size 1

1-8 UN

Material

PVC

MANUFACTURER

NSI Industries

Locknut

0

Length in

2.015

KEYWORDS

10 pole 20' FEMALE 90

Is Quote Only

FALSE

IS ACTIVE

TRUE

Current Rating amps

7

REMKE Categories

Industrial Molded Connectors>Mini Link (7/8) Connectors & Cordsets>Mini 7/8 Cordsets & Cable Assemblies

RF EMI Protection

0
