108B0060AP
Factory Lead Time: TBD
RoHs Compliant
Mini-Link Plug Assembly, PVC, Male, 8 pole, 6', 16 AWG. Remke Part Number: 108B0060AP UPC Code (785411035734)
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
BRAND
Remke
PRODUCT LENGTH (IN)
2.48
Photo-M1
PRODUCT WIDTH (IN)
1.125
Maximum Operating Temperature C
180
Cord set Configuration
Straight
REACH Compliant
1

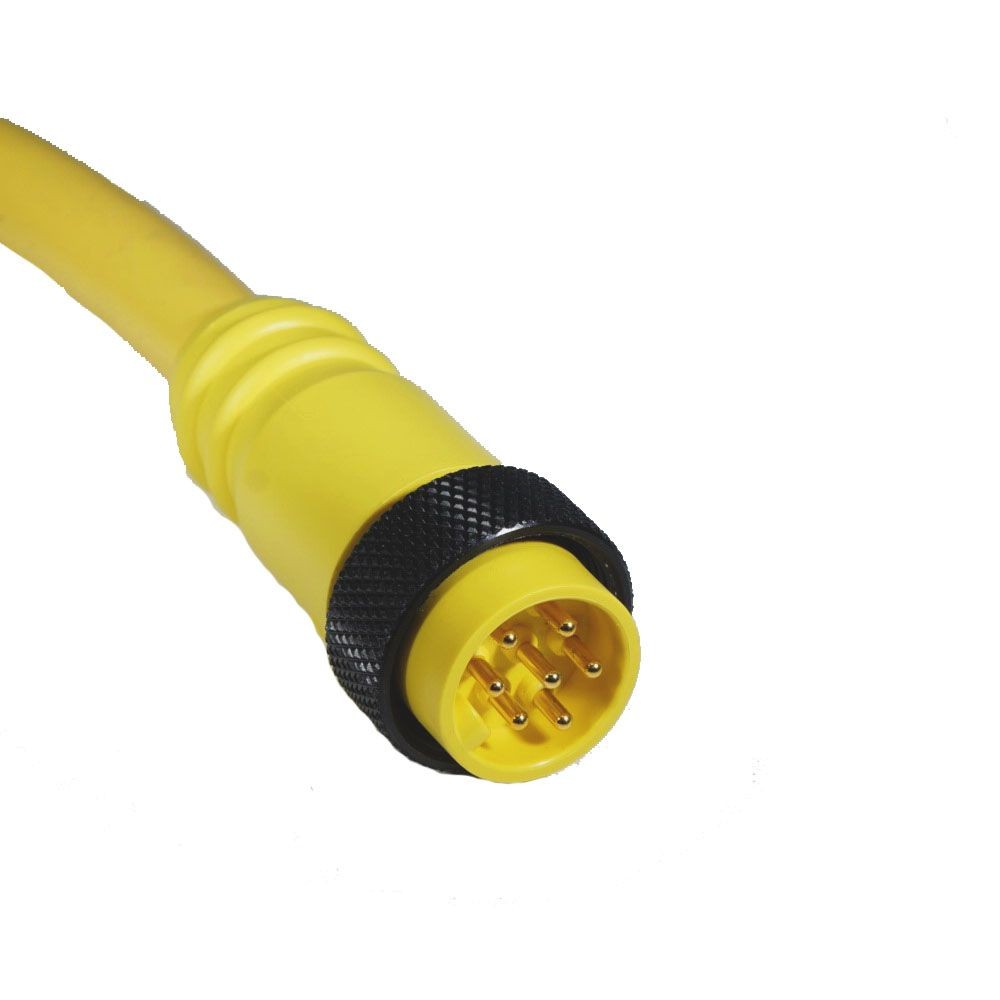

Product Photo
PRODUCT NUMBER
108B0060AP
PRODUCT LINE
Micro and Mini Connectors
Wiring Color Code
Auto CC
PRODUCT GROUP
Industrial Power Cordsets
PRODUCT CATEGORY
Molded Connectors and Cordsets
Pin Count (Number of Poles)
8
Parent Category
Remke Products, Micro and Mini Connectors
ORing
0
RFEMI Protection
No
RoHS Compliant
TRUE
Search Description
8 pole 12' MALE STR
Wire Gauge
AWGÂ 16.00
Width in
1.125
WARRANTY
1 Year
Voltage Rating DC
600
Voltage Rating AC
600
Voltage Rating (DC)
600
Voltage Rating (AC)
600
UPC
785411035734
UNSPSC
32151902
TITLE
Mini-Link Plug Assembly, PVC, Male, 8 pole, 6', 16 AWG
Thread 1
1-16 UN
Temperature Application
Standard Temperature
SKU
108B0060AP
Shielding Braiding
0
NEMA Rating
6P
Minimum Operating Temperature F
-58
Insert Material
PVC
Included O-Ring
No
Included Locknut
No
Has Approval
FALSE
GTIN
785411035734
DATE LAST UPDATED
3/20/24
Current Rating (AMPS)
7
Coupling Nut Plating
Black Anodized
Coupling Nut Material
Aluminum
COUNTRY OF ORIGIN
US
Cordset Configuration
Straight
Competitors
43009,43010,X8989-7S,785411035734
Additional Title
Mini-Link Plug Assembly, PVC, Male, 8 pole, 6', 16 AWG
Additional Strain Relief Mesh
No
IP Rating
IP67
IS ACTIVE
TRUE
Additional Search Tags
8 pole 12' MALE STR
Minimum Operating Temperature C
-50
Min Temperature (F)
-58
Min Temperature (C)
-50
Maximum Operating Temperature F
356
Max Temperature (F)
356
Max Temperature (C)
180
Mating Thread Size 1
1-16 UN
Material
PVC
MANUFACTURER
NSI Industries
Locknut
0
Length in
2.48
KEYWORDS
8 pole 12' MALE STR
Is Quote Only
FALSE
Current Rating amps
7
REMKE Categories
Industrial Molded Connectors>Mini Link (7/8) Connectors & Cordsets>Mini 7/8 Cordsets & Cable Assemblies
RF EMI Protection
0
Series Attributes
Not available at this time.
