Price List
106AU0010M
Factory Lead Time: TBD
RoHs Compliant
Mini-Link Receptacle, Male 90 deg, 6A pole, 1'. Remke Part Number: 106AU0010M UPC Code (785411435718)
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
BRAND
Remke
PRODUCT WIDTH (IN)
1.33
Photo-M1
PRODUCT LENGTH (IN)
1.94
Maximum Operating Temperature C
105
Receptacle Lead Jacket Material
PVC
RFEMI Protection
No
Receptacle Configuration
Male 90 Degree
REACH Compliant
1
Receptacle Lead Length
1

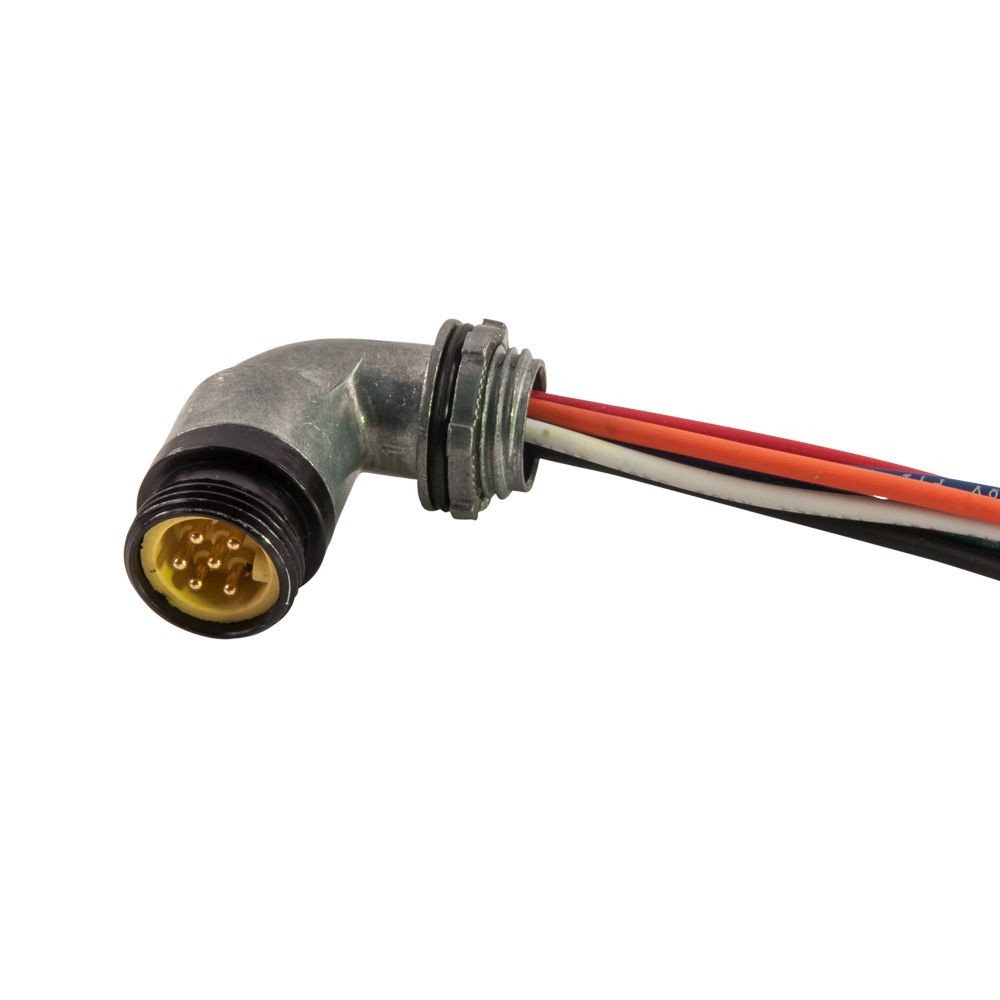

Product Photo
PRODUCT NUMBER
106AU0010M
Wiring Color Code
Auto CC
PRODUCT LINE
Micro and Mini Connectors
PRODUCT GROUP
Industrial Power Cordsets
PRODUCT CATEGORY
Molded Connectors and Cordsets
Pin Count (Number of Poles)
6
RoHS Compliant
TRUE
Search Description
6 Pole 12" A-sMALE 90 REC (106AU0010M)
Shell Material
Machined Aluminum
Wire Gauge
AWGÂ 16.00
Width in
1.33
WARRANTY
1 Year
Voltage Rating DC
600
Voltage Rating AC
600
Voltage Rating (DC)
600
Voltage Rating (AC)
600
UPC
785411435718
UNSPSC
32151905
TITLE
Mini-Link Receptacle, Male 90 deg, 6A pole, 1'
Thread 2
1/2-14 NPT
Thread 1
7/8-16 UNS
Temperature Application
Standard Temperature
SKU
106AU0010M
Shielding Braiding
0
Shell Plating
Black Anodized
Parent Category
Remke Products, Micro and Mini Connectors
ORing Material
Viton
ORing
1
KEYWORDS
6 Pole 12" A-sMALE 90 REC (106AU0010M)
Is Quote Only
FALSE
IS ACTIVE
TRUE
IP Rating
IP67
Insert Material
PVC
Included O-Ring
Yes
Included Locknut
Yes
Has Approval
FALSE
GTIN
785411435718
DATE LAST UPDATED
3/20/24
Current Rating (AMPS)
8
CSA Standard
E165657
COUNTRY OF ORIGIN
US
Competitors
41604,5000120-18,785411435718
Additional Title
Mini-Link Receptacle, Male 90 deg, 6A pole, 1'
Additional Strain Relief Mesh
No
Length in
1.94
Locknut
1
Locknut Material
Steel
O-Ring Material
Viton
NEMA Rating
6P
Minimum Operating Temperature F
-4
Minimum Operating Temperature C
-20
Min Temperature (F)
-4
Min Temperature (C)
-20
Maximum Operating Temperature F
221
Maximum Knockout Size (IN)
0.906
Maximum Knock Out Size in
0.906
MANUFACTURER
NSI Industries
Mating Thread Size 1
7/8-16 UNS
Mating Thread Size 2
1/2-14 NPT
Max Temperature (C)
105
Max Temperature (F)
221
Additional Search Tags
6 Pole 12" A-sMALE 90 REC (106AU0010M)
Current Rating amps
8
REMKE Categories
Industrial Molded Connectors>Mini Link (7/8) Connectors & Cordsets>Mini 7/8 Receptacles
RF EMI Protection
0
Series Attributes
Not available at this time.
