REMKE

104PF0010MHT

REMKE | 1-PF0010MHT | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

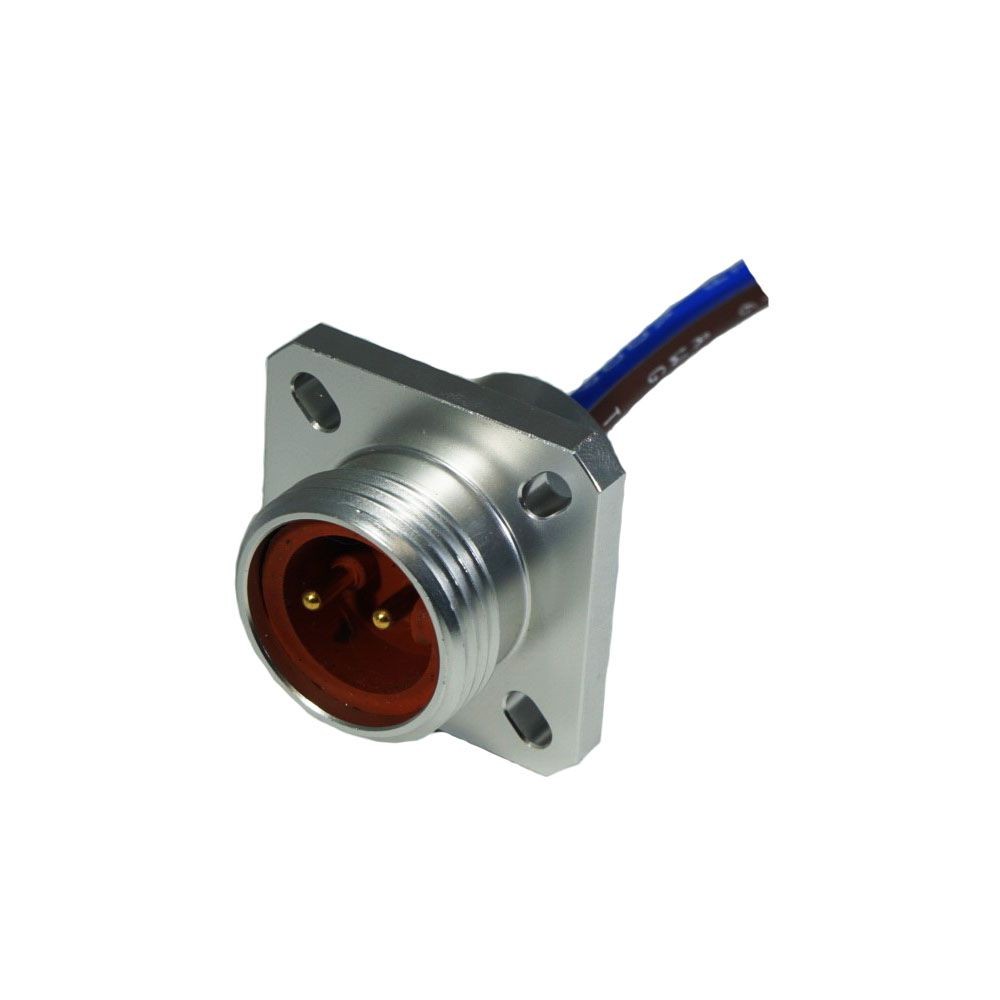

Mini-Link Receptacle, Hi-Temp silicone, Male Flange Mount, 4 pole, 1'. Remke Part Number: 104PF0010MHT UPC Code (785411042428)

$47.70

Min: 1  Mult: 1

Product Attributes


Click Here

BRAND

Remke

Photo-M1

Click Here

PRODUCT LENGTH (IN)

1.07

Maximum Operating Temperature C

180

PRODUCT GROUP

Industrial Power Cordsets

RFEMI Protection

No

Receptacle Lead Length

1

Receptacle Lead Jacket Material

Silicone

Receptacle Configuration

Male Flange Mount

REACH Compliant

1

Product Photo

Click Here

Pin Count (Number of Poles)

4

PRODUCT NUMBER

104PF0010MHT

PRODUCT LINE

Micro and Mini Connectors

PRODUCT CATEGORY

Molded Connectors and Cordsets

RoHS Compliant

TRUE

Shell Material

Machined Aluminum

Wire Gauge

AWG 16.00

WARRANTY

1 Year

Voltage Rating DC

600

Voltage Rating AC

600

Voltage Rating (DC)

600

Voltage Rating (AC)

600

UPC

785411042428

UNSPSC

32151905

TITLE

Mini-Link Receptacle, Hi-Temp silicone, Male Flange Mount, 4 pole, 1'

Thread 1

7/8-16 UNS

Temperature Application

High Temperature

SKU

104PF0010MHT

Shielding Braiding

0

Shell Plating

Black Anodized

Wiring Color Code

Auto CC

Min Temperature (F)

-58

Parent Category

Remke Products, Micro and Mini Connectors

Is Quote Only

FALSE

IS ACTIVE

TRUE

IP Rating

IP67

Insert Material

Silicone

Included O-Ring

Yes

Included Locknut

No

Has Approval

FALSE

GTIN

785411042428

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

10

COUNTRY OF ORIGIN

US

Competitors

7.85411E+11

Additional Title

Mini-Link Receptacle, Hi-Temp silicone, Male Flange Mount, 4 pole, 1'

Length in

1.07

Locknut

0

MANUFACTURER

NSI Industries

ORing Material

Viton

ORing

1

O-Ring Material

Viton

NEMA Rating

6P

Minimum Operating Temperature F

-58

Minimum Operating Temperature C

-50

Min Temperature (C)

-50

Maximum Operating Temperature F

356

Max Temperature (F)

356

Max Temperature (C)

180

Mating Thread Size 1

7/8-16 UNS

Additional Strain Relief Mesh

No

Current Rating amps

10

REMKE Categories

Industrial Molded Connectors>Mini Link (7/8) Connectors & Cordsets>Mini 7/8 Receptacles

RF EMI Protection

0
