Price List
104P0010M
Factory Lead Time: TBD
RoHs Compliant

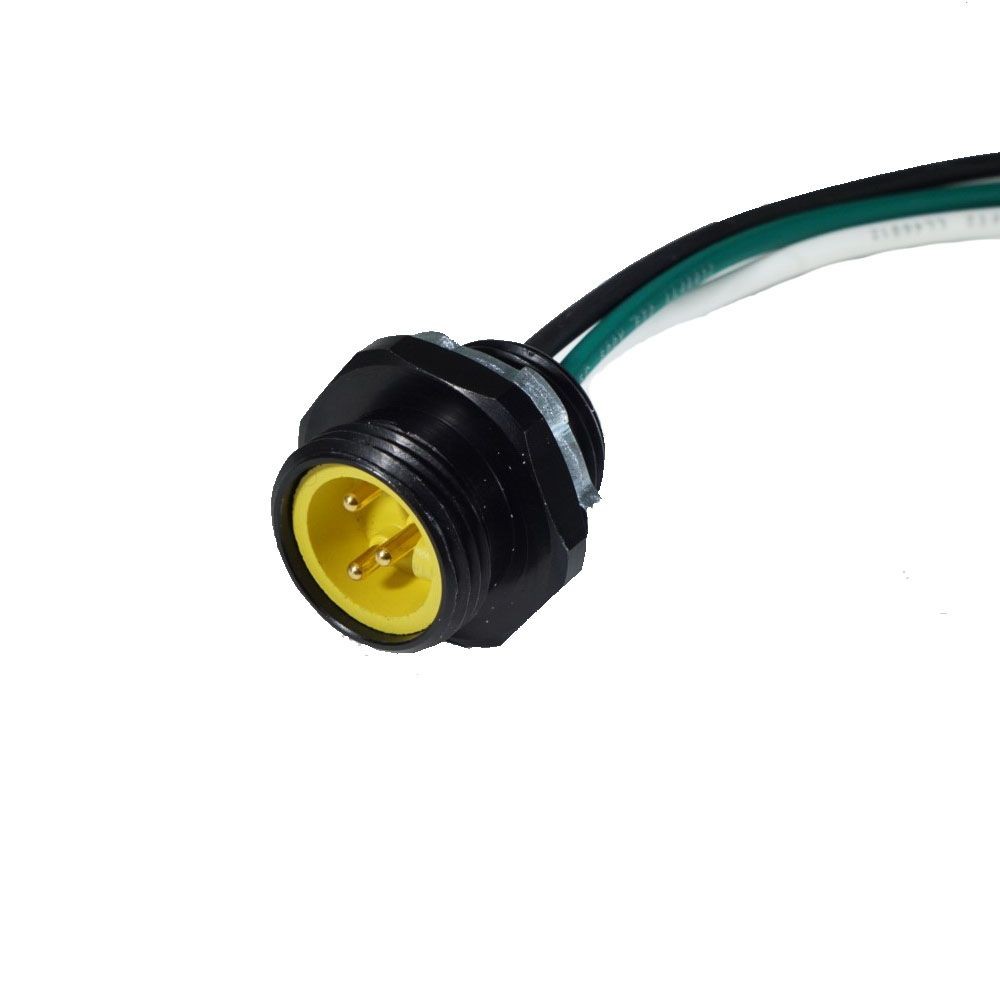

Mini-Link Receptacle, Male, 4 pole, 1'. Remke Part Number: 104P0010M UPC Code (785411432168)
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
SPECSHEET-1
BRAND
Remke
Photo-M1
PRODUCT LENGTH (IN)
1.07
Maximum Operating Temperature C
105
Wiring Color Code
Auto CC
Receptacle Configuration
Male Straight
Receptacle Lead Jacket Material
PVC
Receptacle Lead Length
1
RFEMI Protection
No
REACH Compliant
1
Product Photo
PRODUCT NUMBER
104P0010M
PRODUCT LINE
Micro and Mini Connectors
PRODUCT GROUP
Industrial Power Cordsets
PRODUCT CATEGORY
Molded Connectors and Cordsets
Pin Count (Number of Poles)
4
Parent Category
Remke Products, Micro and Mini Connectors
RoHS Compliant
TRUE
Search Description
4 Pole 12" MALE STR REC
Wire Gauge
AWGÂ 16.00
WARRANTY
1 Year
Voltage Rating DC
600
Voltage Rating AC
600
Voltage Rating (DC)
600
Voltage Rating (AC)
600
UPC
785411432168
UNSPSC
32151905
TITLE
Mini-Link Receptacle, Male, 4 pole, 1'
Thread 2
1/2-14 NPT
Thread 1
7/8-16 UNS
Temperature Application
Standard Temperature
SKU
104P0010M
Shielding Braiding
0
Shell Plating
Black Anodized
Shell Material
Machined Aluminum
ORing Material
Viton
ORing
1
KEYWORDS
4 Pole 12" MALE STR REC
Is Quote Only
FALSE
IS ACTIVE
TRUE
IP Rating
IP67
Insert Material
PVC
Included O-Ring
Yes
Included Locknut
Yes
Has Approval
FALSE
GTIN
785411432168
DATE LAST UPDATED
3/20/24
Current Rating (AMPS)
10
CSA Standard
E165657
COUNTRY OF ORIGIN
US
Competitors
41103,5000110-10,HB1401SB,RSF40-639/1F,RSF46-.3M,785411432168
Additional Title
Mini-Link Receptacle, Male, 4 pole, 1'
Additional Strain Relief Mesh
No
Length in
1.07
Locknut
1
Locknut Material
Steel
O-Ring Material
Viton
NEMA Rating
6P
Minimum Operating Temperature F
-4
Minimum Operating Temperature C
-20
Min Temperature (F)
-4
Min Temperature (C)
-20
Maximum Operating Temperature F
221
Maximum Knockout Size (IN)
0.906
Maximum Knock Out Size in
0.906
MANUFACTURER
NSI Industries
Mating Thread Size 1
7/8-16 UNS
Mating Thread Size 2
1/2-14 NPT
Max Temperature (C)
105
Max Temperature (F)
221
Additional Search Tags
4 Pole 12" MALE STR REC
Current Rating amps
10
REMKE Categories
Industrial Molded Connectors>Mini Link (7/8) Connectors & Cordsets>Mini 7/8 Receptacles
RF EMI Protection
0
Series Attributes
Not available at this time.
