REMKE

103P0010MHT

REMKE | 10-P0010MHT | Molded Circular
green-check-icon Total Stock: 2
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

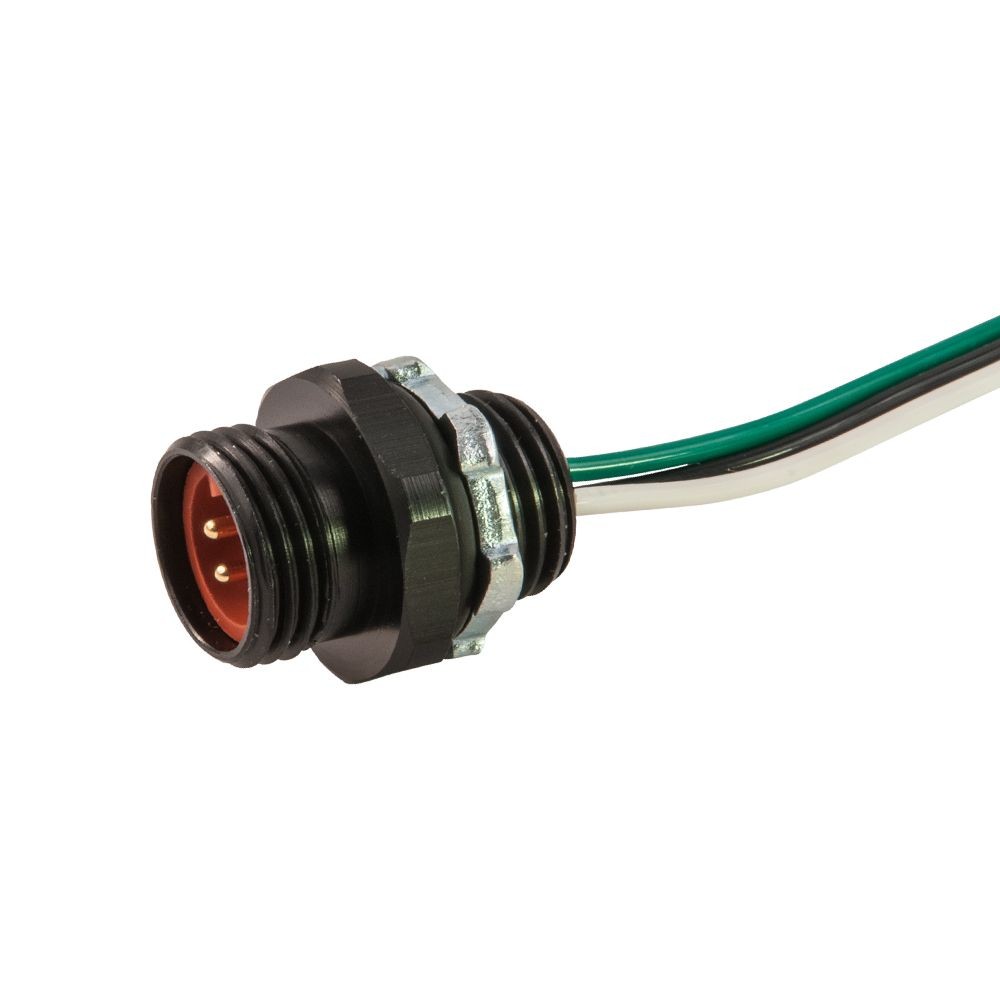

Mini-Link Receptacle, Hi-Temp silicone, Male, 3 pole, 1'. Remke Part Number: 103P0010MHT UPC Code (785411429175)

$23.70

Min: 1  Mult: 1

Product Attributes


Click Here

BRAND

Remke

Photo-M1

Click Here

PRODUCT LENGTH (IN)

1.07

Maximum Operating Temperature C

180

REACH Compliant

1

Receptacle Configuration

Male Straight

Receptacle Lead Jacket Material

Silicone

Receptacle Lead Length

1

RFEMI Protection

No

Product Photo

Click Here

PRODUCT NUMBER

103P0010MHT

Wiring Color Code

Auto CC

PRODUCT LINE

Micro and Mini Connectors

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

3

RoHS Compliant

TRUE

Shell Material

Machined Aluminum

Wire Gauge

AWG 16.00

WARRANTY

1 Year

Voltage Rating DC

600

Voltage Rating AC

600

Voltage Rating (DC)

600

Voltage Rating (AC)

600

UPC

785411429175

UNSPSC

32151905

TITLE

Mini-Link Receptacle, Hi-Temp silicone, Male, 3 pole, 1'

Thread 2

1/2-14 NPT

Thread 1

7/8-16 UNS

Temperature Application

High Temperature

SKU

103P0010MHT

Shielding Braiding

0

Shell Plating

Black Anodized

Parent Category

Remke Products, Micro and Mini Connectors

ORing Material

Viton

ORing

1

Locknut

1

Length in

1.07

Is Quote Only

FALSE

IS ACTIVE

TRUE

IP Rating

IP67

Insert Material

Silicone

Included O-Ring

Yes

Included Locknut

Yes

Has Approval

FALSE

GTIN

785411429175

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

13

COUNTRY OF ORIGIN

US

Competitors

7.85411E+11

Additional Title

Mini-Link Receptacle, Hi-Temp silicone, Male, 3 pole, 1'

Locknut Material

Steel

MANUFACTURER

NSI Industries

O-Ring Material

Viton

NEMA Rating

6P

Minimum Operating Temperature F

-58

Minimum Operating Temperature C

-50

Min Temperature (F)

-58

Min Temperature (C)

-50

Maximum Operating Temperature F

356

Maximum Knockout Size (IN)

0.906

Maximum Knock Out Size in

0.906

Max Temperature (F)

356

Max Temperature (C)

180

Mating Thread Size 2

1/2-14 NPT

Mating Thread Size 1

7/8-16 UNS

Additional Strain Relief Mesh

No

Current Rating amps

13

REMKE Categories

Industrial Molded Connectors>Mini Link (7/8) Connectors & Cordsets>Mini 7/8 Receptacles

RF EMI Protection

0
