REMKE

103G0060AP

REMKE | 10-G-AP | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

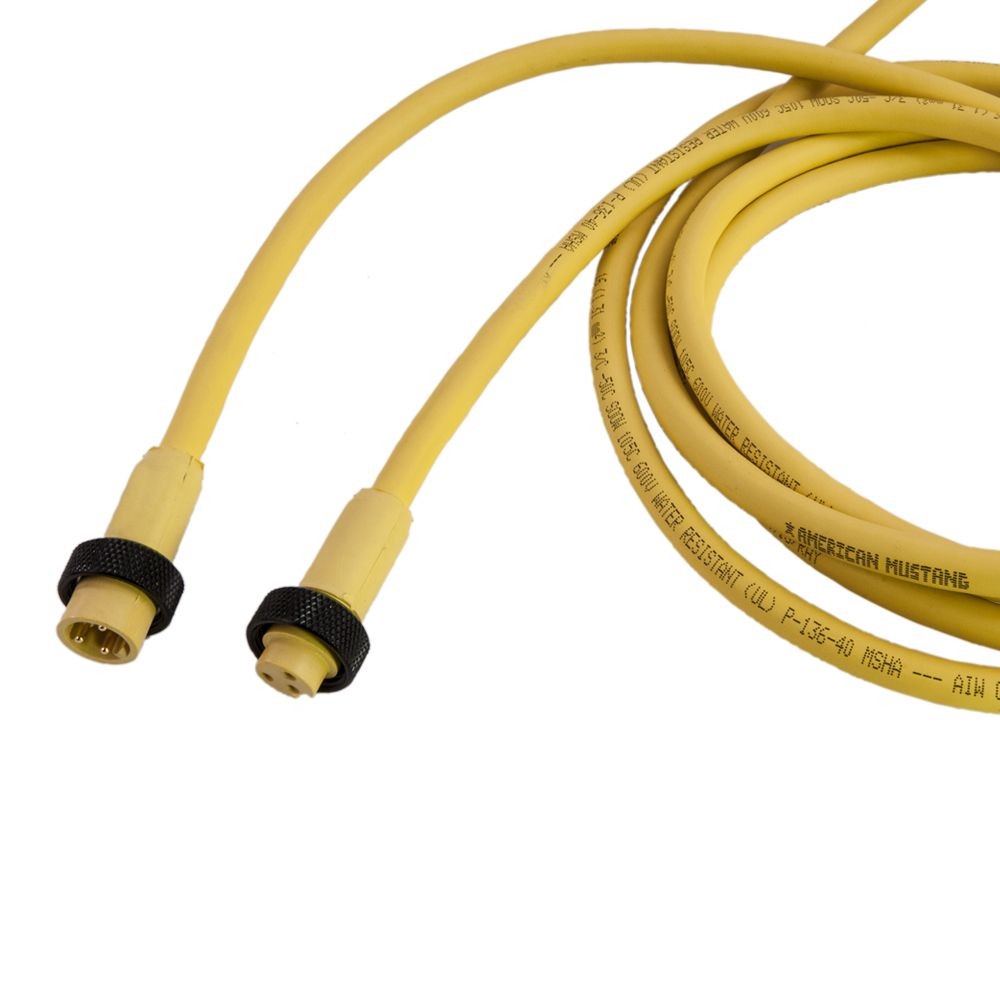

Mini-Link Cable Assembly, PVC, Male/Female, 3 pole, 6', 16 AWG. Remke Part Number: 103G0060AP UPC Code (785411800738)

$43.90

Min: 1  Mult: 1

Product Attributes

BRAND

Remke


Click Here

Photo-M1

Click Here

PRODUCT LENGTH (IN)

2.24

PRODUCT WIDTH (IN)

1

Maximum Operating Temperature C

180

Cord set Configuration

Straight/Straight

PRODUCT NUMBER

103G0060AP

Product Photo

Click Here

Wiring Color Code

Auto CC

PRODUCT WIDTH (IN) 2

1

REACH Compliant

1

PRODUCT LINE

Micro and Mini Connectors

Mating Thread Size 2

7/8-16 UNS

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

3

Parent Category

Remke Products, Micro and Mini Connectors

ORing

0

RFEMI Protection

No

RoHS Compliant

TRUE

Search Description

3 pole 6' M/F SET

Wire Gauge

AWG 16.00

Width in 2

1

Width in

1

WARRANTY

1 Year

Voltage Rating DC

600

Voltage Rating AC

600

Voltage Rating (DC)

600

Voltage Rating (AC)

600

UPC

785411800738

UNSPSC

32151904

TITLE

Mini-Link Cable Assembly, PVC, Male/Female, 3 pole, 6', 16 AWG

Thread 2

7/8-16 UNS

Thread 1

7/8-16 UNS

Temperature Application

Standard Temperature

SKU

103G0060AP

Shielding Braiding

0

NEMA Rating

6P

Molded Connector Type

Dual Cordset Plug/Socket

IP Rating

IP67

Insert Material

PVC

Included O-Ring

No

Included Locknut

No

Has Approval

FALSE

GTIN

785411800738

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

13

CSA Standard

E165657

Coupling Nut Plating

Black Anodized

Coupling Nut Material

Aluminum

COUNTRY OF ORIGIN

US

Cordset Configuration

Straight/Straight

Competitors

41018,5000109-26S,HE1306SA,RSRK301-638/6F,RYMRKM36-2M,785411800738

Additional Title

Mini-Link Cable Assembly, PVC, Male/Female, 3 pole, 6', 16 AWG

Additional Strain Relief Mesh

No

IS ACTIVE

TRUE

Is Quote Only

FALSE

Minimum Operating Temperature F

-58

Minimum Operating Temperature C

-50

Min Temperature (F)

-58

Min Temperature (C)

-50

Maximum Operating Temperature F

356

Max Temperature (F)

356

Max Temperature (C)

180

Mating Thread Size 1

7/8-16 UNS

Material

PVC

MANUFACTURER

NSI Industries

Locknut

0

Length in 2

2.24

Length in

2.24

KEYWORDS

3 pole 6' M/F SET

Additional Search Tags

3 pole 6' M/F SET

Current Rating amps

13

REMKE Categories

Industrial Molded Connectors>Mini Link (7/8) Connectors & Cordsets>Mini 7/8 Cordsets & Cable Assemblies

RF EMI Protection

0
