REMKE

103B0030AHT

REMKE | 10-B-AHT | Molded Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

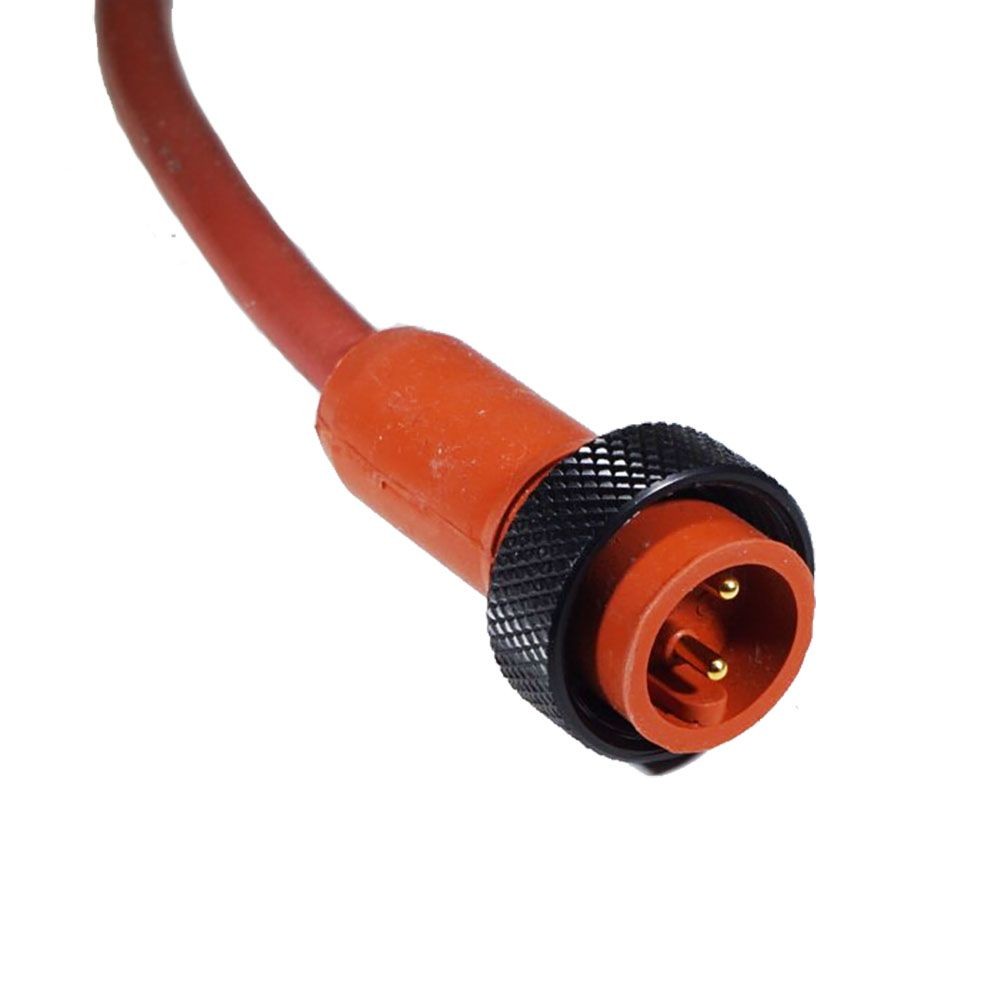

Mini-Link Plug Assembly, Hi-Temp silicone, Male, 3 pole, 3', 16 AWG. Remke Part Number: 103B0030AHT UPC Code (785411031767)

$56.60

Min: 1  Mult: 1

Product Attributes

BRAND

Remke


Click Here

PRODUCT LENGTH (IN)

1.92

Photo-M1

Click Here

PRODUCT WIDTH (IN)

1

Maximum Operating Temperature C

180

Cord set Configuration

Straight

REACH Compliant

1

Product Photo

Click Here

PRODUCT NUMBER

103B0030AHT

PRODUCT LINE

Micro and Mini Connectors

Wiring Color Code

Auto CC

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

3

Parent Category

Remke Products, Micro and Mini Connectors

ORing Material

Viton

RFEMI Protection

No

RoHS Compliant

TRUE

Wire Gauge

AWG 16.00

Width in

1

WARRANTY

1 Year

Voltage Rating DC

600

Voltage Rating AC

600

Voltage Rating (DC)

600

Voltage Rating (AC)

600

UPC

785411031767

UNSPSC

32151902

TITLE

Mini-Link Plug Assembly, Hi-Temp silicone, Male, 3 pole, 3', 16 AWG

Thread 1

7/8-16 UNS

Temperature Application

High Temperature

SKU

103B0030AHT

Shielding Braiding

0

ORing

1

O-Ring Material

Viton

NEMA Rating

6P

IP Rating

IP67

Insert Material

Silicone

Included O-Ring

Yes

Included Locknut

No

Has Approval

FALSE

GTIN

785411031767

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

13

Coupling Nut Plating

Black Anodized

Coupling Nut Material

Aluminum

COUNTRY OF ORIGIN

US

Cordset Configuration

Straight

Competitors

7.85411E+11

Additional Title

Mini-Link Plug Assembly, Hi-Temp silicone, Male, 3 pole, 3', 16 AWG

IS ACTIVE

TRUE

Additional Strain Relief Mesh

No

Min Temperature (C)

-20

Maximum Operating Temperature F

356

Max Temperature (F)

356

Max Temperature (C)

180

Minimum Operating Temperature C

-20

Mating Thread Size 1

7/8-16 UNS

Material

Silicone Rubber

MANUFACTURER

NSI Industries

Locknut

0

Length in

1.92

Is Quote Only

FALSE

Minimum Operating Temperature F

-4

Min Temperature (F)

-4

Current Rating amps

13

REMKE Categories

Industrial Molded Connectors>Mini Link (7/8) Connectors & Cordsets>Mini 7/8 Cordsets & Cable Assemblies

RF EMI Protection

0
