filter--iconPrice List
REMKE

M803CFW7

REMKE | M80-CFW7 | Circular
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

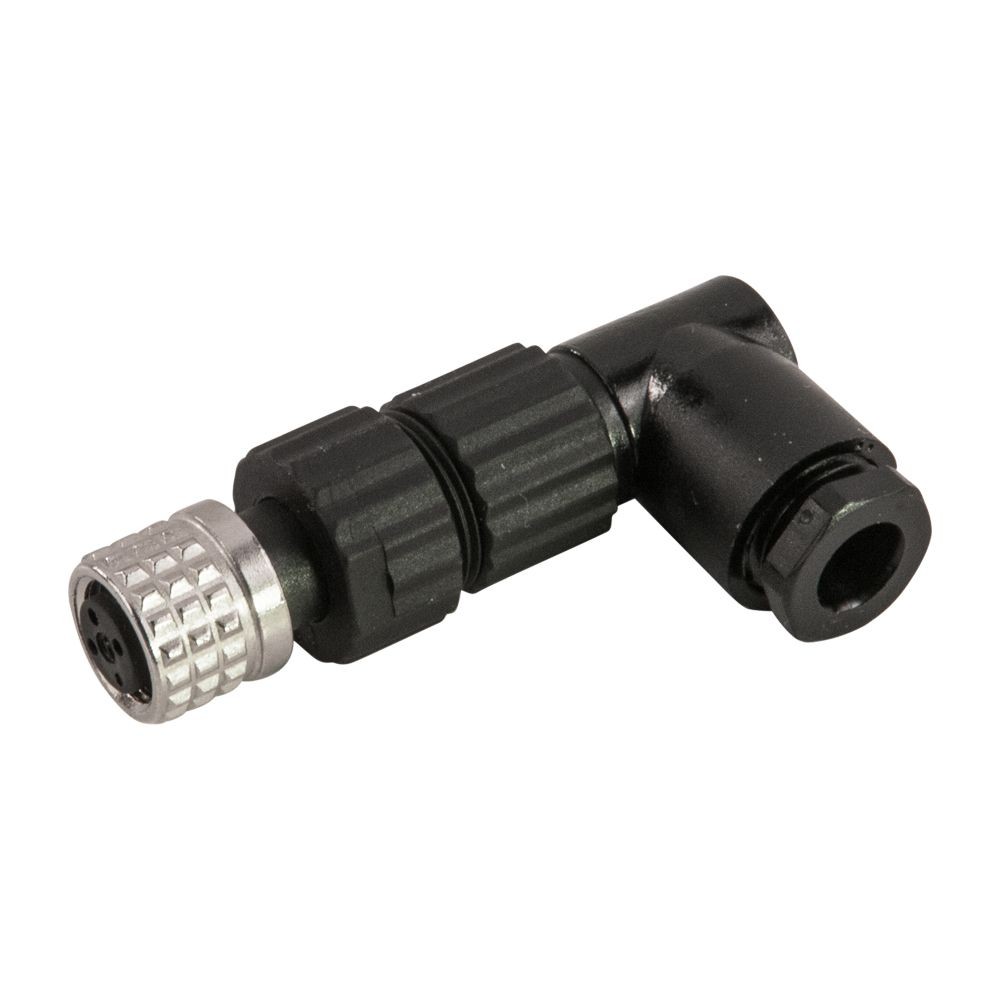

Pico-Link Field Attachable Connector, 3 pole, Female 90 deg, PG7 entry. Remke Part Number: M803CFW7 UPC Code (785411815060)

$23.60

Min: 1  Mult: 1

Product Attributes

BRAND

Remke


Click Here

PRODUCT WIDTH (IN)

0.51

PRODUCT LENGTH (IN)

1.63

Photo-M1

Click Here

Maximum Operating Temperature C

70

Cord set Configuration

90 Degree

Parent Category

Pico Connectors, Remke Products

Product Photo

Click Here

PRODUCT NUMBER

M803CFW7

PRODUCT LINE

Pico Connectors

ORing

1

PRODUCT GROUP

Industrial Power Cordsets

PRODUCT CATEGORY

Molded Connectors and Cordsets

Pin Count (Number of Poles)

3

ORing Material

Nitrile Rubber

Width in

0.51

REACH Compliant

1

WARRANTY

1 Year

Voltage Rating DC

60

Voltage Rating AC

60

Voltage Rating (DC)

60

Voltage Rating (AC)

60

UPC

785411815060

UNSPSC

32151902

TITLE

Pico-Link Field Attachable Connector, 3 pole, Female 90 deg, PG7 entry

SKU

M803CFW7

Shielding Braiding

0

RoHS Compliant

TRUE

RFEMI Protection

No

Minimum Operating Temperature F

-13

Minimum Operating Temperature C

-25

Included Locknut

No

Has Approval

FALSE

GTIN

785411815060

DATE LAST UPDATED

3/20/24

Current Rating (AMPS)

4

Coupling Nut Plating

Nickel Plated

Coupling Nut Material

Brass

COUNTRY OF ORIGIN

CN

Cordset Configuration

90 Degree

Competitors

7.85412E+11

Additional Title

Pico-Link Field Attachable Connector, 3 pole, Female 90 deg, PG7 entry

Included O-Ring

Yes

Insert Material

Nylon

IP Rating

IP67

Min Temperature (F)

-13

Min Temperature (C)

-25

Maximum Operating Temperature F

158

Max Temperature (F)

158

Max Temperature (C)

70

Material

Nylon

MANUFACTURER

NSI Industries

Locknut

0

Length in

1.63

Is Quote Only

TRUE

IS ACTIVE

TRUE

Additional Strain Relief Mesh

No

Current Rating amps

4

RF EMI Protection

0

Not available at this time.
