Price List
3400008
Factory Lead Time: TBD
RoHs Compliant
Mini-Link Dist Box, 8 Outlet, 5M cable. Remke Part Number: 3400008 UPC Code (785411805092)
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
SPECSHEET-1
Photo-1
BRAND
Remke
Photo-M1
Maximum Operating Temperature C
105
PRODUCT LINE
Micro and Mini Connectors
PRODUCT NUMBER
3400008
Product Photo
PRODUCT GROUP
Industrial Power Cordsets
PRODUCT CATEGORY
Molded Connectors and Cordsets
Port Shell Material boxes
Anodized Aluminum
Wiring Color Code
Auto CC
Parent Category
Remke Products, Micro and Mini Connectors
ORing Material
Nitrile Rubber
ORing
1
REACH Compliant
1
RFEMI Protection
No
RoHS Compliant
TRUE
WARRANTY
1 Year
Voltage Rating DC
600
Voltage Rating AC
600
Voltage Rating (DC)
600
Voltage Rating (AC)
600
UPC
785411805092
UNSPSC
32151903
TITLE
Mini-Link Dist Box, 8 Outlet, 5M cable
Temperature Application
Standard Temperature
Sleeve Material boxes
Stainless Steel
SKU
3400008
Shielding Braiding
0
Search Description
Mini-Port Bx 8Port sd-ent cbl 5M
Number of Outlets
8
NEMA Rating
6P
Additional Search Tags
Mini-Port Bx 8Port sd-ent cbl 5M
Included O-Ring
Yes
Included Locknut
No
Housing Material boxes
Polyester
Has Approval
FALSE
GTIN
785411805092
Insert Material
Polycarbonate
DATE LAST UPDATED
3/20/24
Current Rating Per Unit (AMPS)
7
COUNTRY OF ORIGIN
US
Additional Title
#N/A
Additional Strain Relief Mesh
No
IP Rating
IP67
Min Temperature (C)
-20
Min Temperature (F)
-4
Maximum Operating Temperature F
221
Max Temperature (F)
221
Minimum Operating Temperature C
-20
Minimum Operating Temperature F
-4
Max Temperature (C)
105
MANUFACTURER
NSI Industries
Locknut
0
Label Material
Polyester
KEYWORDS
Mini-Port Bx 8Port sd-ent cbl 5M
Is Quote Only
TRUE
IS ACTIVE
TRUE

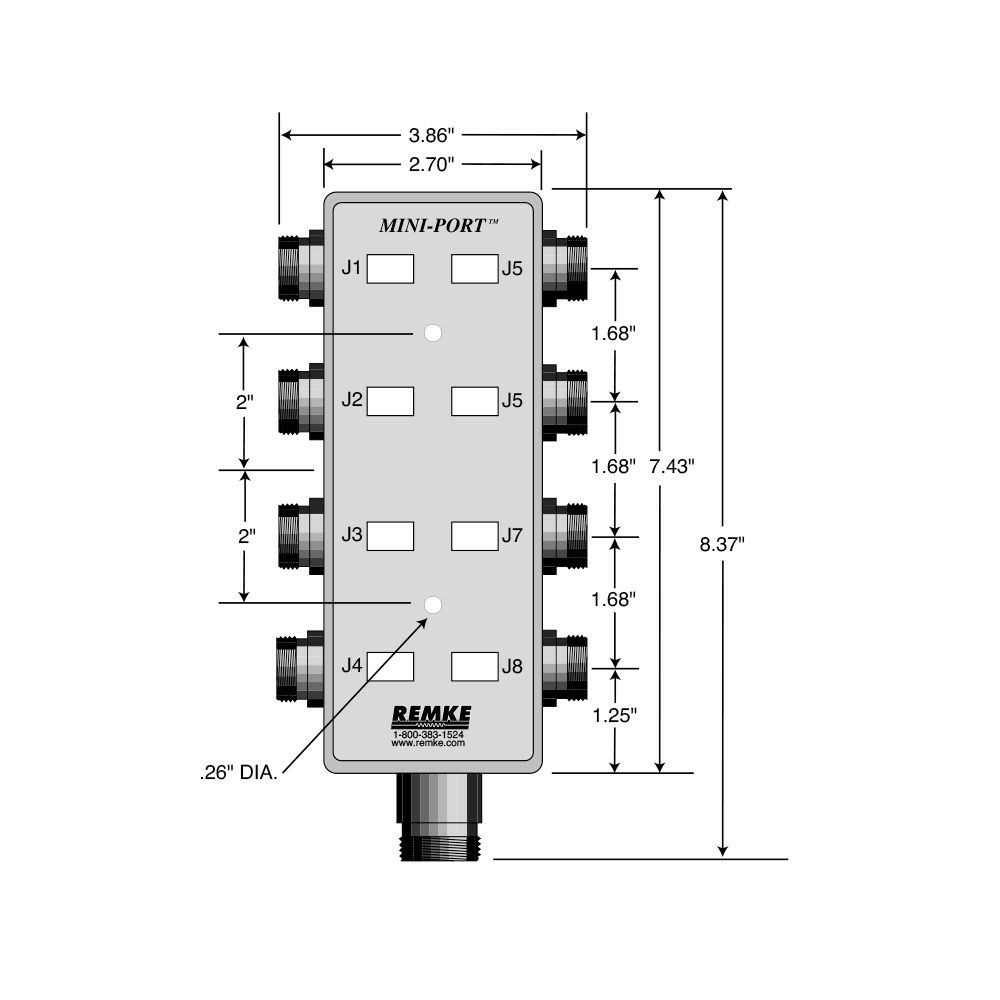

Distribution Box Length in
8.37
Distribution Box Width in
3.86
Feed Type boxes
Cable (5M)
Current Rating Per Unit amps
7
RF EMI Protection
0
Series Attributes
Not available at this time.
