Price List
3400001
Factory Lead Time: TBD
RoHs Compliant
Mini-Link Dist Box, 4 Outlet, connector feed. Remke Part Number: 3400001 UPC Code (785411805023)
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
SPECSHEET-1
BRAND
Remke
Photo-M1
Maximum Operating Temperature C
105

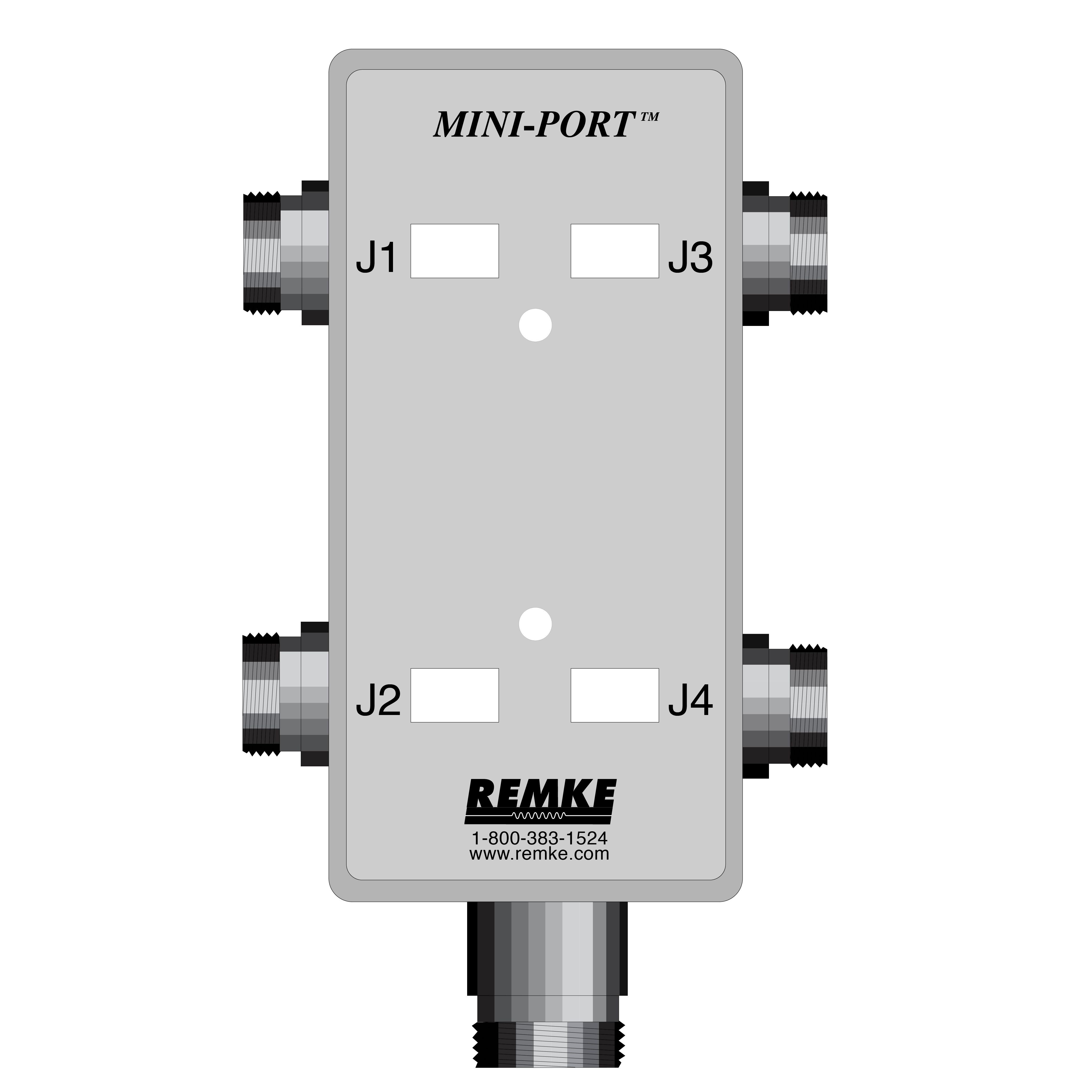

Product Photo
PRODUCT NUMBER
3400001
REACH Compliant
1
PRODUCT LINE
Micro and Mini Connectors
Wiring Color Code
Auto CC
PRODUCT GROUP
Industrial Power Cordsets
PRODUCT CATEGORY
Molded Connectors and Cordsets
Port Shell Material boxes
Anodized Aluminum
Parent Category
Remke Products, Micro and Mini Connectors
ORing Material
Nitrile Rubber
ORing
1
RFEMI Protection
No
RoHS Compliant
TRUE
WARRANTY
1 Year
Voltage Rating DC
600
Voltage Rating AC
600
Voltage Rating (DC)
600
Voltage Rating (AC)
600
UPC
785411805023
UNSPSC
32151903
TITLE
Mini-Link Dist Box, 4 Outlet, connector feed
Temperature Application
Standard Temperature
Sleeve Material boxes
Stainless Steel
SKU
3400001
Shielding Braiding
0
Search Description
Mini-Port Bx 4Port sd-ent conn
Number of Outlets
4
NEMA Rating
6P
Minimum Operating Temperature F
-4
Additional Search Tags
Mini-Port Bx 4Port sd-ent conn
Included O-Ring
Yes
Included Locknut
No
Housing Material boxes
Polyester
Has Approval
FALSE
GTIN
785411805023
Insert Material
Polycarbonate
DATE LAST UPDATED
3/20/24
Current Rating Per Unit (AMPS)
7
COUNTRY OF ORIGIN
US
Additional Title
#N/A
Additional Strain Relief Mesh
No
IP Rating
IP67
Maximum Operating Temperature F
221
Min Temperature (C)
-20
Max Temperature (F)
221
Max Temperature (C)
105
Min Temperature (F)
-4
Minimum Operating Temperature C
-20
MANUFACTURER
NSI Industries
Locknut
0
Label Material
Polyester
KEYWORDS
Mini-Port Bx 4Port sd-ent conn
Is Quote Only
TRUE
IS ACTIVE
TRUE
Distribution Box Length in
6.1
Distribution Box Width in
3.86
Feed Type boxes
Connector
Current Rating Per Unit amps
7
RF EMI Protection
0
Series Attributes
Not available at this time.
