103AFW9
Factory Lead Time: TBD
RoHs Compliant

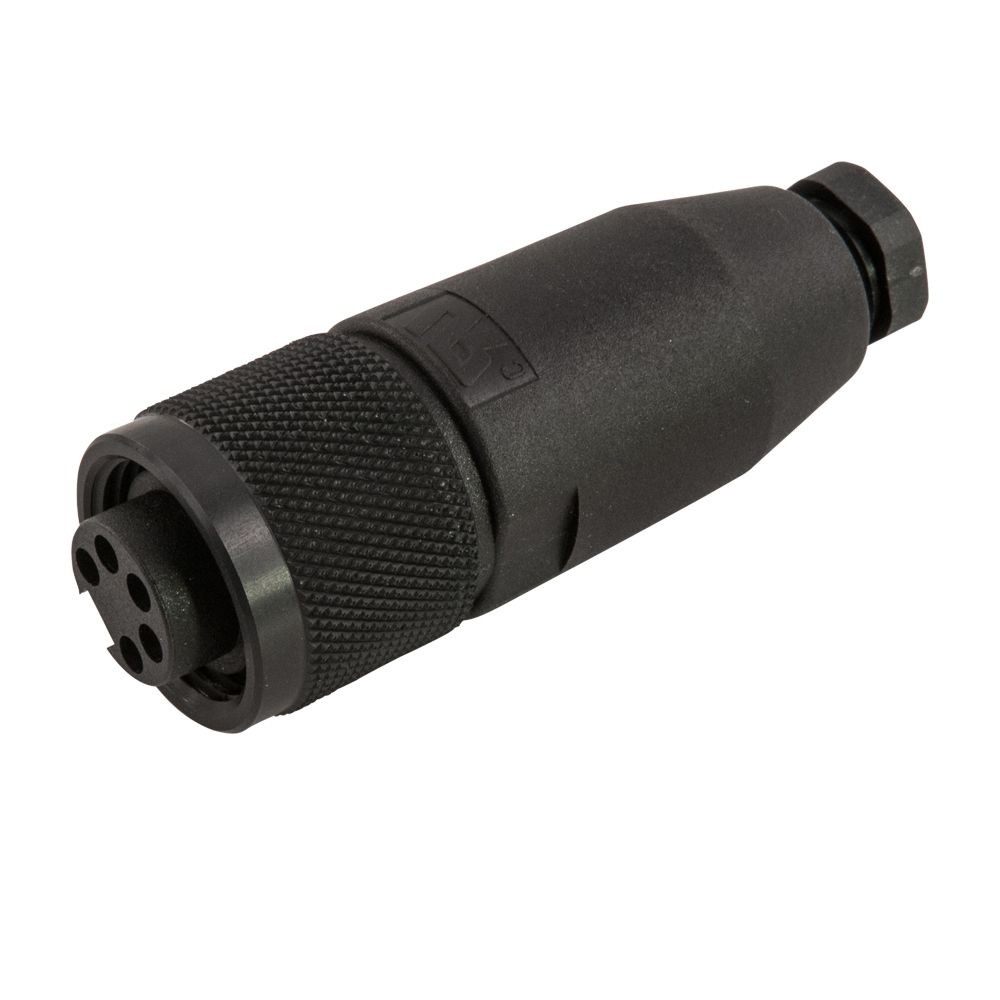

Mini-Link Field Attachable Connector, 3 pole, Female, PG9 entry. Remke Part Number: 103AFW9 UPC Code (785411038704)
Hawk Electronics
Factory Lead Time: TBD
RoHs Compliant
Product Attributes
BRAND
Remke
Photo-M1
PRODUCT LENGTH (IN)
3.31
PRODUCT WIDTH (IN)
1.06
Maximum Operating Temperature C
90
Cord set Configuration
Straight
Product Photo
PRODUCT NUMBER
103AFW9
PRODUCT LINE
Micro and Mini Connectors
Width in
1.06
PRODUCT GROUP
Industrial Power Cordsets
PRODUCT CATEGORY
Molded Connectors and Cordsets
Pin Count (Number of Poles)
3
Parent Category
Remke Products, Micro and Mini Connectors
ORing
0
REACH Compliant
1
RFEMI Protection
No
WARRANTY
1 Year
Voltage Rating DC
250
Voltage Rating AC
250
Voltage Rating (DC)
250
Voltage Rating (AC)
250
UPC
785411038704
UNSPSC
32151908
TITLE
Mini-Link Field Attachable Connector, 3 pole, Female, PG9 entry
Thread 1
7/8-16 UN
Temperature Application
Standard Temperature
SKU
103AFW9
Shielding Braiding
0
RoHS Compliant
TRUE
NEMA Rating
6P
Minimum Operating Temperature F
-4
Minimum Operating Temperature C
-20
Included O-Ring
No
Included Locknut
No
Has Approval
FALSE
GTIN
785411038704
DATE LAST UPDATED
3/20/24
Current Rating (AMPS)
12
Coupling Nut Plating
Black Anodized
Coupling Nut Material
Aluminum
COUNTRY OF ORIGIN
CN
Cordset Configuration
Straight
Competitors
7.85411E+11
Additional Title
Mini-Link Field Attachable Connector, 3 pole, Female, PG9 entry
Insert Material
Nylon
Additional Strain Relief Mesh
No
Min Temperature (F)
-4
Min Temperature (C)
-20
Maximum Operating Temperature F
194
Max Temperature (F)
194
Max Temperature (C)
90
Mating Thread Size 1
7/8-16 UN
Material
Nylon
MANUFACTURER
NSI Industries
Locknut
0
Length in
3.31
Is Quote Only
FALSE
IS ACTIVE
TRUE
IP Rating
IP67
Current Rating amps
12
RF EMI Protection
0
Series Attributes
Not available at this time.
