PLF1M-C

Panduit | In Stock | Cable Ties
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

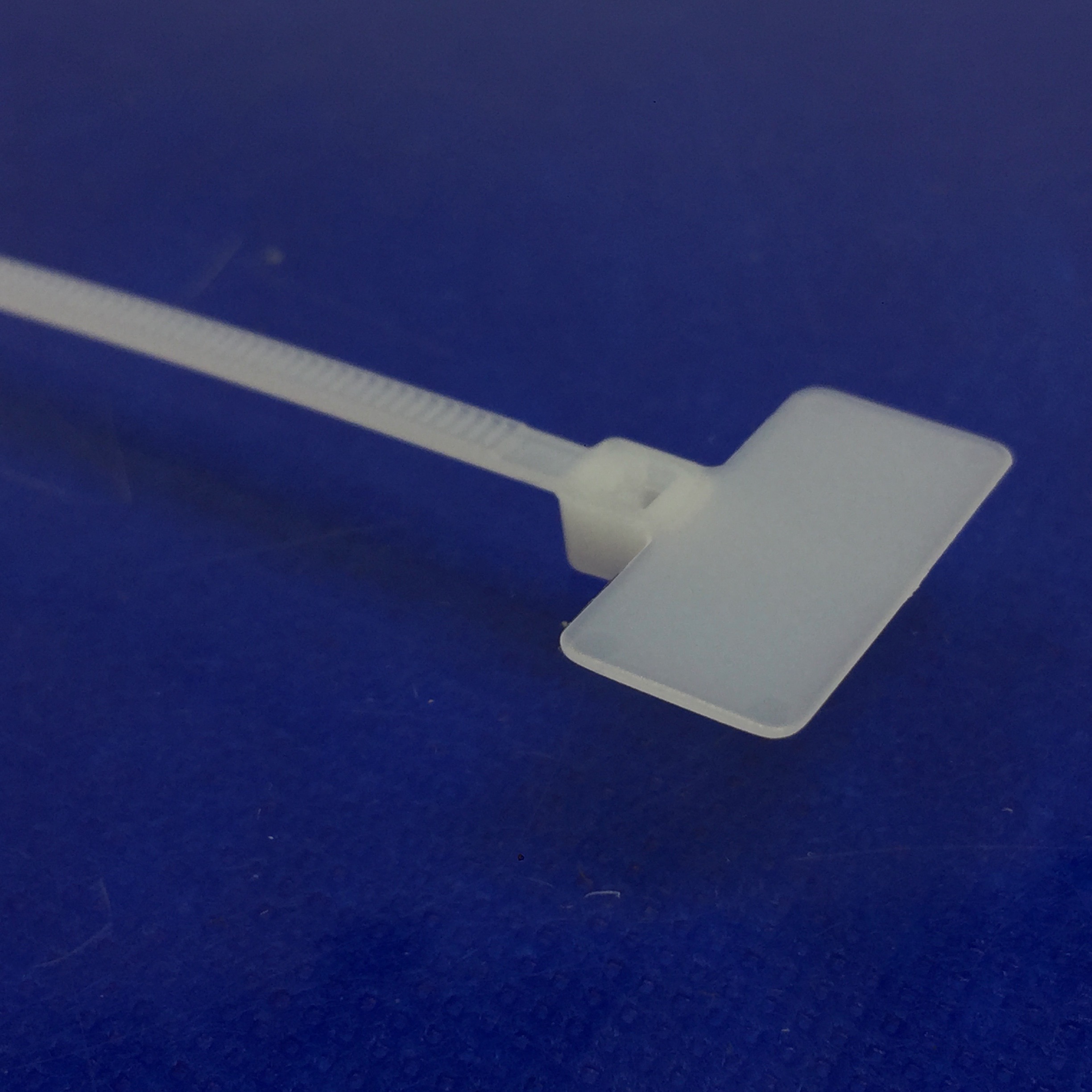

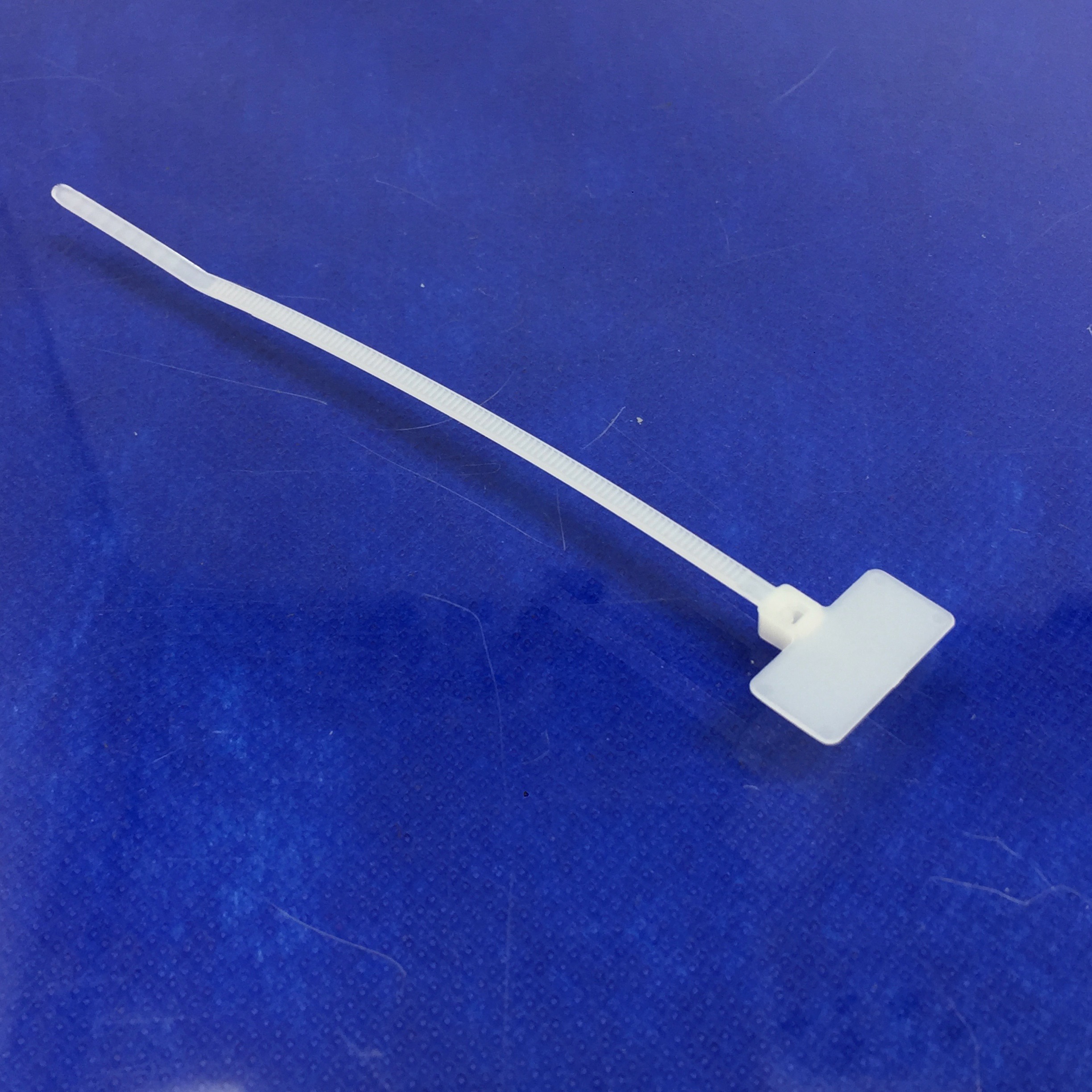

Factory Standard Pack = 100: Marker Tie, Flag Style, 4.3 Inches (109 mm) Length, Miniature, Nylon, Natural. For indoor use. Used to fasten and identify bundles at the same time. One-piece construction for consistent performance and reliability. Can be marked with Panduit marker pens or custom imprinted with text, symbols or trademarks using Panduit Custom Hot Stamping Service. Curved tip is easy to pick up from flat surfaces and allows faster initial threading.: Prices available while supplies l

$0.22

Min: 1  Mult: 1

Product Attributes

Width (In.)

0.098

Stable to Vibration

No

Ship Pkg Qty 1

1

Shelf Life

1440

Sell Pack Packaging Description

BAG

Restricted Use of Hazardous Substances

N

Plenum-Rated

No

Panduit Die Color & Die No.

Flag

Operating Temperature

-76°F (-60°C) - 185°F (85°C)

MSDS Indicator

N

MSDS Doc Name

N

Min. Loop Tensile Strength Lbs. (N)

18 (80)

Min. Loop Tensile Strength (N)

80

Standards

UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854

Std Carton Height

5.75

Std Carton Length

10.25

UV Resistant

false

UNSPSC

39121703

Unit Weight

.002

Unit Volume

.000226

UL Recognized

No

UL Listed (File #E56854)

Yes

Tool

GTS-E, GS2B, PTS, PPTS, STS2

Thickness (In.)

0.045

Surface Treatment

Untreated

Suggested Index Terms

Cable ties, zip ties, tie-wraps

Stud Size

Yes

Std Carton Width

6.62

Min. Loop Tensile Strength (Lbs.)

18

Min. Bundle Diameter (In.)

0.06

Installation Temperature

-4°F (-20°C) - 32°F (0°C)

Head Width (In.)

0.180

Head Height (In.)

0.154

Hazardous Material

N

Environment

Indoor

CSA Certified

Yes

Cross Section

Miniature

Country of Origin Description

Singapore

Continuous Use Temperature Range

-76°F (-60°C) - 185°F (85°C)

Color

Natural

Certificate of Conformity

N

CE Marking

Yes

CE Compliant

Yes

Lead Content Indicator

N

Length (In.)

4.3

Bundle Diameter Range In. (mm)

0.06 (1.5) - 0.87 (22)

Material Grade

Polyamide PA

Max. Bundle Dia. (In.)

0.87

Material

Nylon 6.6

Master Weight

2

Master Pack Quantity

10

Max. Continuous Use Temperature

185°F (85°C)

Marker/Flag Tie Labeling Area

Adjacent to bundle

Marker Write-On Area (In.)

0.31 x 0.75

Locking Style

Locking

Material Flammability Rating

UL 94V-2

UPC

7498355309

TYPE

Locking Flag

Size

Approx 1.0"

Cross Section (IPNS)

Miniature

Screw Hole Size

None

Package Size

100

Material/Color

Nylon 6.6 / Natural

Design Feature

One-piece locking wedge provides consistent, reliable performance

Threading Force

Low - reduces operator fatigue
