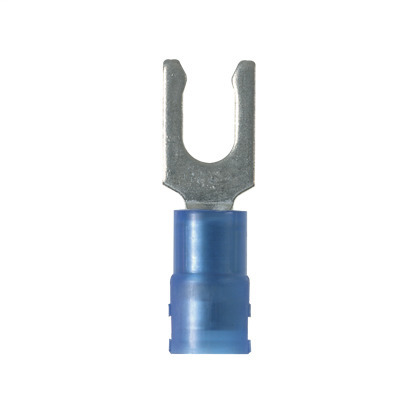

PNF14-6LF-C

Panduit | In Stock | Panduit-Electrical
green-check-icon Total Stock: 100
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
Factory Standard Pack = 100: Locking Fork Terminal, Funnel Entry, Nylon Insulated, 18 - 14 American Wire Gauge (AWG), No. 6 Stud Size. Locks in place for secure connection. Fork design provides for fast and easy installation, without the need to remove fastener. Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-

$0.86

Min: 1  Mult: 1

Product Attributes

Barrel Configuration

0.162

Standards

Yes - American Bureau of Shipping (ABS)

Std Carton Height

3.6

Std Carton Length

9.2

Std Carton Width

1.9

Stud Size In. (mm)

#6 (M3.5)

Style

Locking Fork

Surface Treatment

Tinned

Temperature Rating

221 Degrees Fahrenheit (105 Degrees Celsius)

Tool

CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500

UL 62275 Compliant (Type 2

#6

UL Listed

UL486A-486B

UL Recognized (File #E56854)

Funnel Entry

Unit Volume

.000072

Unit Weight

.0027

UNSPSC

39121409

Width (In.)

0.25

Sell Pack Packaging Description

BTL

Plating Type

Tinned

Panduit Color Code

Blue

Barrel Type

Insulation Grip Sleeve

Base Material

Copper

CE Compliant

No

CE Marking

No

Country of Origin Description

Mexico

CSA Certified

C22.2 No.65

Flammability Rating

UL 94V-2/HB

Hazardous Material

N

Insulation

Nylon

Packaging

Bottle

NAFTA Country of Origin

MX

MSDS Indicator

N

Max. Voltage Rating

600 V

Master Weight

1.35

Master Pack Quantity

5

Length (In.)

0.87

Wire Range

18 - 14 AWG

UPC

7498351362
