PMNF1-3F-C

Panduit | In Stock | Panduit-Electrical
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

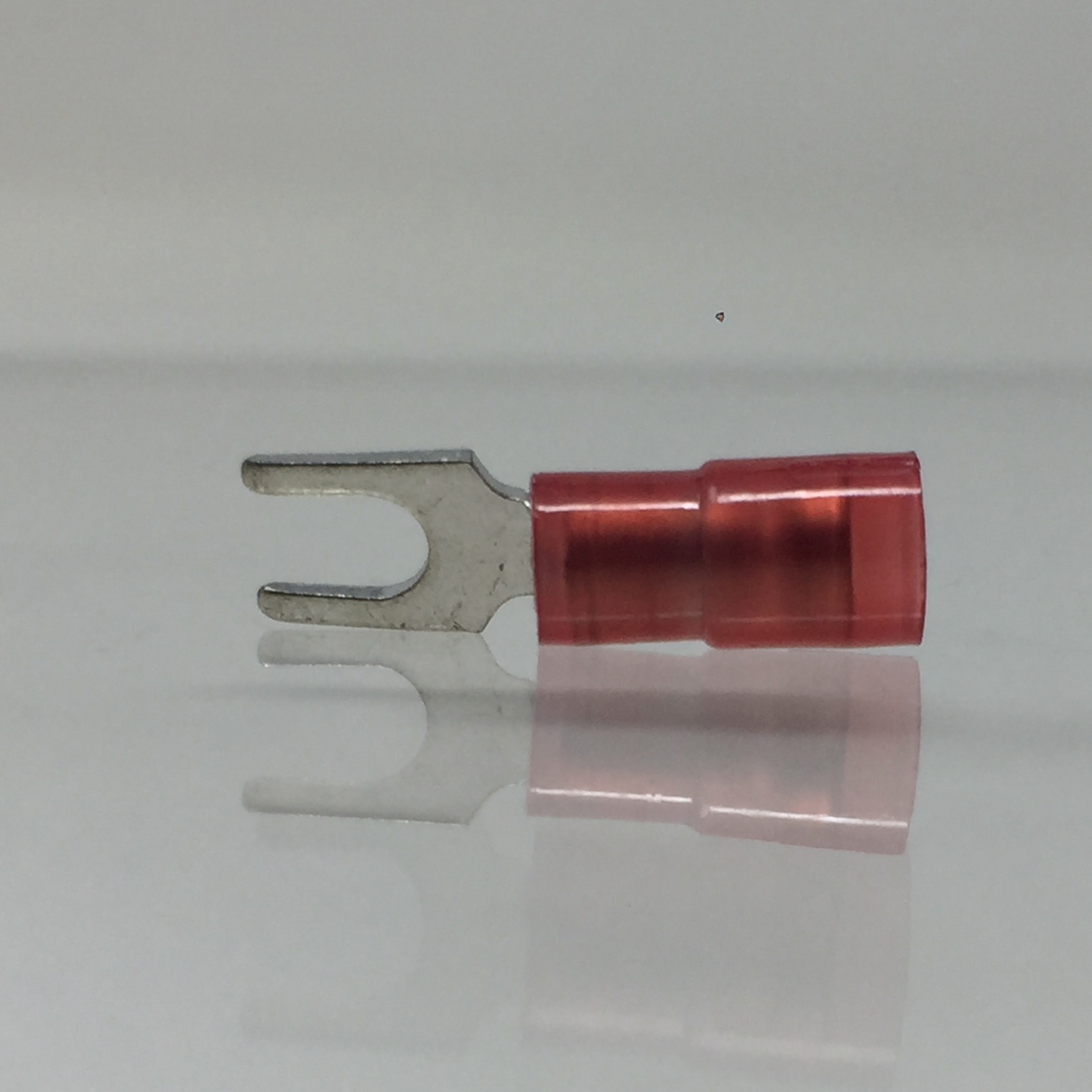

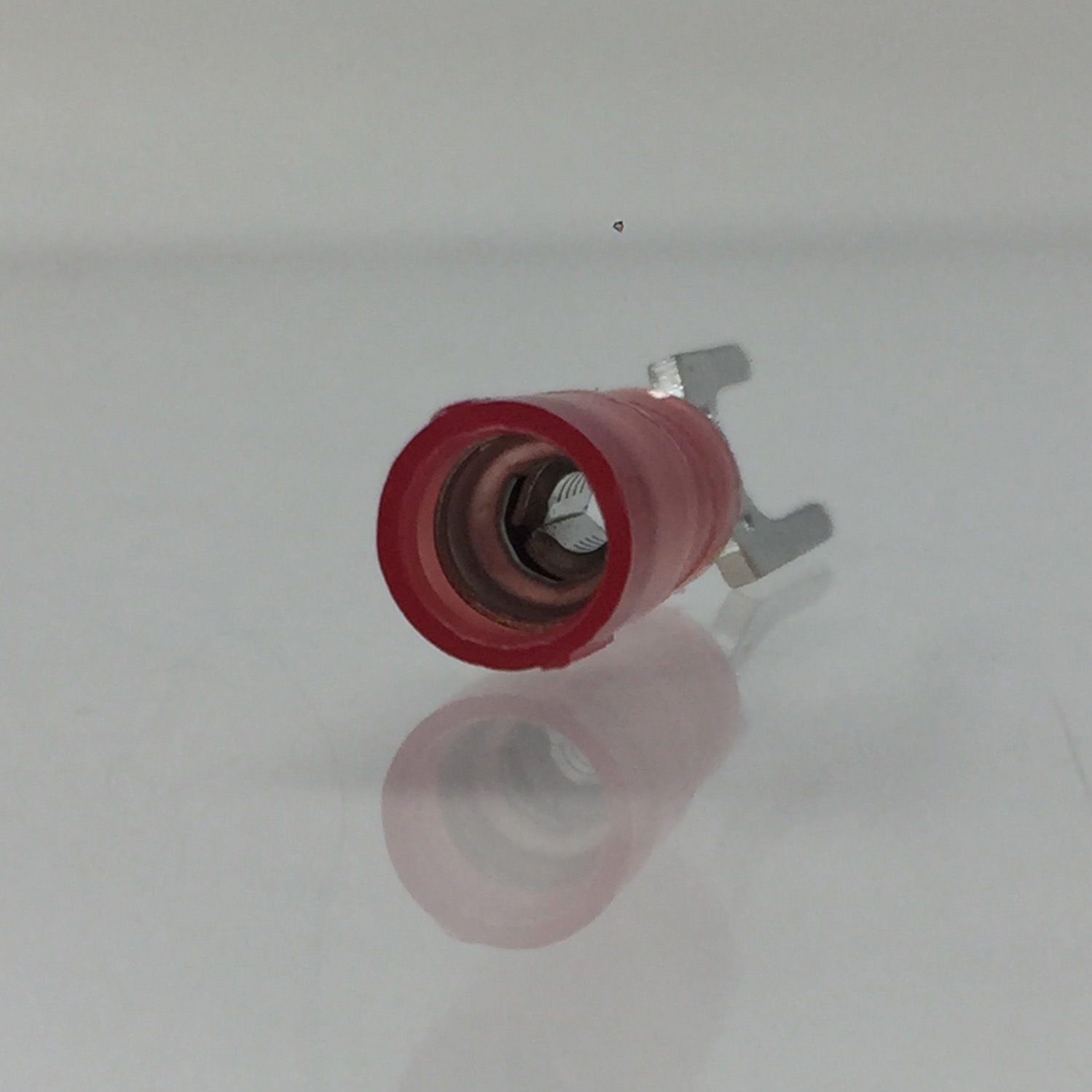

Factory Standard Pack = 100: Metric Fork Terminal, Funnel Entry, Nylon Insulated, 0.5 - 1.0 Millimeters Squared Wire Range, M3 Stud Size. Fork design provides for fast and easy installation, without the need to remove fastener. Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. Maximum insulation temperature 221 degrees Fahrenheit (105

$0.81

Min: 1  Mult: 1

Product Attributes

Barrel Configuration

0.145

Standards

€“

Std Carton Height

3.6

Std Carton Length

9.3

Std Carton Width

1.9

Stud Size In. (mm)

M3

Stud Size Metric

M3

Style

Standard

Surface Treatment

Tinned

Temperature Rating

221 Degrees Fahrenheit (105 Degrees Celsius)

Tool

CT-1550, CT-2500

Type

Metric Stud Size, Insulation Grip Sleeve

UL Listed

No

UL Recognized (File #E56854)

Funnel Entry

Unit Volume

.0000579

Unit Weight

.0024

UNSPSC

39121409

Width (In.)

0.23

Sell Pack Packaging Description

BTL

Plating Type

Tinned

Barrel Type

Insulation Grip Sleeve

Base Material

Copper

CE Compliant

No

CE Marking

No

Country of Origin Description

Mexico

CSA Certified

No

Flammability Rating

UL 94V-2/HB

Hazardous Material

N

Insulation

Nylon

Length (In.)

0.83

Panduit Color Code

Red

Packaging

Bottle

NAFTA Country of Origin

MX

MSDS Indicator

N

Max. Voltage Rating

600 V

Master Weight

1.2

Master Pack Quantity

5

Wire Range

22 - 18 AWG

UPC

7498384202
