PLWP1M-D

Panduit | In Stock | Panduit-Electrical
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

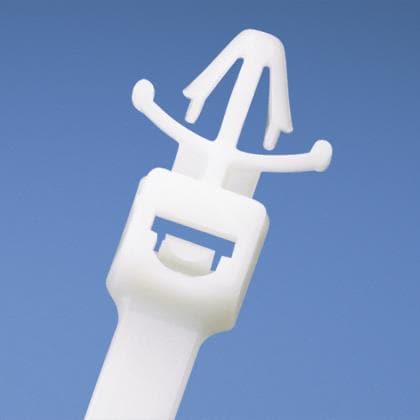

Factory Standard Pack = 500: Wing Push Mount Tie, 4.3 Inches (109 mm) Length, Miniature, Nylon, Natural. For indoor use. Cable tie, mount and fastener in a single part. Used to attach bundles to another surface such as a flat panel. Anchor is easily pressed into a pre-formed hole and locks in place. Wings provide constant tension for a stable, secure and rattle-free installation. Curved tip is easy to pick up from flat surfaces and allows faster initial threading.: Prices available while supplie

$0.18

Min: 1  Mult: 1

Product Attributes

Width (In.)

0.098

Standards

UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854

Stable to Vibration

No

Ship Pkg Qty 1

1

Shelf Life

1440

Sell Pack Packaging Description

BAG

Restricted Use of Hazardous Substances

N

Plenum-Rated

No

Operating Temperature

-76°F (-60°C) - 185°F (85°C)

Nominal Hole Diameter (In.)

0.187

MSDS Indicator

N

MSDS Doc Name

N

Min. Loop Tensile Strength Lbs. (N)

18 (80)

Std Carton Height

7.3

Std Carton Length

22.9

UV Resistant

false

UNSPSC

39121703

Unit Weight

.0015

Unit Volume

.0001991

UL Recognized

No

UL Listed (File #E56854)

Yes

Tool

GTS-E, GS2B, PTS, PPTS, STS2

Thickness (In.)

0.044

Surface Treatment

Untreated

Suggested Index Terms

Cable ties, zip ties, tie-wraps

Stud Size

Yes

Std Carton Width

10.4

Min. Loop Tensile Strength (N)

80

Min. Loop Tensile Strength (Lbs.)

18

Installation Temperature

-4°F (-20°C) - 32°F (0°C)

Head Height (In.)

0.220

Hazardous Material

N

Environment

Indoor

CSA Certified

Yes

Cross Section

Miniature

Country of Origin Description

Singapore

Continuous Use Temperature Range

-76°F (-60°C) - 185°F (85°C)

Color

Natural

Certificate of Conformity

N

CE Marking

Yes

CE Compliant

Yes

Lead Content Indicator

N

Length (In.)

4.3

Min. Bundle Diameter (In.)

0.06

Max. Panel Thickness In. (mm)

0.093 (2.4)

Max. Panel Thickness (In.)

0.093

Max. Continuous Use Temperature

185°F (85°C)

Max. Bundle Dia. (In.)

0.87

Material Grade

Polyamide PA

Material Flammability Rating

UL 94V-2

Material

Nylon 6.6

Master Weight

7.5

Master Pack Quantity

10

Marker/Flag Tie Labeling Area

None

Locking Style

Locking

Bundle Diameter Range In. (mm)

0.06 (1.5) - 1.75 (45)

UPC

7498354306

Not available at this time.
