PLT.7M-C

Panduit | In Stock | Panduit-Electrical
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

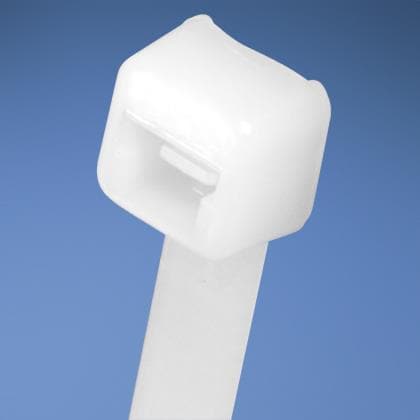

Factory Standard Pack = 100: Cable Tie, 3.1 Inches (79 mm) Length, Miniature, 18 Pounds Minimum Loop Tensile Strength, Nylon 6.6, Natural. Material Flammability Rating of V-2. For indoor use. One-piece construction for consistent performance and reliability. Low thread force. Curved tip is easy to pick up from flat surfaces and allows faster initial threading.: Prices available while supplies last.

$0.10

Min: 1  Mult: 1

Product Attributes

Width (In.)

0.090

Standards

UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854

Stable to Vibration

Yes

Shelf Life

1440

Sell Pack Packaging Description

BAG

Restricted Use of Hazardous Substances

N

Plenum-Rated

Yes, AH-2

Operating Temperature

-76°F (-60°C) - 185°F (85°C)

MSDS Indicator

N

Min. Loop Tensile Strength Lbs. (N)

18 (80)

Min. Loop Tensile Strength (N)

80

Min. Loop Tensile Strength (Lbs.)

18

Std Carton Height

4.5

Std Carton Length

10.3

Std Carton Width

6.8

UV Resistant

No

UNSPSC

39121703

Unit Weight

.001

Unit Volume

.0001614

UL Recognized

Yes

UL Listed (File #E56854)

Yes

Tool

GTS-E, GS2B, PTS, PPTS, STS2

Thickness (In.)

0.032

Surface Treatment

Untreated

Suggested Index Terms

Cable ties, zip ties, tie-wraps

Stud Size

No

Min. Bundle Diameter (In.)

0.03

Mil. Std. Part Number

MS3367-4-9

Max. Continuous Use Temperature

185°F (85°C)

Head Width (In.)

0.180

Head Height (In.)

0.115

Hazardous Material

N

Environment

Plenum

CSA Certified

Yes

Cross Section

Miniature

Country of Origin Description

Singapore

Continuous Use Temperature Range

-76°F (-60°C) - 185°F (85°C)

Color

Natural

Certificate of Conformity

N

CE Marking

Yes

CE Compliant

Yes

Installation Temperature

-4°F (-20°C) - 32°F (0°C)

Length (In.)

3.1

Locking Style

Locking

Max. Bundle Dia. (In.)

0.68

Material Grade

Polyamide PA

Material Flammability Rating

UL 94V-2

Material

Nylon 6.6

Bundle Diameter Range In. (mm)

0.03 (0.8) - 0.68 (17)

Master Weight

1

Marker/Flag Tie Labeling Area

None

Master Pack Quantity

10

Markers Per Card

Yes

UPC

7498354771

TYPE

Locking Tie

Size

Approx 0.7"

Cross Section (IPNS)

Miniature

Screw Hole Size

None

Package Size

100

Material/Color

Nylon 6.6 / Natural

Design Feature

One-piece locking wedge provides consistent, reliable performance

Threading Force

Low - reduces operator fatigue
