filter--iconPrice List

PLT.6SM-M

Panduit | In Stock | Panduit-Electrical
green-check-icon Total Stock: 200
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

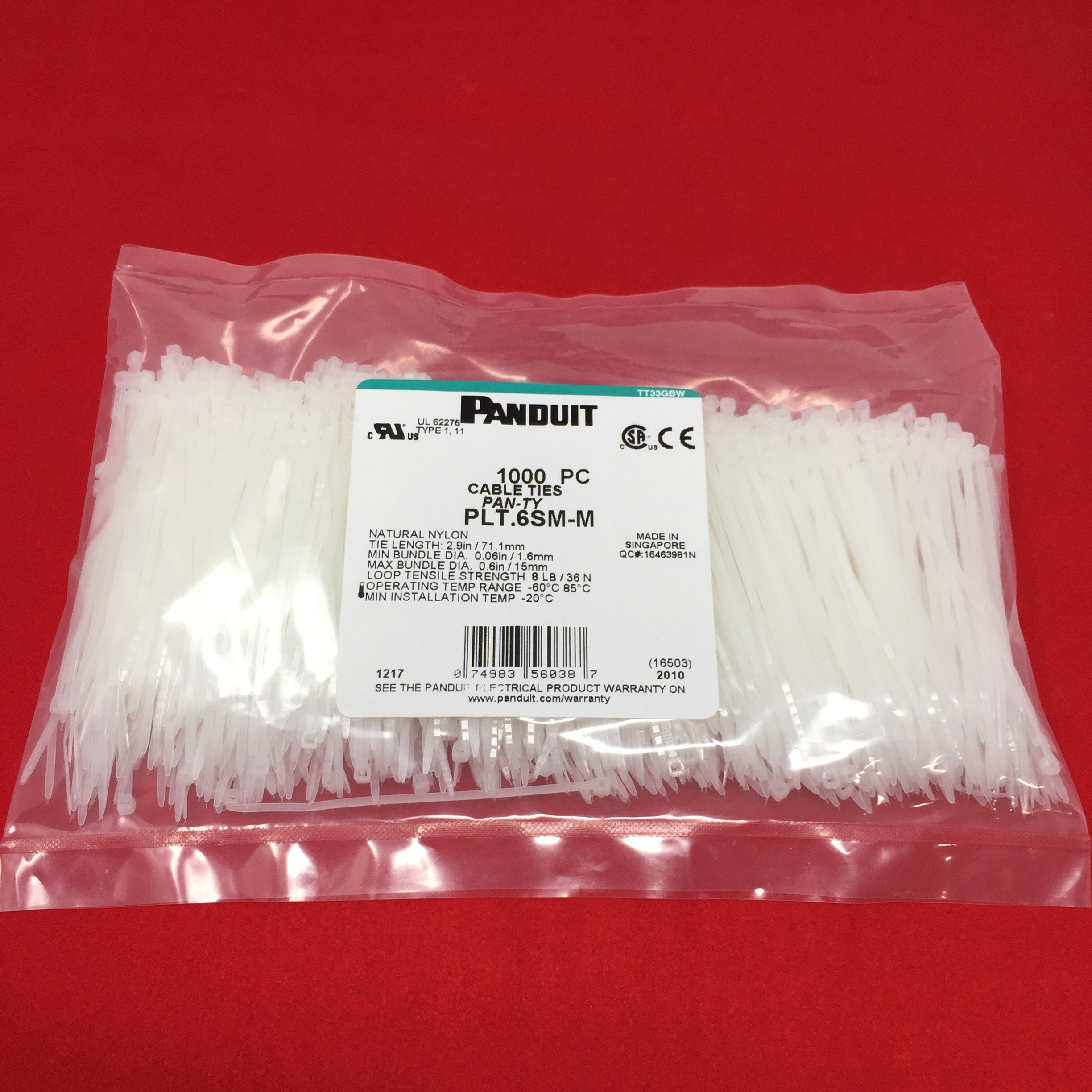

Cable Tie, 2.8 Inches (71 mm) Length, Subminiature, 8 Pounds Minimum Loop Tensile Strength, Nylon 6.6, Natural. Material Flammability Rating of V-2. For indoor use. One-piece construction for consistent performance and reliability. Low thread force. Curved tip is easy to pick up from flat surfaces and allows faster initial threading.

$0.05

Min: 1  Mult: 1

Product Attributes

Width (In.)

0.070

Standards

UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854

Stable to Vibration

No

Ship Pkg Qty 1

1

Shelf Life

1440

Sell Pack Packaging Description

BAG

Restricted Use of Hazardous Substances

N

Plenum-Rated

No

Operating Temperature

-76°F (-60°C) - 185°F (85°C)

MSDS Indicator

N

MSDS Doc Name

N

Min. Loop Tensile Strength Lbs. (N)

8 (36)

Min. Loop Tensile Strength (N)

36

Std Carton Height

8.4

Std Carton Length

23

UV Resistant

false

UNSPSC

39121703

Unit Weight

.0002

Unit Volume

.0000217

UL Recognized

No

UL Listed (File #E56854)

Yes

Tool

GTS-E, PTS

Thickness (In.)

0.030

Surface Treatment

Untreated

Suggested Index Terms

Cable ties, zip ties, tie-wraps

Stud Size

Yes

Std Carton Width

10.5

Min. Loop Tensile Strength (Lbs.)

8

Min. Bundle Diameter (In.)

0.01

Max. Continuous Use Temperature

185°F (85°C)

Installation Temperature

-4°F (-20°C) - 32°F (0°C)

Head Width (In.)

0.125

Head Height (In.)

0.095

Hazardous Material

N

Environment

Indoor

CSA Certified

Yes

Cross Section

Subminiature

Country of Origin Description

Singapore

Continuous Use Temperature Range

-76°F (-60°C) - 185°F (85°C)

Color

Natural

Certificate of Conformity

N

CE Marking

Yes

CE Compliant

Yes

Lead Content Indicator

N

Length (In.)

2.8

Max. Bundle Dia. (In.)

0.60

Material Grade

Polyamide PA

Material Flammability Rating

UL 94V-2

Material

Nylon 6.6

Bundle Diameter Range In. (mm)

0.01 (0.3) - 0.60 (15)

Master Weight

10

Marker/Flag Tie Labeling Area

None

Master Pack Quantity

50

Locking Style

Locking

Markers Per Card

No

UPC

7498356038

TYPE

Locking Tie

Size

Approx 0.6"

Cross Section (IPNS)

Subminiature

Screw Hole Size

None

Package Size

1000

Material/Color

Nylon 6.6 / Natural

Design Feature

One-piece locking wedge provides consistent, reliable performance

Threading Force

Low - reduces operator fatigue
