PLT.6SM-C0

Panduit | In Stock | Panduit-Electrical
green-check-icon Total Stock: 1100
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

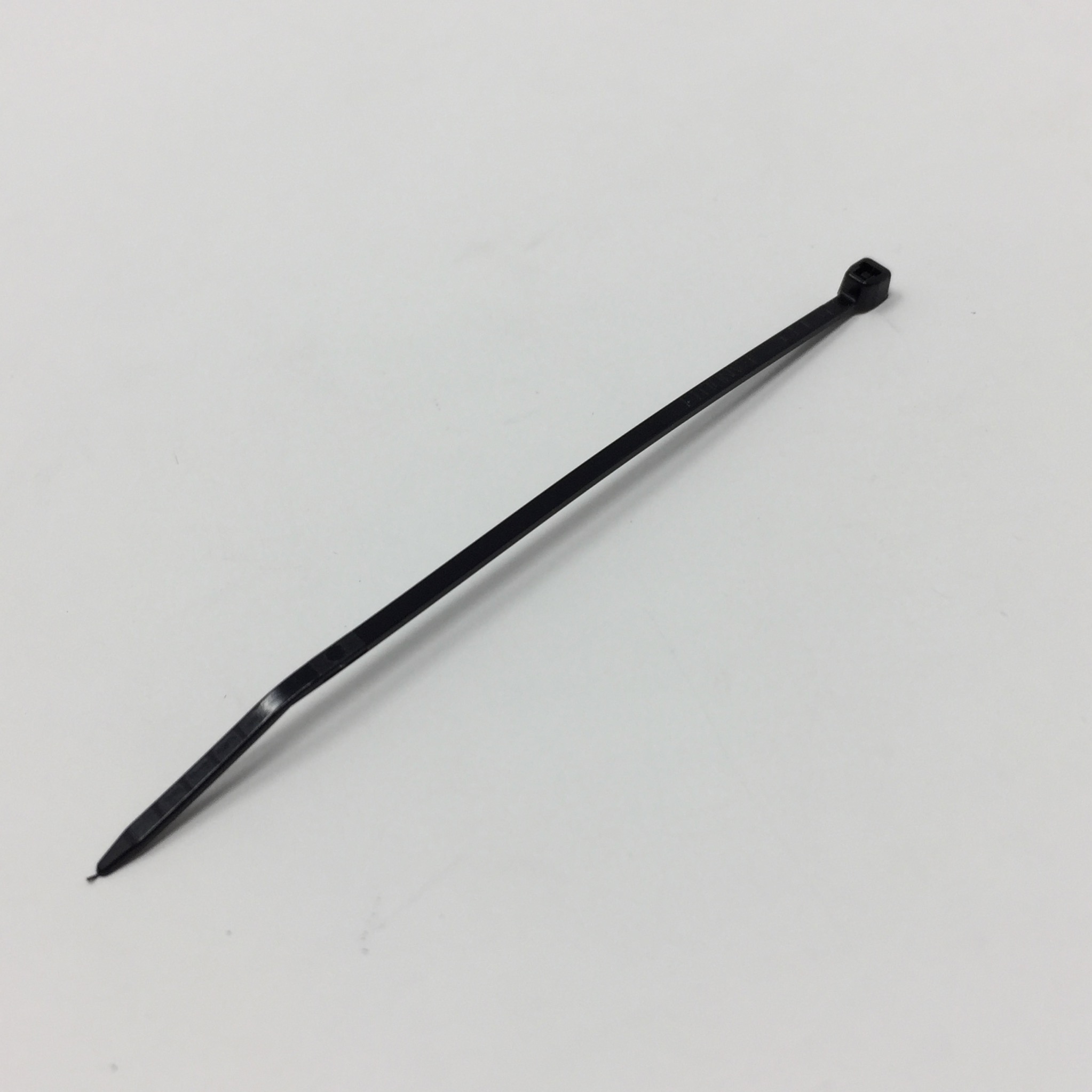

Factory Standard Pack = 100: Cable Tie, 2.8 Inches (71 mm) Length, Subminiature, 8 Pounds Minimum Loop Tensile Strength, Weather Resistant Nylon 6.6, Black. Material Flammability Rating of V-2. Weather Resistant for greater resistance to damage caused by ultraviolet light. Indoor or outdoor use. One-piece construction for consistent performance and reliability. Low thread force. Curved tip is easy to pick up from flat surfaces and allows faster initial threading.: Prices available while supplies

$0.12

Min: 1  Mult: 1

Product Attributes

Width (In.)

0.070

Standards

UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854

Stable to Vibration

No

Shelf Life

1440

Sell Pack Packaging Description

BAG

Restricted Use of Hazardous Substances

N

Plenum-Rated

No

Operating Temperature

-76°F (-60°C) - 185°F (85°C)

MSDS Indicator

N

Min. Loop Tensile Strength Lbs. (N)

8 (36)

Min. Loop Tensile Strength (N)

36

Min. Loop Tensile Strength (Lbs.)

8

Std Carton Height

4.5

Std Carton Length

10.3

Std Carton Width

6.8

UV Resistant

true

UNSPSC

39121703

Unit Weight

.0006

Unit Volume

.0001614

UL Recognized

No

UL Listed (File #E56854)

Yes

Tool

GTS-E, PTS

Thickness (In.)

0.030

Surface Treatment

Untreated

Suggested Index Terms

Cable ties, zip ties, tie-wraps

Stud Size

Yes

Min. Bundle Diameter (In.)

0.01

Max. Continuous Use Temperature

185°F (85°C)

Head Width (In.)

0.125

Head Height (In.)

0.095

Hazardous Material

N

Environment

Outdoor (UV Resistant)

CSA Certified

Yes

Cross Section

Subminiature

Country of Origin Description

Singapore

Continuous Use Temperature Range

-76°F (-60°C) - 185°F (85°C)

Color

Black

Certificate of Conformity

N

CE Marking

Yes

CE Compliant

Yes

Installation Temperature

-4°F (-20°C) - 32°F (0°C)

Length (In.)

2.8

Locking Style

Locking

Max. Bundle Dia. (In.)

0.60

Material Grade

Polyamide PA

Material Flammability Rating

UL 94V-2

Material

Weather Resistant Nylon 6.6

Bundle Diameter Range In. (mm)

0.01 (0.3) - 0.60 (15)

Master Weight

.6

Marker/Flag Tie Labeling Area

None

Master Pack Quantity

10

Markers Per Card

No

UPC

7498356035

TYPE

Locking Tie

Size

Approx 0.6"

Cross Section (IPNS)

Subminiature

Screw Hole Size

None

Package Size

100

Material/Color

Weather Resistant Nylon 6.6 / Black

Design Feature

One-piece locking wedge provides consistent, reliable performance

Threading Force

Low - reduces operator fatigue
