PLT5S-C0

Panduit | In Stock | Panduit-Electrical
green-check-icon Total Stock: 100
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

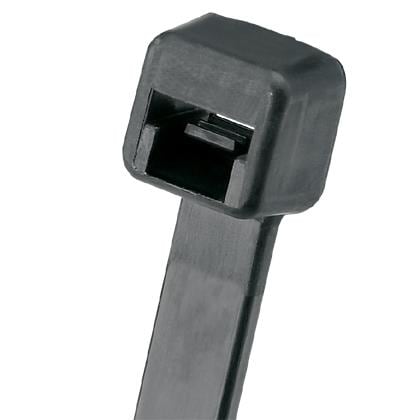

Factory Standard Pack = 100: Cable Tie, 17.5 Inches (445 mm) Length, Standard, 50 Pounds Minimum Loop Tensile Strength, Weather Resistant Nylon 6.6, Black. Material Flammability Rating of V-2. Weather Resistant for greater resistance to damage caused by ultraviolet light. Indoor or outdoor use. One-piece construction for consistent performance and reliability. Low thread force.: Prices available while supplies last.

$0.56

Min: 1  Mult: 1

Product Attributes

Width (In.)

0.190

Standards

UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854

Stable to Vibration

No

Ship Pkg Qty 1

1

Shelf Life

1440

Sell Pack Packaging Description

BAG

Restricted Use of Hazardous Substances

N

Plenum-Rated

No

Operating Temperature

-76°F (-60°C) - 185°F (85°C)

MSDS Indicator

N

MSDS Doc Name

N

Min. Loop Tensile Strength Lbs. (N)

50 (222)

Min. Loop Tensile Strength (N)

222

Std Carton Height

5.9

Std Carton Length

19.5

UV Resistant

true

UNSPSC

39121703

Unit Weight

.008

Unit Volume

.000699

UL Recognized

Yes

UL Listed (File #E56854)

Yes

Tool

GTS-E, GS2B, GTH-E, GS4H, PTS, PTH, PPTS, STS2, STH2

Thickness (In.)

0.052

Surface Treatment

Untreated

Suggested Index Terms

Cable ties, zip ties, tie-wraps

Stud Size

No

Std Carton Width

10.5

Min. Loop Tensile Strength (Lbs.)

50

Min. Bundle Diameter (In.)

0.06

Max. Continuous Use Temperature

185°F (85°C)

Installation Temperature

-4°F (-20°C) - 32°F (0°C)

Head Width (In.)

0.337

Head Height (In.)

0.220

Hazardous Material

N

Environment

Outdoor (UV Resistant)

CSA Certified

Yes

Cross Section

Standard

Country of Origin Description

Singapore

Continuous Use Temperature Range

-76°F (-60°C) - 185°F (85°C)

Color

Black

Certificate of Conformity

N

CE Marking

Yes

CE Compliant

Yes

Lead Content Indicator

N

Length (In.)

17.5

Max. Bundle Dia. (In.)

5.00

Material Grade

Polyamide PA

Material Flammability Rating

UL 94V-2

Material

Weather Resistant Nylon 6.6

Bundle Diameter Range In. (mm)

0.06 (1.5) - 5.00 (127)

Master Weight

8

Marker/Flag Tie Labeling Area

None

Master Pack Quantity

10

Locking Style

Locking

Markers Per Card

Yes

UPC

7498354086

TYPE

Locking Tie

Size

Approx 5.0"

Cross Section (IPNS)

Standard

Screw Hole Size

None

Package Size

100

Material/Color

Weather Resistant Nylon 6.6 / Black

Design Feature

One-piece locking wedge provides consistent, reliable performance

Threading Force

Low - reduces operator fatigue
