filter--iconPrice List

PLT2S-M71

Panduit | In Stock | Panduit-Electrical
green-check-icon Total Stock: 750
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

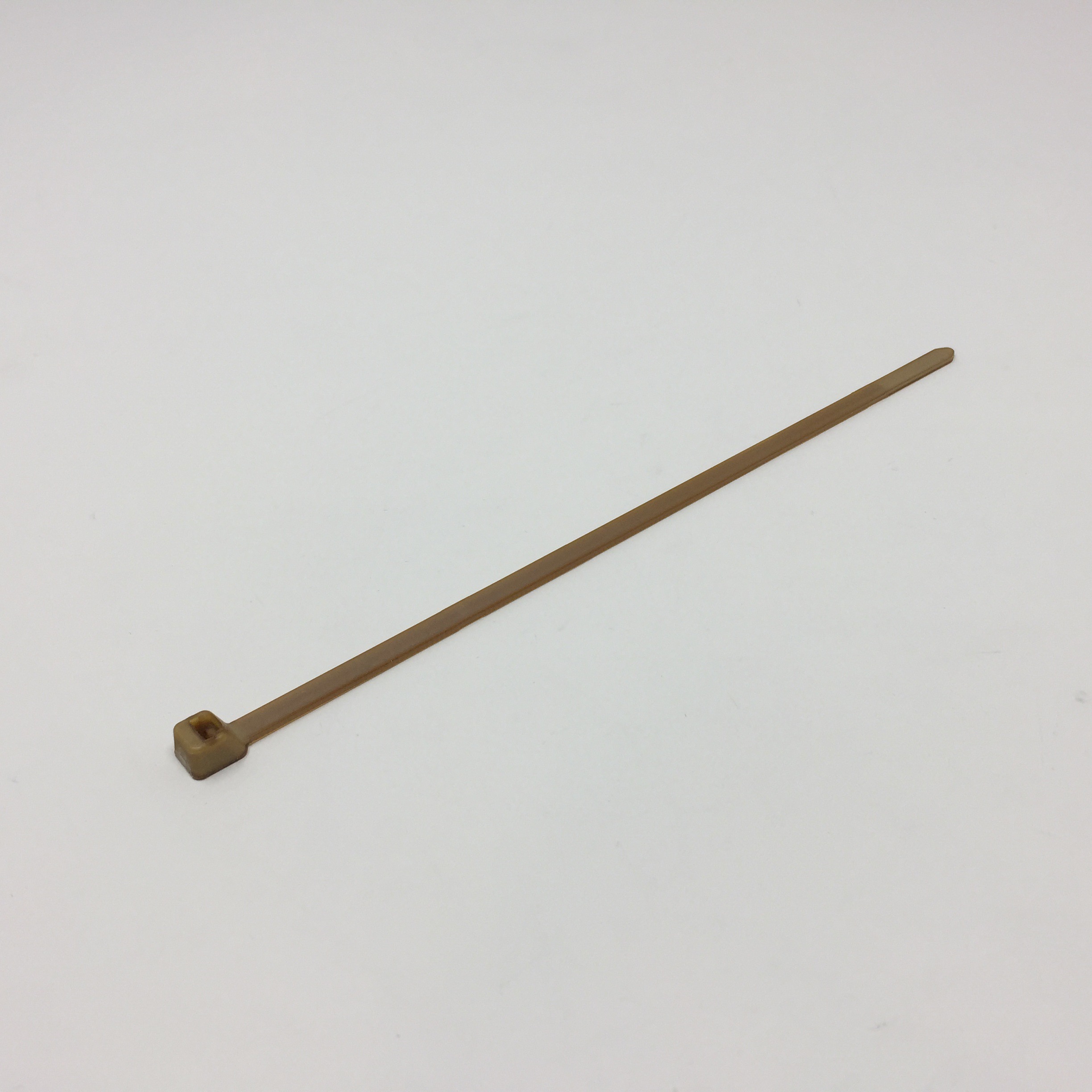

Factory Standard Pack = 1000: Cable Tie, 7.4 Inches (188 mm) Length, Standard. Polyetheretherketone (PEEK). Translucent Brown. Designed for harsh environments where a cable tie material is required to hold up to chemical, high radiation, and/or high operating temperature environments. Non-conductive material that is excellent for high temperature applications up to 500 degrees Fahrenheit (260 degrees Celsius). Flammability rating of V-0 with low smoke and toxicity. PEEK material meets MIL specif

$1.20

Min: 1  Mult: 1

Product Attributes

Width (In.)

0.190

Stable to Vibration

No

Shelf Life

2880

Sell Pack Packaging Description

BAG

Restricted Use of Hazardous Substances

N

Plenum-Rated

No

Operating Temperature

-76°F (-60°C) - 500°F (260°C)

NAFTA Country of Origin

US

MSDS Indicator

N

Min. Loop Tensile Strength Lbs. (N)

150 (668)

Min. Loop Tensile Strength (N)

668

Std Carton Height

14.1

Std Carton Length

22.9

Std Carton Width

10.8

UV Resistant

No

UNSPSC

39121703

Unit Weight

.0029

Unit Volume

.0001961

UL Recognized

No

UL Listed (File #E56854)

No

Tool

GTS-E, GS2B, GTH-E, GS4H, PTS, PTH, PPTS, STS2, STH2

Thickness (In.)

0.055

Surface Treatment

Untreated

Stud Size

No

Min. Loop Tensile Strength (Lbs.)

150

Min. Bundle Diameter (In.)

0.13

Max. Continuous Use Temperature

500°F (260°C)

Hazardous Material

N

Environment

Indoor

CSA Certified

No

Cross Section

Standard

Country of Origin Description

Costa Rica

Continuous Use Temperature Range

-76°F (-60°C) - 500°F (260°C)

Color

Translucent Brown

Certificate of Conformity

N

CE Marking

Yes

CE Compliant

Yes

Head Height (In.)

0.240

Head Width (In.)

0.320

Installation Temperature

-4°F (-20°C) - 32°F (0°C)

Max. Bundle Dia. (In.)

1.88

Material Grade

Other

Material Flammability Rating

UL 94V-0

Material

Polyetheretherketone (PEEK)

Master Weight

29

Master Pack Quantity

10

Markers Per Card

No

Marker/Flag Tie Labeling Area

None

Locking Style

Locking

Length (In.)

7.4

Bundle Diameter Range In. (mm)

0.13 (3.3) - 1.88 (48)

UPC

7498390462

Design Feature

One-piece locking wedge provides consistent, reliable performance

Threading Force

Low - reduces operator fatigue
