PLT2S-C702Y

Panduit | In Stock | Panduit-Electrical
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

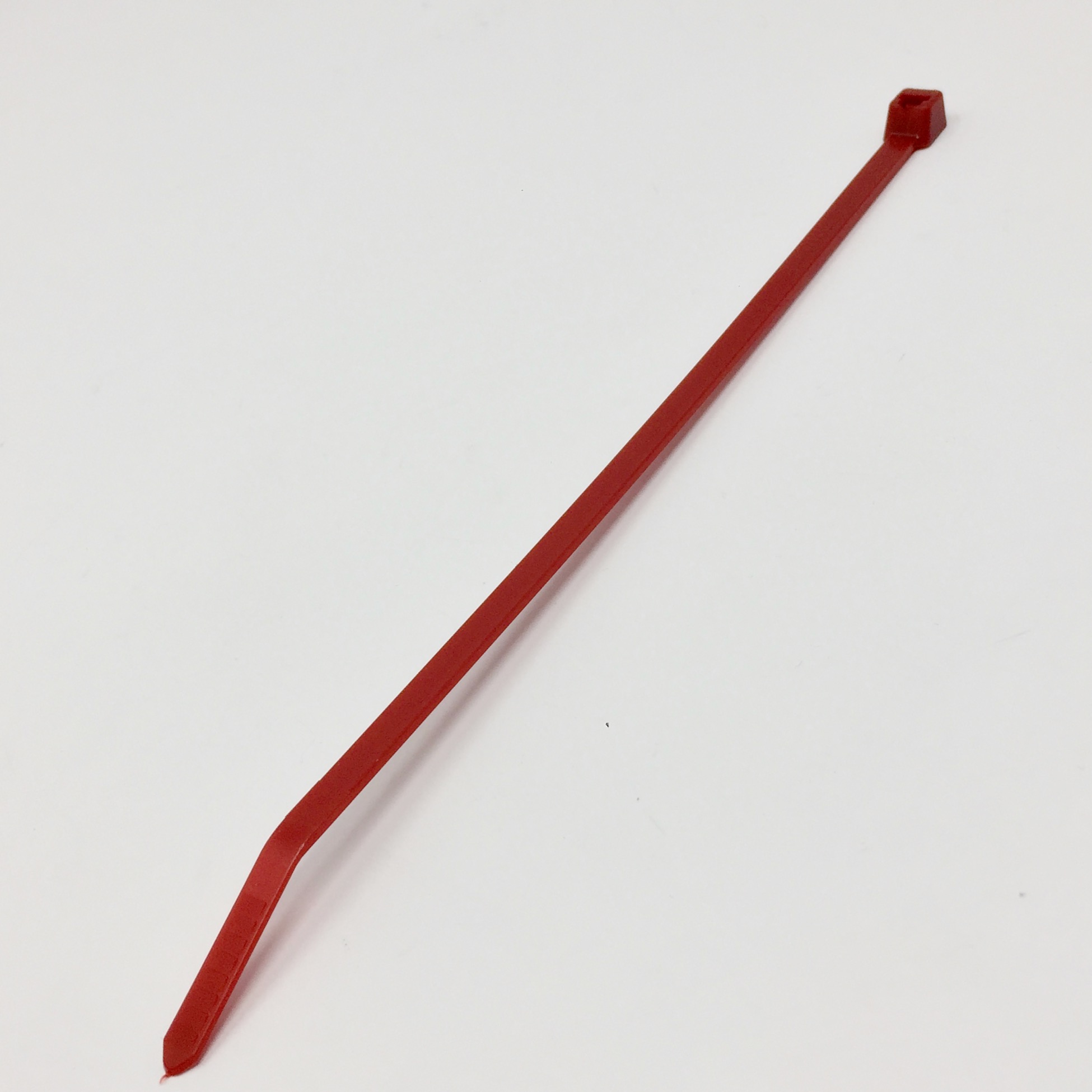

Factory Standard Pack = 100: Cable Tie, 7.4 Inches (188 mm) Length, Standard. Halar. UL Listed for use in plenum or air handling spaces per NEC, Section 300-22 (C) and (D). Low smoke density and excellent flammability rating of UL 94V-0. Commonly accepted solution for bundling qualified cable without conduit in air handling space applications. Applications include nuclear plants, chemical environments, telecommunications equipment, aerospace, and high and low temperature environments. Distinctiv

$1.35

Min: 1  Mult: 1

Product Attributes

Width (In.)

0.190

Stable to Vibration

No

Shelf Life

1440

Sell Pack Packaging Description

BAG

Restricted Use of Hazardous Substances

N

Plenum-Rated

Yes, AH-2

Operating Temperature

-76°F (-60°C) - 257°F (125°C)

Note

PLT2S-C702Y replaces PLT2S-C702

NAFTA Country of Origin

US

MSDS Indicator

N

Min. Loop Tensile Strength Lbs. (N)

50 (222)

Min. Loop Tensile Strength (N)

222

Std Carton Height

6

Std Carton Length

10.25

UV Resistant

Yes

UNSPSC

39121703

Unit Weight

.00580549933333333

Unit Volume

.0002789

UL Recognized

Yes

UL Listed (File #E56854)

Yes

Tool

GTS-E, GS2B, GTH-E, GS4H, PTS, PTH, PPTS, STS2, STH2

Thickness (In.)

0.055

Surface Treatment

Untreated

Stud Size

No

Std Carton Width

8.25

Min. Loop Tensile Strength (Lbs.)

50

Min. Bundle Diameter (In.)

0.24

Head Height (In.)

0.240

Hazardous Material

N

Environment

Plenum

CSA Certified

Yes

Cross Section

Standard

Country of Origin Description

Costa Rica

Continuous Use Temperature Range

-76°F (-60°C) - 257°F (125°C)

Color

Maroon

Certificate of Conformity

N

CE Marking

Yes

CE Compliant

Yes

Head Width (In.)

0.320

Installation Temperature

-4°F (-20°C) - 32°F (0°C)

Max. Continuous Use Temperature

257°F (125°C)

Max. Bundle Dia. (In.)

1.88

Material Grade

Other

Material Flammability Rating

UL 94V-0

Material

HALAR Fluoropolymer

Master Weight

5.80549933333333

Master Pack Quantity

10

Markers Per Card

Yes

Marker/Flag Tie Labeling Area

None

Locking Style

Locking

Length (In.)

7.4

Bundle Diameter Range In. (mm)

0.24 (6.1) - 1.88 (48)

UPC

7498344737

Design Feature

One-piece locking wedge provides consistent, reliable performance

Threading Force

Low - reduces operator fatigue
