PLT2M-M

Panduit | In Stock | Panduit-Electrical
green-check-icon Total Stock: 7000
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

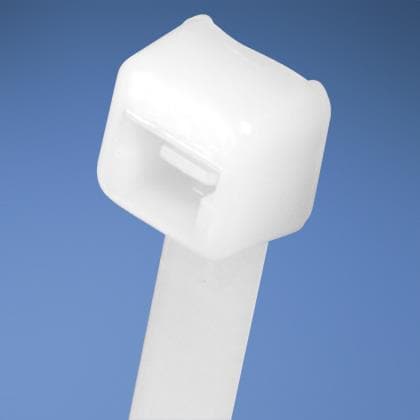

Factory Standard Pack = 1000: Panduit PLT2M-M Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Miniat: Prices available while supplies last.

$0.05

Min: 1  Mult: 1

Product Attributes

Width (In.)

0.098

Standards

UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854

Stable to Vibration

No

Shelf Life

1440

Sell Pack Packaging Description

BAG

Restricted Use of Hazardous Substances

N

Plenum-Rated

Yes, AH-2

Operating Temperature

-76°F (-60°C) - 185°F (85°C)

MSDS Indicator

N

Min. Loop Tensile Strength Lbs. (N)

18 (80)

Min. Loop Tensile Strength (N)

80

Min. Loop Tensile Strength (Lbs.)

18

Std Carton Height

15.912

Std Carton Length

22.956

Std Carton Width

10.456

UV Resistant

No

UNSPSC

39121703

Unit Weight

.0014881185

Unit Volume

.0000884

UL Recognized

Yes

UL Listed (File #E56854)

Yes

Tool

GTS-E, GS2B, PTS, PPTS, STS2

Thickness (In.)

0.043

Surface Treatment

Untreated

Suggested Index Terms

Cable ties, zip ties, tie-wraps

Stud Size

No

Min. Bundle Diameter (In.)

0.06

Max. Continuous Use Temperature

185°F (85°C)

Head Width (In.)

0.180

Head Height (In.)

0.154

Hazardous Material

N

Environment

Plenum

CSA Certified

Yes

Cross Section

Miniature

Country of Origin Description

Costa Rica,Singapore

Continuous Use Temperature Range

-76°F (-60°C) - 185°F (85°C)

Color

Natural

Certificate of Conformity

N

CE Marking

Yes

CE Compliant

Yes

Installation Temperature

-4°F (-20°C) - 32°F (0°C)

Length (In.)

8.0

Locking Style

Locking

Max. Bundle Dia. (In.)

2.00

Material Grade

Polyamide PA

Material Flammability Rating

UL 94V-2

Material

Nylon 6.6

Bundle Diameter Range In. (mm)

0.06 (1.5) - 2.00 (51)

Master Weight

37.2029625

Marker/Flag Tie Labeling Area

None

Master Pack Quantity

25

Markers Per Card

Yes

UPC

7498354026

TYPE

Locking Tie

Size

Approx 2.0"

Cross Section (IPNS)

Miniature

Screw Hole Size

None

Package Size

1000

Material/Color

Nylon 6.6 / Natural

Design Feature

One-piece locking wedge provides consistent, reliable performance

Threading Force

Low - reduces operator fatigue
