PLT2I-M8

Panduit | In Stock | Panduit-Electrical
green-check-icon Total Stock: 1000
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

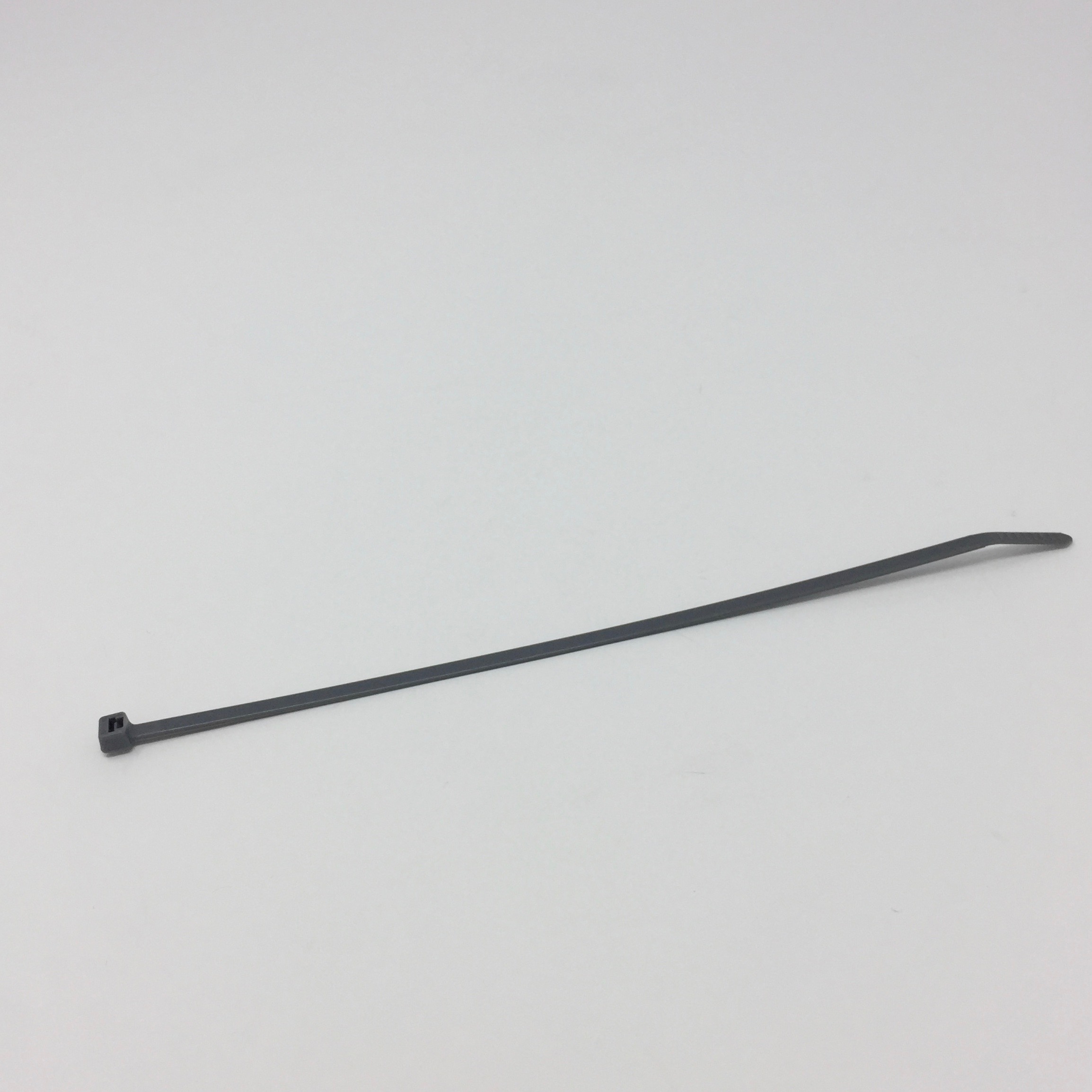

Factory Standard Pack = 1000: Cable Tie, 8.0 Inches (203 mm) Length, Intermediate, 40 Pounds Minimum Loop Tensile Strength, Nylon 6.6, Gray. Material Flammability Rating of V-2. For indoor use. One-piece construction for consistent performance and reliability. Low thread force. Curved tip is easy to pick up from flat surfaces and allows faster initial threading.: Prices available while supplies last.

$0.08

Min: 1  Mult: 1

Product Attributes

Width (In.)

0.142

Std Carton Height

18.2

Standards

UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854

Stable to Vibration

No

Shelf Life

1440

Sell Pack Packaging Description

BAG

Restricted Use of Hazardous Substances

N

Plenum-Rated

Yes, AH-2

Operating Temperature

-76°F (-60°C) - 185°F (85°C)

MSDS Indicator

N

Min. Loop Tensile Strength Lbs. (N)

40 (178)

Min. Loop Tensile Strength (N)

178

Std Carton Length

21.9

Std Carton Width

14.5

UV Resistant

No

UNSPSC

39121703

Unit Weight

.002

Unit Volume

.000134

UL Recognized

Yes

UL Listed (File #E56854)

Yes

Tool

GTS-E, GS2B, PTS, PPTS, STS2

Thickness (In.)

0.045

Surface Treatment

Untreated

Suggested Index Terms

Cable ties, zip ties, tie-wraps

Stud Size

No

Min. Loop Tensile Strength (Lbs.)

40

Min. Bundle Diameter (In.)

0.06

Max. Continuous Use Temperature

185°F (85°C)

Head Height (In.)

0.180

Hazardous Material

N

Environment

Plenum

CSA Certified

Yes

Cross Section

Intermediate

Country of Origin Description

Singapore

Continuous Use Temperature Range

-76°F (-60°C) - 185°F (85°C)

Color

Gray

Certificate of Conformity

N

CE Marking

Yes

CE Compliant

Yes

Head Width (In.)

0.240

Installation Temperature

-4°F (-20°C) - 32°F (0°C)

Max. Bundle Dia. (In.)

2.00

Material Grade

Polyamide PA

Material Flammability Rating

UL 94V-2

Material

Nylon 6.6

Master Weight

50

Master Pack Quantity

25

Markers Per Card

Yes

Marker/Flag Tie Labeling Area

None

Locking Style

Locking

Length (In.)

8.0

Lead Content Indicator

N

Bundle Diameter Range In. (mm)

0.06 (1.5) - 2.00 (51)

UPC

7498356281

Design Feature

One-piece locking wedge provides consistent, reliable performance

Threading Force

Low - reduces operator fatigue
