PLT2I-M0

Panduit | In Stock | Panduit-Electrical
green-check-icon Total Stock: 10000
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

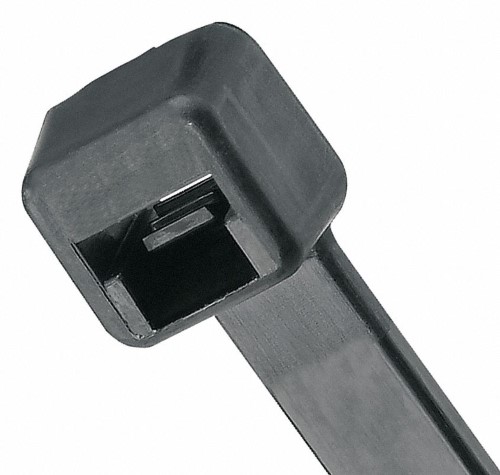

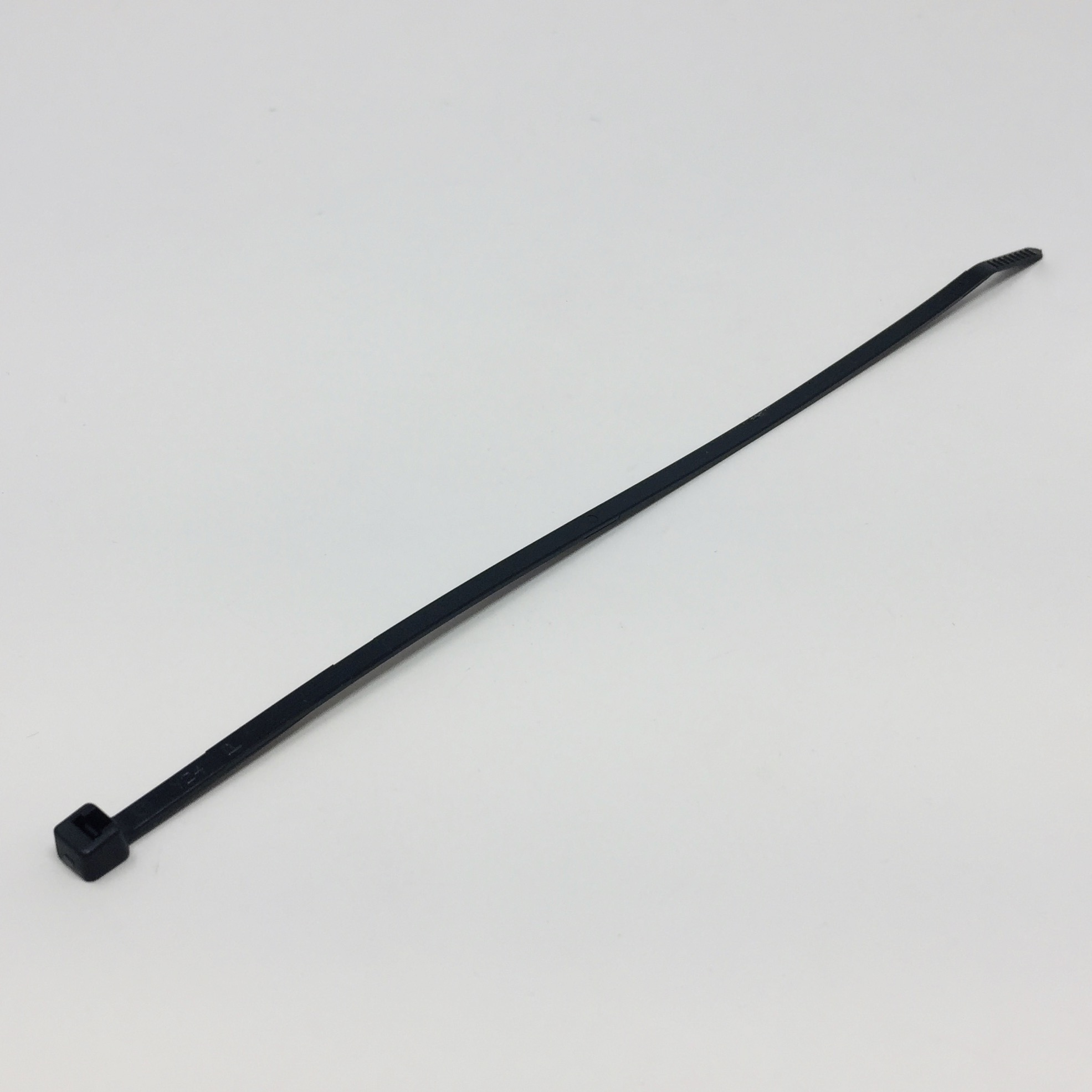

Cable Tie, 8.0 Inches (203 mm) Length, Intermediate, 40 Pounds Minimum Loop Tensile Strength, Weather Resistant Nylon 6.6, Black. Material Flammability Rating of V-2. Weather Resistant material has greater resistance to damage caused by ultraviolet light. Indoor or outdoor use. One-piece construction for consistent performance and reliability. Low thread force. Curved tip is easy to pick up from flat surfaces and allows faster initial threading.

$0.06

Min: 5000  Mult: 1000

Product Attributes

Width (In.)

0.142

Standards

UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854

Stable to Vibration

No

Shelf Life

1440

Sell Pack Packaging Description

BAG

Restricted Use of Hazardous Substances

N

Plenum-Rated

No

Operating Temperature

-76°F (-60°C) - 185°F (85°C)

MSDS Indicator

N

Min. Loop Tensile Strength Lbs. (N)

40 (178)

Min. Loop Tensile Strength (N)

178

Min. Loop Tensile Strength (Lbs.)

40

Std Carton Height

18.412

Std Carton Length

21.956

Std Carton Width

14.586

UV Resistant

Yes

UNSPSC

39121703

Unit Weight

.00227810733333333

Unit Volume

.0001365

UL Recognized

Yes

UL Listed (File #E56854)

Yes

Tool

GTS-E, GS2B, PTS, PPTS, STS2

Thickness (In.)

0.045

Surface Treatment

Untreated

Suggested Index Terms

Cable ties, zip ties, tie-wraps

Stud Size

No

Min. Bundle Diameter (In.)

0.06

Max. Continuous Use Temperature

185°F (85°C)

Head Width (In.)

0.240

Head Height (In.)

0.180

Hazardous Material

N

Environment

Outdoor (UV Resistant)

CSA Certified

Yes

Cross Section

Intermediate

Country of Origin Description

Singapore,Costa Rica

Continuous Use Temperature Range

-76°F (-60°C) - 185°F (85°C)

Color

Black

Certificate of Conformity

N

CE Marking

Yes

CE Compliant

Yes

Installation Temperature

-4°F (-20°C) - 32°F (0°C)

Length (In.)

8.0

Locking Style

Locking

Max. Bundle Dia. (In.)

2.00

Material Grade

Polyamide PA

Material Flammability Rating

UL 94V-2

Material

Weather Resistant Nylon 6.6

Bundle Diameter Range In. (mm)

0.06 (1.5) - 2.00 (51)

Master Weight

56.95268333333325

Marker/Flag Tie Labeling Area

None

Master Pack Quantity

25

Markers Per Card

Yes

UPC

7498354033

TYPE

Locking Tie

Size

Approx 2.0"

Cross Section (IPNS)

Intermediate

Screw Hole Size

None

Package Size

1000

Material/Color

Weather Resistant Nylon 6.6 / Black

Design Feature

One-piece locking wedge provides consistent, reliable performance

Threading Force

Low - reduces operator fatigue
