PLT1M-C76

Panduit | In Stock | Panduit-Electrical
green-check-icon Total Stock: 60
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

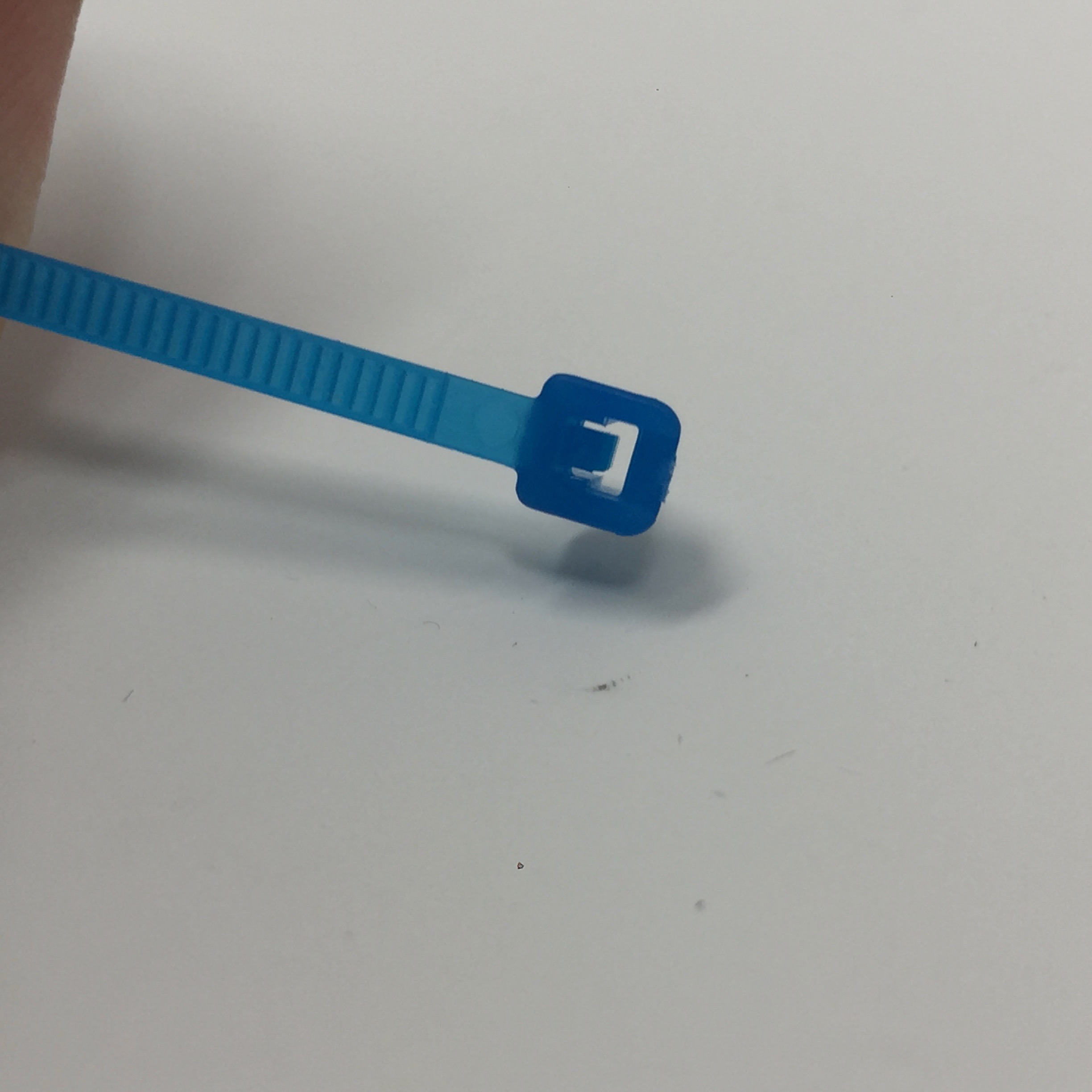

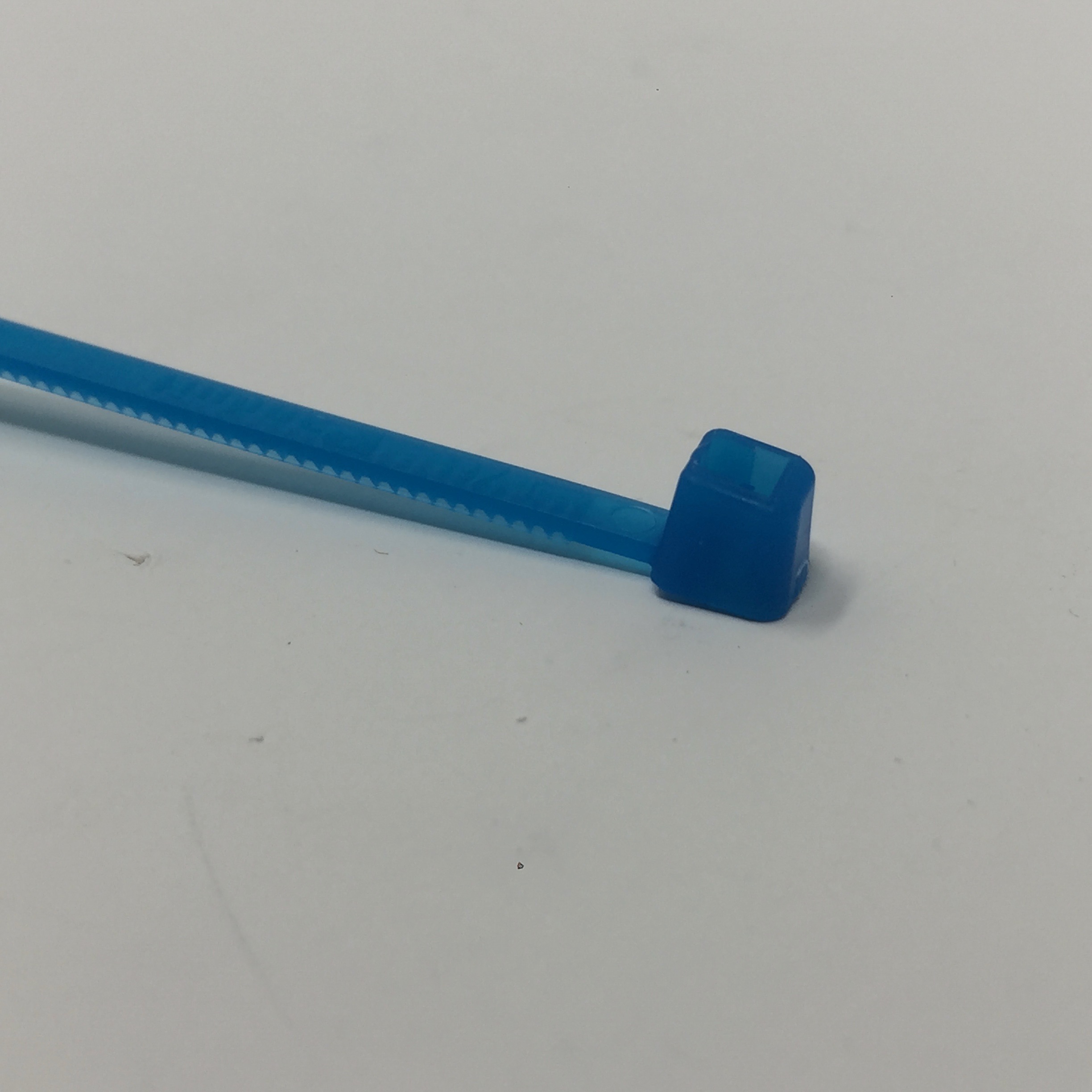

Factory Standard Pack = 100: Cable Tie, 4 Inches (102 mm) Length, Miniature. Tefzel. Aqua color. Ideal for applications requiring resistance to environmental stresses such as chemical attack, gamma radiation, ultraviolet radiation and extreme temperatures. Ideal for use in nuclear power facilities and chemical processing plants. Low smoke density and excellent flammability rating of UL 94V-0. Distinctive aqua blue color. For indoor or outdoor use.: Prices available while supplies last.

$0.70

Min: 1  Mult: 1

Product Attributes

Width (In.)

0.098

Stable to Vibration

No

Shelf Life

1440

Sell Pack Packaging Description

BAG

Restricted Use of Hazardous Substances

N

Plenum-Rated

No

Operating Temperature

-76°F (-60°C) - 338°F (170°C)

NAFTA Country of Origin

US

MSDS Indicator

N

Min. Loop Tensile Strength Lbs. (N)

18 (80)

Min. Loop Tensile Strength (N)

80

Std Carton Height

5.75

Std Carton Length

10.25

Std Carton Width

6.62

UV Resistant

Yes

UNSPSC

39121703

Unit Weight

.00168588588235294

Unit Volume

.0002258

UL Recognized

No

UL Listed (File #E56854)

Yes

Tool

GTS-E, GS2B, PTS, PPTS, STS2

Thickness (In.)

.043

Surface Treatment

Untreated

Stud Size

Yes

Min. Loop Tensile Strength (Lbs.)

18

Min. Bundle Diameter (In.)

0.13

Max. Continuous Use Temperature

338°F (170°C)

Hazardous Material

N

Environment

Indoor

CSA Certified

Yes

Cross Section

Miniature

Country of Origin Description

Costa Rica

Continuous Use Temperature Range

-76°F (-60°C) - 338°F (170°C)

Color

Aqua

Certificate of Conformity

N

CE Marking

Yes

CE Compliant

Yes

Head Height (In.)

0.186

Head Width (In.)

0.188

Installation Temperature

-4°F (-20°C) - 32°F (0°C)

Max. Bundle Dia. (In.)

0.87

Material Grade

Other

Material Flammability Rating

UL 94V-0

Material

Tefzel

Master Weight

1.68588588235294

Master Pack Quantity

10

Markers Per Card

No

Marker/Flag Tie Labeling Area

None

Locking Style

Locking

Length (In.)

4.0

Bundle Diameter Range In. (mm)

0.13 (3.3) - 0.87 (22)

UPC

7498354142
