PLT1.5M-M

Panduit | In Stock | Panduit-Electrical
green-check-icon Total Stock: 2000
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

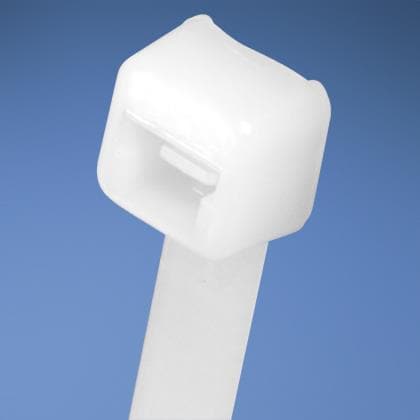

Factory Standard Pack = 1000: Cable Tie, 5.6 Inches (142 mm) Length, Miniature, 18 Pounds Minimum Loop Tensile Strength, Nylon 6.6, Natural. Material Flammability Rating of V-2. For indoor use. One-piece construction for consistent performance and reliability. Low thread force. Curved tip is easy to pick up from flat surfaces and allows faster initial threading.: Prices available while supplies last.

$0.05

Min: 1  Mult: 1

Product Attributes

Width (In.)

0.098

Standards

UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854

Stable to Vibration

No

Ship Pkg Qty 1

1

Shelf Life

1440

Sell Pack Packaging Description

BAG

Restricted Use of Hazardous Substances

N

Plenum-Rated

Yes, AH-2

Operating Temperature

-76°F (-60°C) - 185°F (85°C)

MSDS Indicator

N

MSDS Doc Name

N

Min. Loop Tensile Strength Lbs. (N)

18 (80)

Min. Loop Tensile Strength (N)

80

Std Carton Height

14.6

Std Carton Length

22

UV Resistant

false

UNSPSC

39121703

Unit Weight

.001212541

Unit Volume

.0000764

UL Recognized

Yes

UL Listed (File #E56854)

Yes

Tool

GTS-E, GS2B, PTS, PPTS, STS2

Thickness (In.)

0.043

Surface Treatment

Untreated

Suggested Index Terms

Cable ties, zip ties, tie-wraps

Stud Size

No

Std Carton Width

20.9

Min. Loop Tensile Strength (Lbs.)

18

Min. Bundle Diameter (In.)

0.06

Max. Continuous Use Temperature

185°F (85°C)

Installation Temperature

-4°F (-20°C) - 32°F (0°C)

Head Width (In.)

0.180

Head Height (In.)

0.154

Hazardous Material

N

Environment

Plenum

CSA Certified

Yes

Cross Section

Miniature

Country of Origin Description

Singapore,Costa Rica

Continuous Use Temperature Range

-76°F (-60°C) - 185°F (85°C)

Color

Natural

Certificate of Conformity

N

CE Marking

Yes

CE Compliant

Yes

Lead Content Indicator

N

Length (In.)

5.6

Max. Bundle Dia. (In.)

1.25

Material Grade

Polyamide PA

Material Flammability Rating

UL 94V-2

Material

Nylon 6.6

Bundle Diameter Range In. (mm)

0.06 (1.5) - 1.25 (32)

Master Weight

60.62705

Marker/Flag Tie Labeling Area

None

Master Pack Quantity

50

Locking Style

Locking

Markers Per Card

Yes

UPC

7498354011

TYPE

Locking Tie

Size

Approx 1.5"

Cross Section (IPNS)

Miniature

Screw Hole Size

None

Package Size

1000

Material/Color

Nylon 6.6 / Natural

Design Feature

One-piece locking wedge provides consistent, reliable performance

Threading Force

Low - reduces operator fatigue
