PLT1.5I-C30

Panduit | In Stock | Panduit-Electrical
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

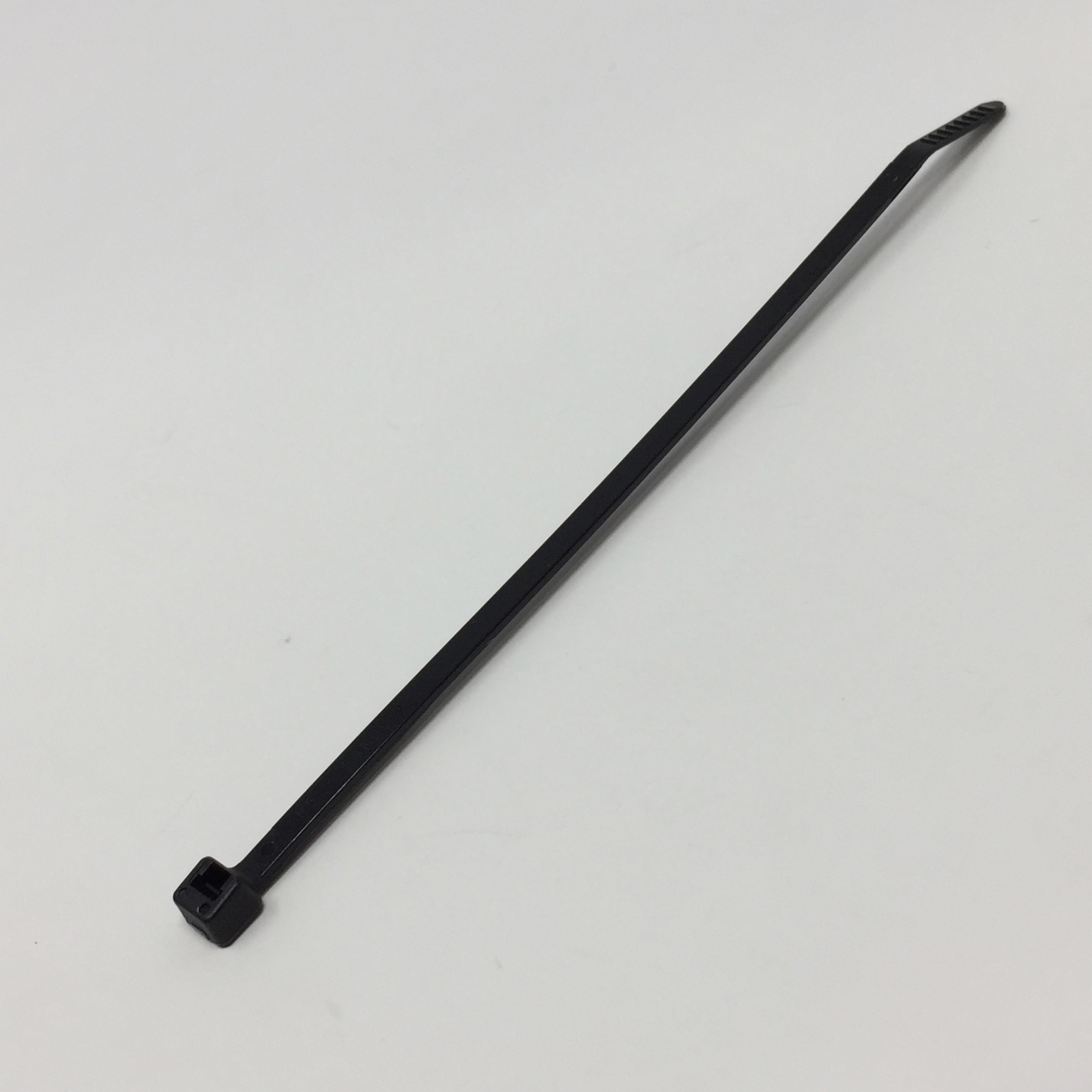

Factory Standard Pack = 100: Cable Tie, 5.6 Inches (142 mm) Length, Intermediate, 40 Pounds Minimum Loop Tensile Strength, Heat Stabilized Nylon 6.6, Black. Material Flammability Rating of V-2. Heat Stabilized material for high temperature applications up to 239 degrees Fahrenheit (115 degrees Celsius). Indoor use. One-piece construction for consistent performance and reliability. Low thread force. Curved tip design is easy to pick up from flat surfaces and allows faster initial threading to spe

$0.15

Min: 1  Mult: 1

Product Attributes

Width (In.)

0.142

Standards

UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854

Stable to Vibration

No

Shelf Life

1440

Sell Pack Packaging Description

BAG

Restricted Use of Hazardous Substances

N

Plenum-Rated

No

Operating Temperature

-76°F (-60°C) - 239°F (115°C)

MSDS Indicator

N

Min. Loop Tensile Strength Lbs. (N)

40 (178)

Min. Loop Tensile Strength (N)

178

Min. Loop Tensile Strength (Lbs.)

40

Std Carton Height

5.75

Std Carton Length

10.25

Std Carton Width

6.62

UV Resistant

No

UNSPSC

39121703

Unit Weight

.002

Unit Volume

.000226

UL Recognized

Yes

UL Listed (File #E56854)

Yes

Tool

GTS-E, GS2B, PTS, PPTS, STS2

Thickness (In.)

0.045

Surface Treatment

Untreated

Suggested Index Terms

Cable ties, zip ties, tie-wraps

Stud Size

No

Min. Bundle Diameter (In.)

0.06

Max. Continuous Use Temperature

239°F (115°C)

Max. Bundle Dia. (In.)

1.38

Head Width (In.)

0.240

Head Height (In.)

0.180

Hazardous Material

N

Environment

Indoor

CSA Certified

Yes

Cross Section

Intermediate

Country of Origin Description

Singapore

Continuous Use Temperature Range

-76°F (-60°C) - 239°F (115°C)

Color

Black

Certificate of Conformity

N

CE Marking

Yes

CE Compliant

Yes

Installation Temperature

-4°F (-20°C) - 32°F (0°C)

Lead Content Indicator

N

Length (In.)

5.6

Material Grade

Other

Material Flammability Rating

UL 94V-2

Material

Heat Stabilized Nylon 6.6

Master Weight

2

Bundle Diameter Range In. (mm)

0.06 (1.5) - 1.38 (35)

Master Pack Quantity

10

Locking Style

Locking

Markers Per Card

Yes

Marker/Flag Tie Labeling Area

None

UPC

7498354744

TYPE

Locking Tie

Size

Approx 1.5"

Cross Section (IPNS)

Intermediate

Screw Hole Size

None

Package Size

100

Material/Color

Heat Stabilized Nylon 6.6 / Black

Design Feature

One-piece locking wedge provides consistent, reliable performance

Threading Force

Low - reduces operator fatigue
