PLP2S-M

Panduit | In Stock | Panduit-Electrical
green-check-icon Total Stock: 1000
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

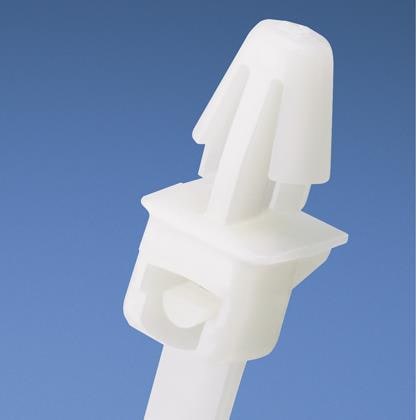

Factory Standard Pack = 1000: Push Mount Tie, 7.9 Inches (200 mm) Length, Standard, Nylon, Natural. For indoor use. Wingless design allows tie to be used in confined spaces. Cable tie, mount and fastener in a single part. Economical push mount ties are used to attach bundles to another surface such as a flat panel. Anchor is easily pressed into a pre-formed hole and locks in place. Curved tip is easy to pick up from flat surfaces and allows faster initial threading.: Prices available while suppl

$0.18

Min: 1  Mult: 1

Product Attributes

Width (In.)

0.190

Stable to Vibration

No

Ship Pkg Qty 1

1

Shelf Life

1440

Sell Pack Packaging Description

BAG

Restricted Use of Hazardous Substances

N

Plenum-Rated

No

Operating Temperature

-76°F (-60°C) - 185°F (85°C)

Nominal Hole Diameter (In.)

0.250

MSDS Indicator

N

MSDS Doc Name

N

Min. Loop Tensile Strength Lbs. (N)

50 (222)

Min. Loop Tensile Strength (N)

222

Standards

UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854

Std Carton Height

14.4

Std Carton Length

22

UV Resistant

false

UNSPSC

39121703

Unit Weight

.0036

Unit Volume

.000255

UL Recognized

No

UL Listed (File #E56854)

Yes

Tool

GTS-E, GS2B, GTH-E, GS4H, PTS, PTH, PPTS, STS2, STH2

Thickness (In.)

0.050

Surface Treatment

Untreated

Suggested Index Terms

Cable ties, zip ties, tie-wraps

Stud Size

Yes

Std Carton Width

14.6

Min. Loop Tensile Strength (Lbs.)

50

Min. Bundle Diameter (In.)

0.06

Lead Content Indicator

N

Installation Temperature

-4°F (-20°C) - 32°F (0°C)

Head Height (In.)

0.354

Hazardous Material

N

Environment

Indoor

CSA Certified

Yes

Cross Section

Standard

Country of Origin Description

Singapore

Continuous Use Temperature Range

-76°F (-60°C) - 185°F (85°C)

Color

Natural

Certificate of Conformity

N

CE Marking

Yes

CE Compliant

Yes

Length (In.)

7.9

Locking Style

Locking

Bundle Diameter Range In. (mm)

.06 - 1.75 ( 1.5 - 45)

Material Grade

Polyamide PA

Max. Continuous Use Temperature

185°F (85°C)

Max. Panel Thickness (In.)

0.125

Material Flammability Rating

UL 94V-2

Material

Nylon 6.6

Max. Panel Thickness In. (mm)

0.125 (3.2)

Master Weight

36

Master Pack Quantity

10

Marker/Flag Tie Labeling Area

None

Max. Bundle Dia. (In.)

1.75

UPC

7498355511

TYPE

Locking Push Mount

Size

Approx 2.0"

Cross Section (IPNS)

Standard

Screw Hole Size

None

Package Size

1000

Material/Color

Nylon 6.6 / Natural

Design Feature

One-piece locking wedge provides consistent, reliable performance

Threading Force

Low - reduces operator fatigue
