PLC1M-S4-M30

Panduit | DELPANDT | Panduit-Electrical
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

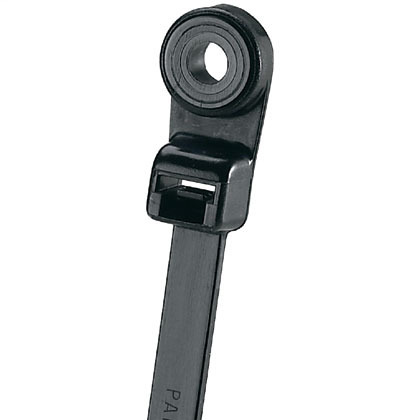

Factory Standard Pack = 1000: Clamp Tie. 4.3 Inches (109 mm) Length, No. 4 (M2.5) Screw, Miniature Cross Section. Black. Heat stabilized material for high temperature applications up to 239 degrees Fahrenheit (115 degrees Celsius). Indoor use. Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling. Design allows for bundling before or after screwing clamp in place. One-piece construction for consistent performance and reliability. Curved tip

$999.999

Min: 1  Mult: 1

Product Attributes

Width (In.)

0.100

Std Carton Height

20.9

Standards

UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854

Stable to Vibration

No

Shelf Life

1440

Sell Pack Packaging Description

BAG

Screw Size Metric

M2.5

Screw Size

#4

Restricted Use of Hazardous Substances

N

Plenum-Rated

No

Operating Temperature

-76°F (-60°C) - 239°F (115°C)

Nominal Hole Diameter (In.)

0.122

Std Carton Length

22

Std Carton Width

14.6

Stud Size

Yes

Web Width (In.)

0.239

UV Resistant

false

UNSPSC

39121703

Unit Weight

.0009

Unit Volume

.0000764

UL Recognized

No

UL Listed (File #E56854)

Yes

Tool

GTS-E, GS2B, PTS, PPTS, STS2

Thickness (In.)

0.045

Surface Treatment

Untreated

Suggested Index Terms

Cable ties, zip ties, tie-wraps

MSDS Indicator

N

Min. Loop Tensile Strength Lbs. (N)

18 (80)

Min. Loop Tensile Strength (N)

80

Hazardous Material

N

Environment

Indoor

CSA Certified

Yes

CSA 22.2 No.62-93

0.153

Cross Section

Miniature

Country of Origin Description

Singapore

Continuous Use Temperature Range

-76°F (-60°C) - 239°F (115°C)

Color

Black

Certificate of Conformity

N

CE Marking

Yes

CE Compliant

Yes

Installation Temperature

-4°F (-20°C) - 32°F (0°C)

Length (In.)

4.3

Locking Style

Locking

Min. Loop Tensile Strength (Lbs.)

18

Min. Bundle Diameter (In.)

0.06

Max. Continuous Use Temperature

239°F (115°C)

Max. Bundle Dia. (In.)

0.75

Material Grade

Other

Material Flammability Rating

UL 94V-2

Material

Heat Stabilized Nylon 6.6

Master Weight

45

Master Pack Quantity

50

Markers Per Card

No

Marker/Flag Tie Labeling Area

None

Bundle Diameter Range In. (mm)

0.06 (1.5) - 0.75 (19)

UPC

7498355584
