P18-38R-C

Panduit | In Stock | Panduit-Electrical
green-check-icon Total Stock: 100
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

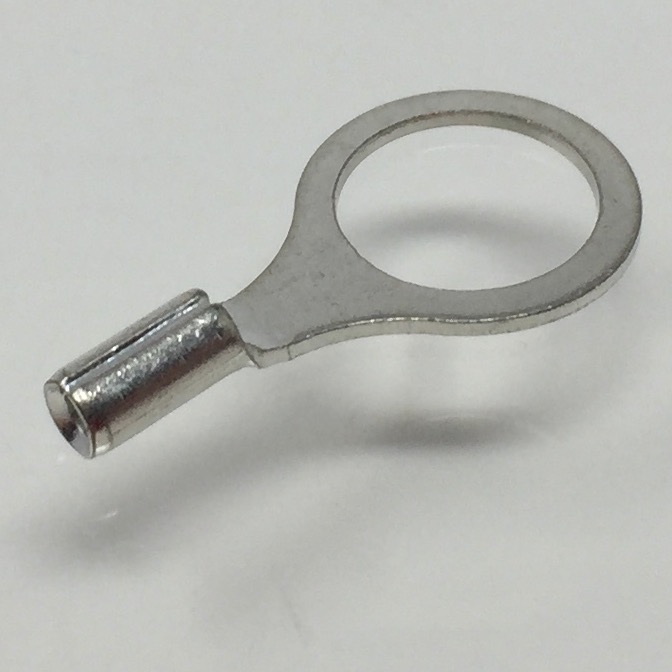

Factory Standard Pack = 100: Ring Terminal, Non-Insulated, 22 - 16 American Wire Gauge (AWG), 3/8 Inch Stud Size. Ring tongue design assures a secure connection in high vibration applications. Internal barrel serrations assure good wire contact and maximum tensile strength. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel of terminal internally beveled to provide quick and easy wire insertion. Maximum recommended operating temperature 302 degrees Fahrenheit (1

$0.29

Min: 1  Mult: 1

Product Attributes

Barrel Type

Brazed Seam

Std Carton Height

3.6

Std Carton Length

9.7

Std Carton Width

3.7

Surface Treatment

Tinned

Temperature Rating

302 Degrees Fahrenheit (150 Degrees Celsius)

Tool

CT-100A, CT-200, CT-600-A, CT-1570, CT-2500

Type

Brazed Seam

UL 62275 Compliant (Type 2

3/8"

UL Listed

UL486A-486B

UL Recognized (File #E56854)

Standard

Unit Volume

.000075

Unit Weight

.00255

UNSPSC

39121409

Width (In.)

0.53

Wire Range

22 - 16 AWG

Sell Pack Packaging Description

BTL

Plating Type

Tinned

Base Material

Copper

CE Compliant

No

CE Marking

No

Country of Origin Description

Mexico

CSA Certified

C22.2 No. 65

Hazardous Material

N

Insulation

Non-Insulated

Length (In.)

1.00

Master Pack Quantity

10

Master Weight

2.55

Max. Voltage Rating

2000 V

MSDS Indicator

N

NAFTA Country of Origin

MX

Packaging

Bottle

Panduit Color Code

Metallic

Wire Strip Length (In.)

9/32" (.2812)

UPC

7498380212
