LCD6-14B-L

Panduit | In Stock | Panduit-Electrical
green-check-icon Total Stock: 50
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

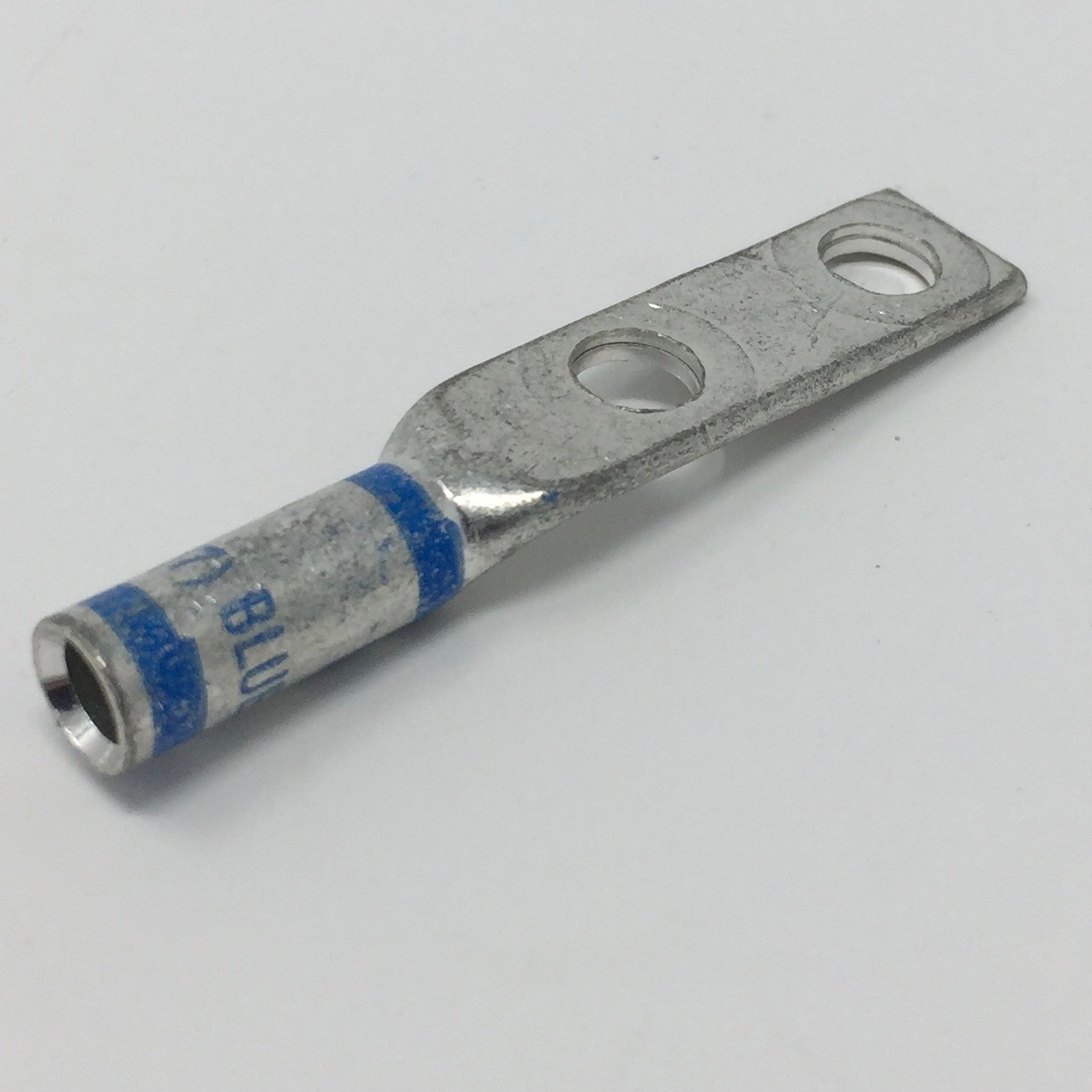

Factory Standard Pack = 50: Copper Compression Lug, 2 Hole, No. 6 American Wire Gauge (AWG), 1/4 Inch (6.4 mm) Stud, 0.75 Inch (19.1 mm) Hole Spacing, Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection, Inspection window to visually assure full conductor insertion, Tin-plated to inhibit corrosion, UL Listed and CSA Certified to 35 KV and temperature rated to 90 Degrees C when crimped with Panduit and specified competitor crimping too

$5.43

Min: 1  Mult: 1

Product Attributes

Wire Strip Length (In.)

7/8

Surface Treatment

Tinned

Suggested Index Terms

copper compression lug, 2 hole,standard barrel

Stud Hole Spacing In. (mm)

0.75 (19.1)

Stud Hole Spacing (In.)

0.75

Stud Hole Size In. (mm)

1/4 (6.4)

Stud Hole Size (In.)

1/4

Ship Pkg Qty 1

1

Sell Pack Packaging Description

BOX

Restricted Use of Hazardous Substances

N

Panduit Die Index No.

P24

Technical Information

Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V

Tongue Thickness

0.08

UNSPSC

39121405

Unit Weight

.0277

Unit Volume

.0004167

UL Listed

486A-486B

UL and CSA Voltage Rating

35kV

UL and CSA Temperature Rating

90°

Tongue Width In. (mm)

0.48 (12.2)

Tongue Width (In.)

0.48

Tongue Type

Standard

Tongue Thickness In. (mm)

0.08 (2)

Panduit Color Code

Blue

NAFTA Country of Origin

MX

MSDS Indicator

N

Conductor Size

#6 AWG Code

Conductor Material

Copper

Code Conductor Size

#6 AWG Code

Certificate of Conformity

N

CE Marking

No

CE Compliant

No

Barrel Type

Standard Barrel Length with Inspection Window

Barrel Style

Standard

Barrel Length In. (mm)

0.81 (20.6)

Barrel Length (In.)

0.81

Copper Cond. Size

#6 AWG

Corona Relief Taper

No

MSDS Doc Name

N

Meets ASTM B545-97

320µ in (8µ m)

Material

Tin-Plated Copper

Master Weight

1.385

Master Pack Quantity

1

Length (In.)

2.36

Lead Content Indicator

N

Hazardous Material

N

CSA Certified

C22.2 No. 65-13

Country of Origin Description

Mexico

Angle (Orientation)

Straight

UPC

7498338311
