DNFR14-206FIB-L

Panduit | In Stock | Panduit-Electrical
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
Factory Standard Pack = 50: Right angle design for use in limited space applications. Fully insulated design provides protection from electrical shorts. Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection. Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 Degrees Fahrenheit (105 Degrees Celsius). UL and CSA rated u

$0.79

Min: 1  Mult: 1

Product Attributes

Wire Range

16 - 14 AWG

Style

Female Disconnect - Right Angle

Std Carton Width

1.8

Std Carton Length

9.1

Std Carton Height

3.6

Standards

UL 310 Listed

Ship Pkg Qty 1

1

Shelf Life

0

Sell Pack Packaging Description

BTL

Restricted Use of Hazardous Substances

N

Plating Type

Tinned

Suggested Index Terms

Terminal, Connector, Female, Receptacle, Disconnect, Right Angle, Flag, Solderless, Crimp

Tab Size (In.)

0.205/0.187 x 0.020

Width (In.)

0.37

UNSPSC

39121409

Unit Weight

.0036

Unit Volume

.000136

UL Recognized (File #E56854)

Funnel Entry

UL Listed

Yes

Type

Standard Barrel

Tool

CT-300-1

Temperature Rating

221 Degrees Fahrenheit (105 Degrees Celsius)

Tab Size In. (mm)

0.205/0.187 x 0.020 (5.2/4.7 x 0.5)

Panduit Color Code

Blue

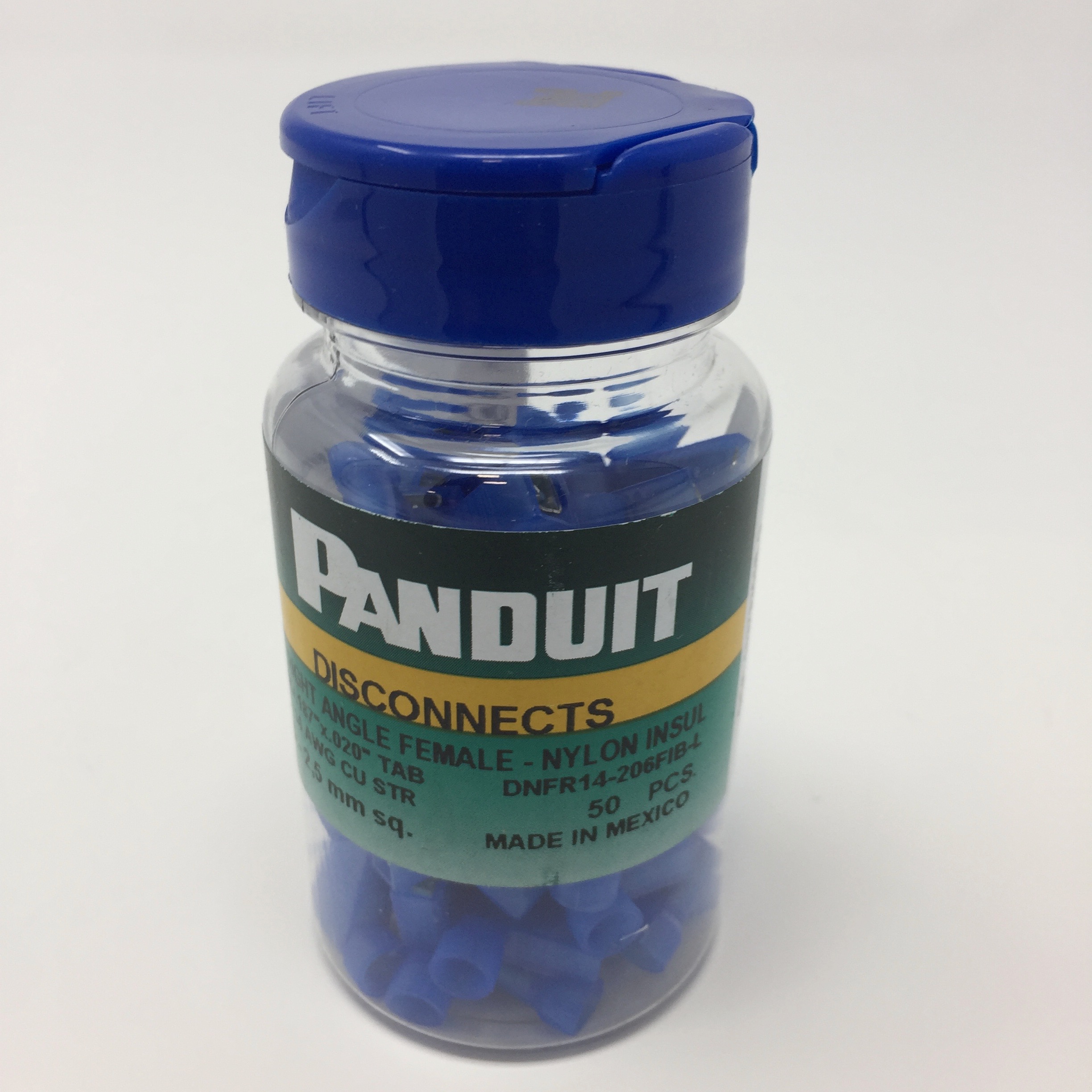

Packaging

Bottle

Note

DNFR14-206FIB-L replaces DNFR14-206FIB-C

Flammability Rating

HB

Fitting Type

0.178 (4.58)

Depth (In.)

0.60

CSA Certified

C22.2 No.153

Country of Origin Description

Mexico

Certificate of Conformity

N

CE Marking

No

CE Compliant

No

Base Material

Brass

Barrel Type

Butted Seam

Hazardous Material

N

Height (In.)

0.21

NAFTA Country of Origin

MX

MSDS Indicator

N

MSDS Doc Name

N

Model (Design)

Sleeve

Max. Voltage Rating

600V

Master Weight

.9

Master Pack Quantity

5

Length (In.)

0.58

Lead Content Indicator

Y

Insulation

Nylon - Fully Insulated

Barrel Configuration

0.178

UPC

7498312025
