DNF18-250FIB-C

Panduit | In Stock | Panduit-Electrical
green-check-icon Total Stock: 100
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

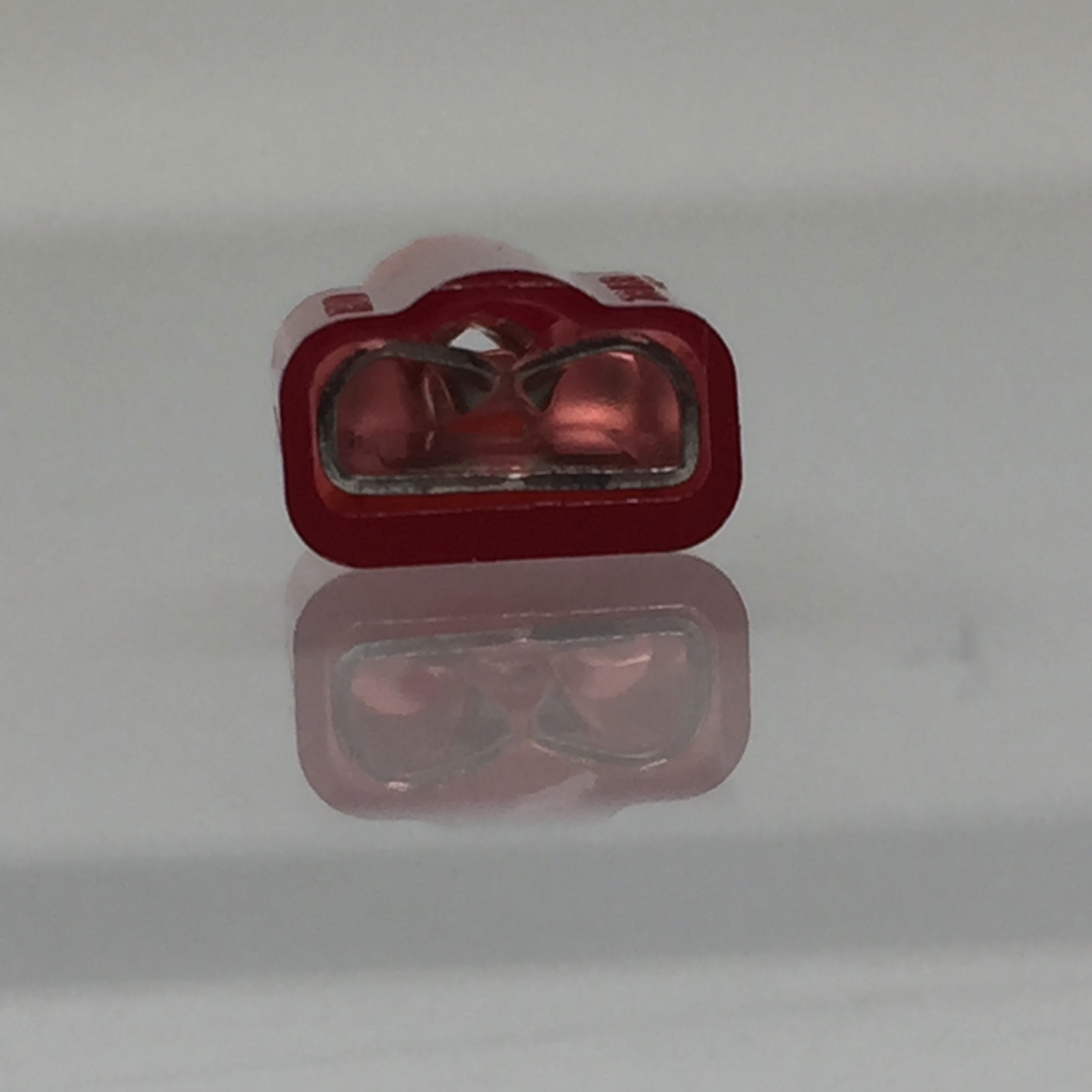

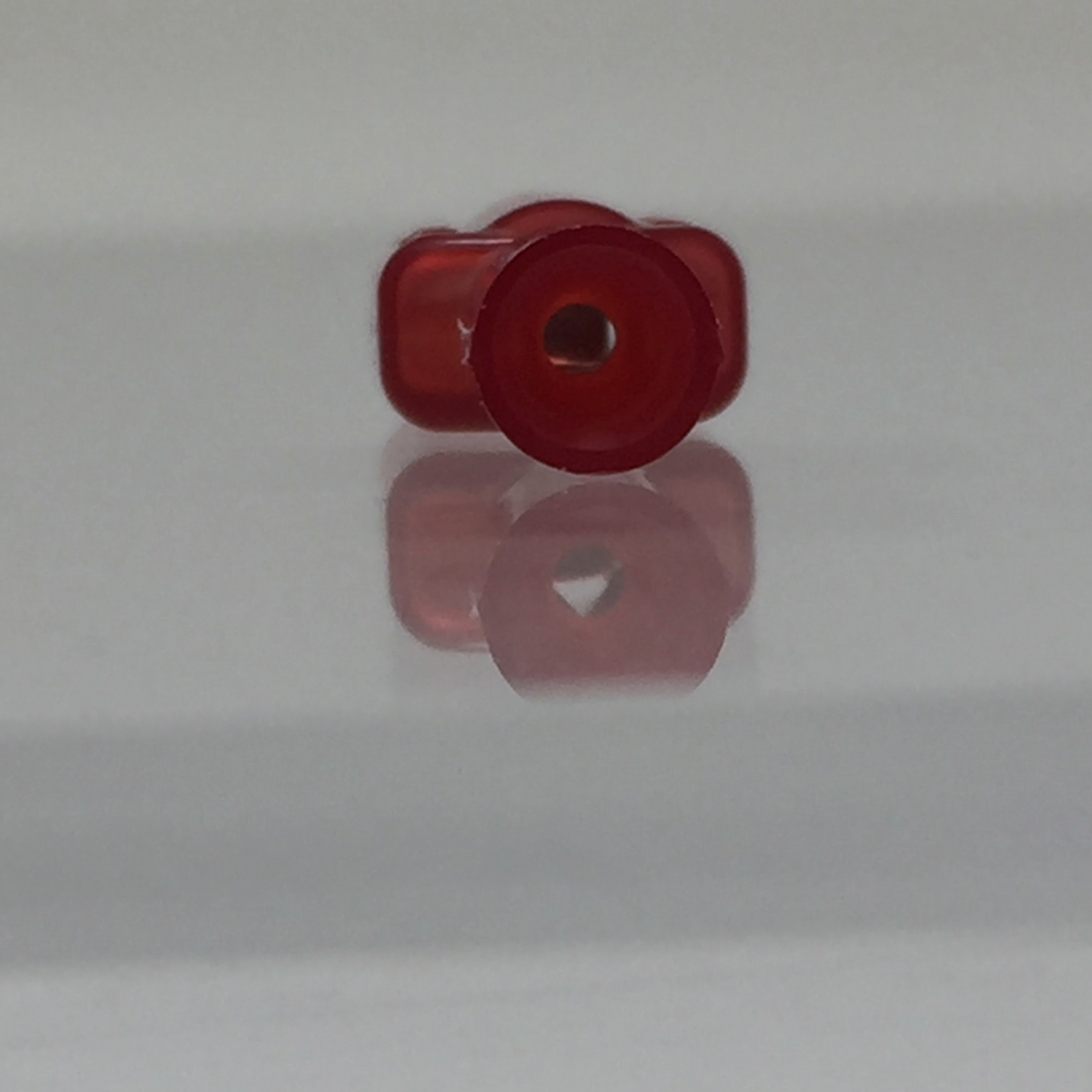

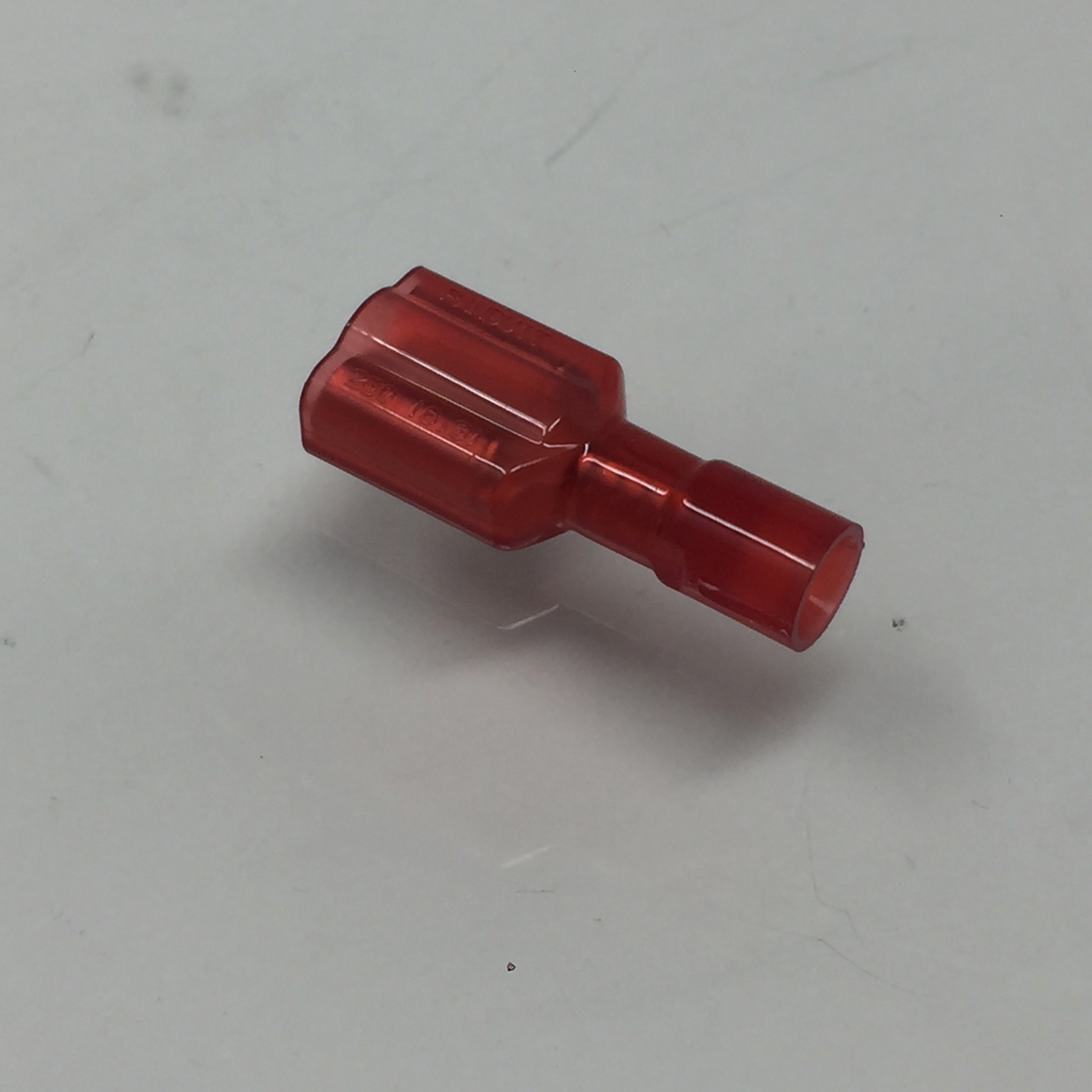

Factory Standard Pack = 100: Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost. Fully insulated design provides protection from electrical shorts. Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 Degrees Fahrenheit (105 Degrees Celsius). UL and CSA rated up to 600 Volts per UL 310.: Prices available while suppli

$0.65

Min: 1  Mult: 1

Product Attributes

Wire Range

22 - 18 AWG

Style

Female Disconnect

Std Carton Width

4

Std Carton Length

9.9

Std Carton Height

4.3

Standards

UL 310 Listed

Ship Pkg Qty 1

1

Sell Pack Packaging Description

BTL

Restricted Use of Hazardous Substances

N

Plating Type

Tinned

Suggested Index Terms

Terminal, Connector, Female, Receptacle, Disconnect, Solderless, Crimp

Tab Size (In.)

0.250 x 0.032

Tab Size In. (mm)

0.250 x 0.032 (6.3 x 0.8)

Width (In.)

0.35

UNSPSC

39121409

Unit Weight

.0027

Unit Volume

.00035

UL Recognized (File #E56854)

Funnel Entry

UL Listed

Yes

Type

Fully Insulated

Tool

CT-100A, CT-600-A, CT-1525, CT-2500

Temperature Rating

221 Degrees Fahrenheit (105 Degrees Celsius)

Panduit Color Code

Red

Packaging

Bottle

NAFTA Country of Origin

MX

Fitting Type

0.136 (3.5)

CSA Certified

C22.2 No.153

Country of Origin Description

Mexico

Color

Red

Certificate of Conformity

N

CE Marking

No

CE Compliant

No

Base Material

Brass

Barrel Type

Butted Seam

Flammability Rating

HB

Hazardous Material

N

Height (In.)

0.22

MSDS Indicator

N

MSDS Doc Name

N

Model (Design)

Sleeve

Max. Voltage Rating

600V

Master Weight

2.7

Master Pack Quantity

10

Length (In.)

0.84

Lead Content Indicator

Y

Insulation

Nylon - Fully Insulated

Barrel Configuration

0.136

UPC

7498382711
