CB70-14-CY

Panduit | In Stock | Panduit-Electrical
green-check-icon Total Stock: 2
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

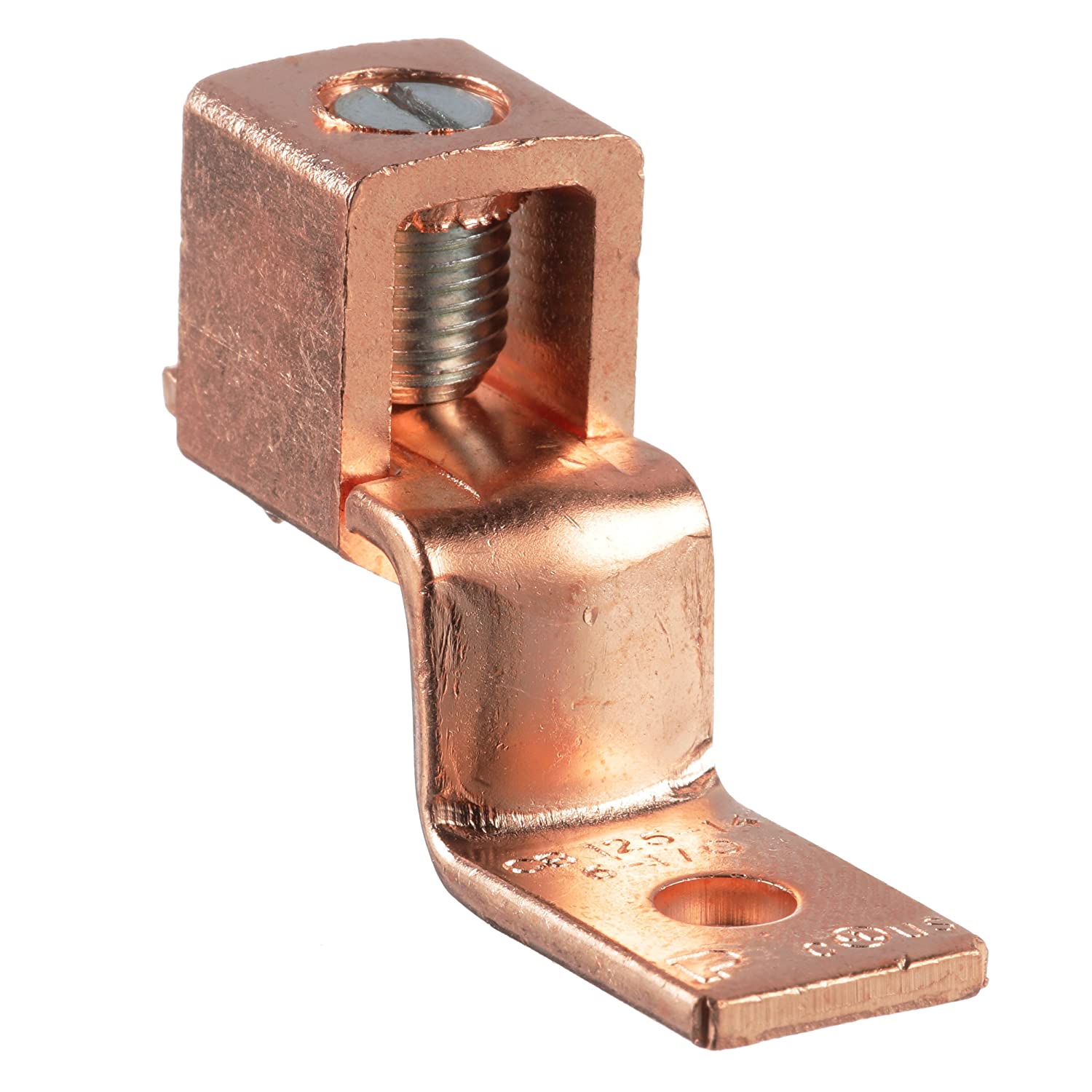

Factory Standard Pack = 100: Copper Mechanical Lug, 1 Hole, 1 Barrel, Offset Tongue, No. 12 - No. 2 American Wire Gauge (AWG), 1/4 Inch (6.4 mm) Stud, Made from high strength electrolytic copper to provide premium electrical and mechanical performance, Wide wire range-taking capability minimizes inventory requirements, Internal pressure bar and V-bottom collar provide uniform clamping force on conductor to assure positive contact between conductor and connector, Inspection window to visually ass

$2.11

Min: 1  Mult: 1

Product Attributes

CE Compliant

No

No. of Conductors

1

No. of Holes

1

Restricted Use of Hazardous Substances

Y

Sell Pack Packaging Description

BOX

Ship Pkg Qty 1

1

Stud Hole Size (In.)

1/4

Suggested Index Terms

off set floating tongue copper connector

Surface Treatment

Other

Tightening Torque (In-Lbs)

#8 AWG = 25, #6-#3 AWG = 35, #2 AWG = 40

Tongue Length

0.80

Tongue Thickness

0.08

Tongue Type

Offset Floating Tongue

Tongue Width (In.)

0.47

UL Listed

Yes

Unit Volume

.0003646

Unit Weight

.0438

UNSPSC

39121408

NAFTA Country of Origin

MX

MSDS Indicator

N

MSDS Doc Name

N

CE Marking

No

Certificate of Conformity

N

Conductor Material

Copper

Conductor Size

#8 AWG Code - #2 AWG Code

Conduit Hub Size

0.50

Copper Conductor Size Range

#8 AWG - #2 AWG

Country of Origin Description

India

CSA Certified

Yes

Current Rating (Amps)

90

Hazardous Material

N

Height (In.)

0.64

Hex Size (In.)

**

Lead Content Indicator

Y

Length (In.)

1.55

Master Pack Quantity

1

Master Weight

4.38

Material

Copper

UPC

7498358226
