BLC-106-G

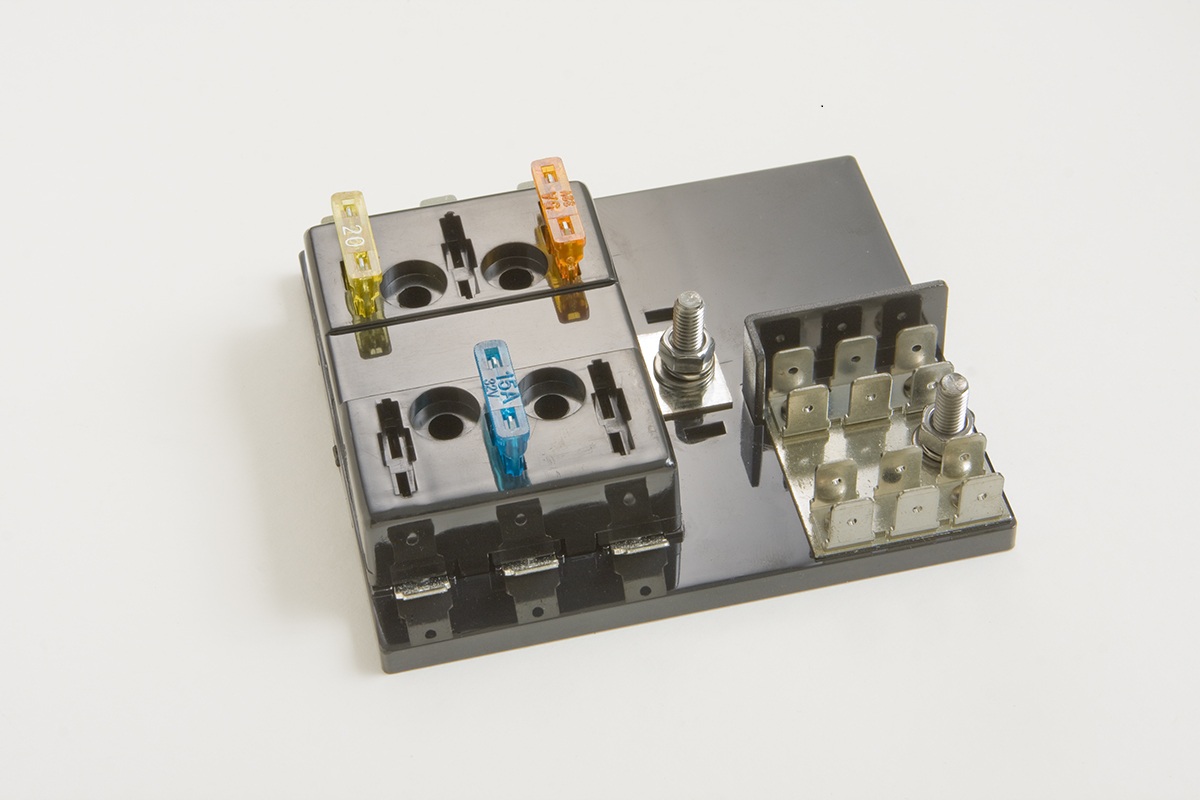

Type BLC-106-G: Fuse Block - 6 Pole – Regular Auto Blade Type With 12 Position Grounding Block
Specifications:
Max Current Rating: 25A per Circuit - 150A Max Input
Max Voltage: 32VDC
Fuse Type: Regular Auto Blade (APR series),
Regular Automotive Circuit Breakers (ACBP4-PL and MRCBP4-PL series)
Base: Polycarbonate
Load-side Connection: 0.250” Quick Connect Terminals - Copper, Tin plated
Line-side Connection: #10-32 stud terminal with hex nut, flat washer, lockwasher (hardware provided)
Mounting: 5.5mm diameter mounting holes for #10 screws (not provided)
Optional Cover available
