NHD-3.5-320240FT-CSXP-T

Newhaven | EVE2 TFT Modules | Optoelectronics
green-check-icon Total Stock: 2
yellow-timer-icon Factory Lead Time: 126
onlycheckmark RoHs Compliant

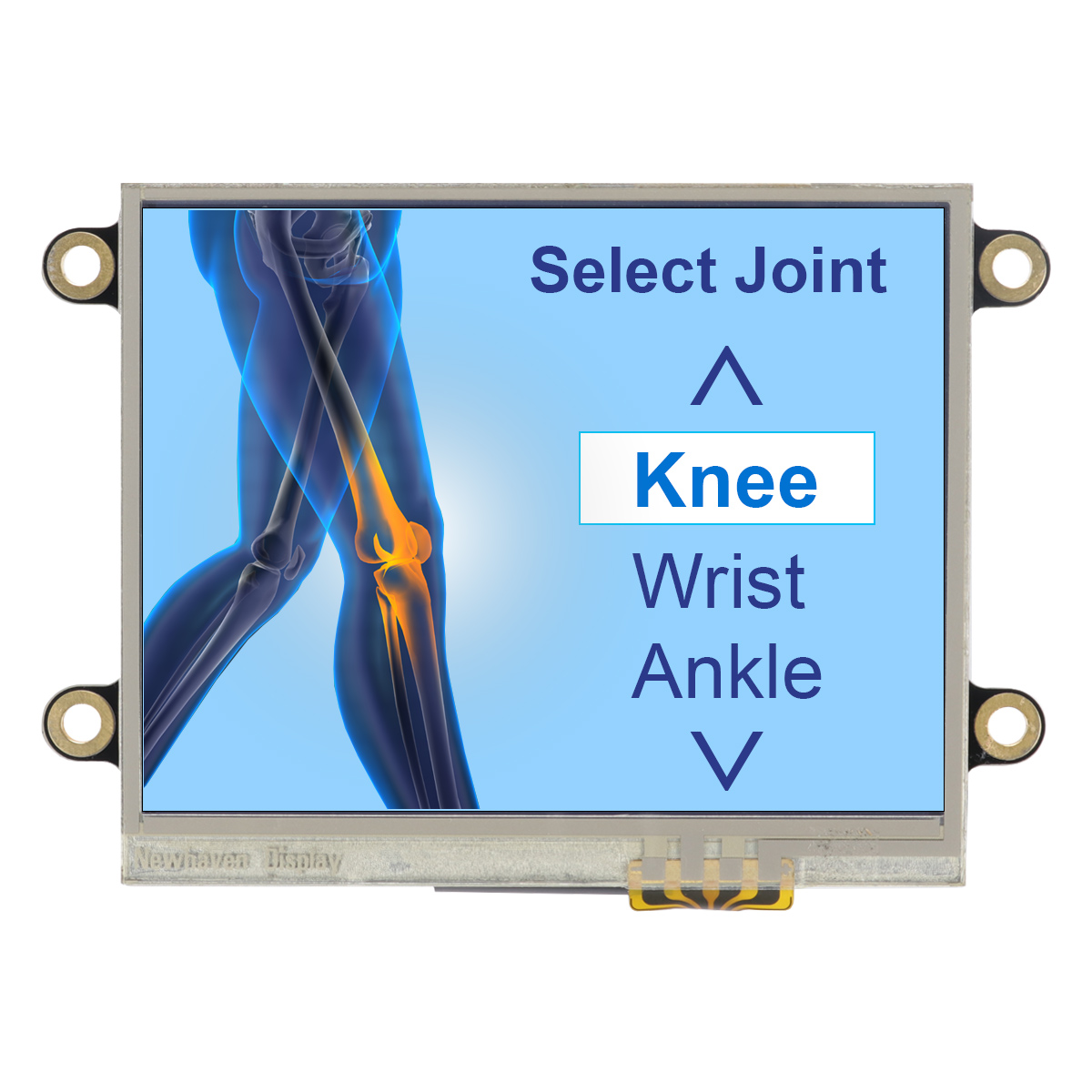

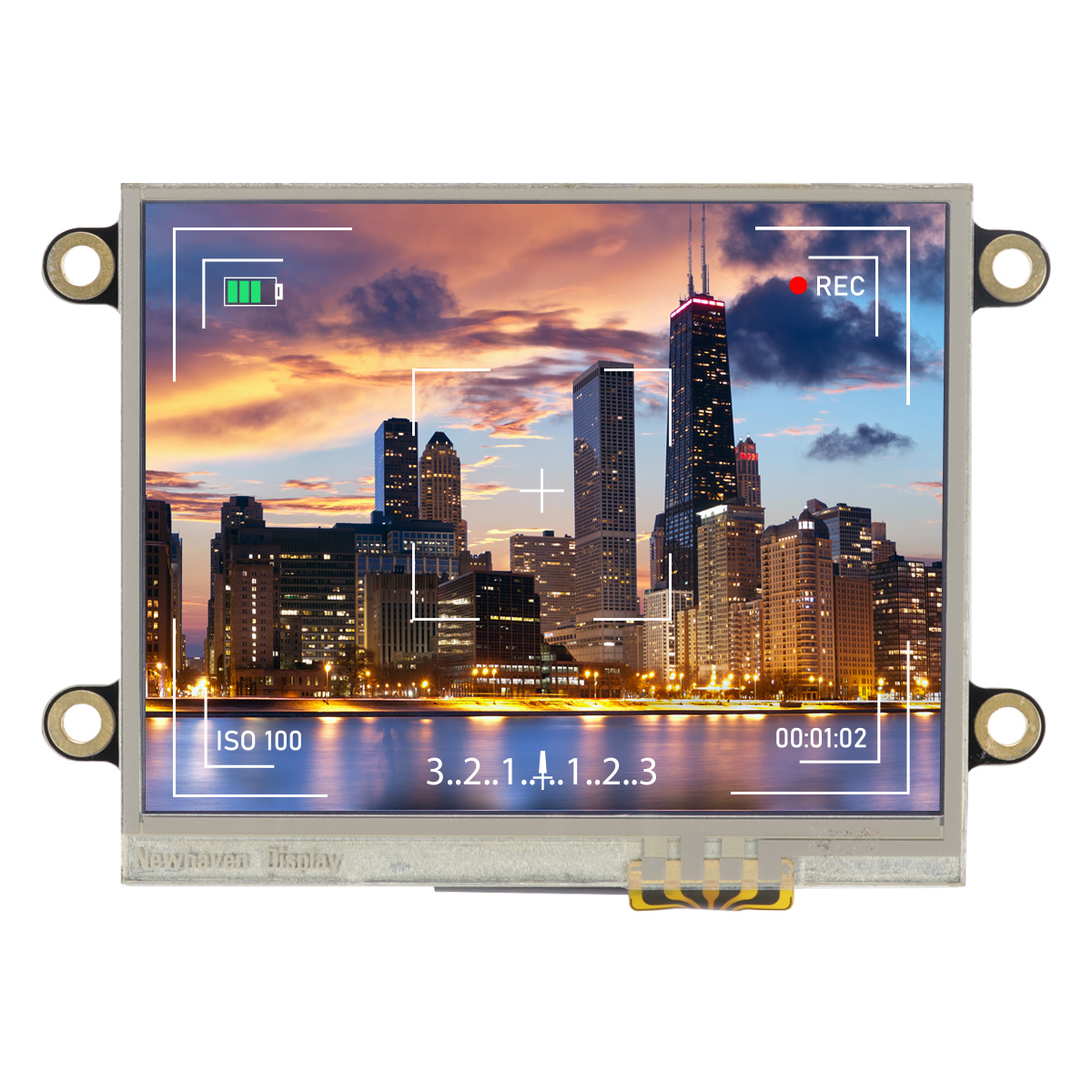

Newhaven 3.5 Inch IPS TFT EVE2 w/ Resistive Touch Display with Display Format 320 x 240 Screen Diagonal Size 3.5 Inches Using SPI/D-SPI/Q-SPI Interface Full Part Number: NHD-3.5-320240FT-CSXP-T

$84.90

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

9 reported as of 02/06/24 Allow 2 days for transfer

REACH Compliant

Yes

Product Spec

Click Here

Operating Temp.

(-20C to +70C)

Product Photo

Click Here

Size Diagonal (In)

3.5

PACKAGING TYPE

Bulk/Tray/Box

Outline Dimension

76.9 x 63.9 x 15.7 mm

Operating Temp

(-20C to +70C)

Back Light (LED)

3.3 V/280mA; 900 cd/m2

REACH Compliant?

Yes

Registerable

Yes

Size Diagonal

3.5

Step File Links

Click Here

Stock Status

Stocked

VIEW

Full

NAFTA Compliant

No

MSL

Maintain in Room Temp.

CAGE CODE

7XUK2

Connector Type

(CN1): Male IDC Box Header; 20-pin, 2x10, 2.54mm pitch (CN2): Top-contact FFC Connector; 20-pin, 1.00mm pitch

Controller

FT812

Data Links

Click Here

Display Format

320 x 240 Pixels

Display Mode

Transmissive

Display Type

IPS TFT LCD

Image Links

Click Here

Voltage Supply

3.3 V

Interface

SPI/D-SPI/Q-SPI

Is Dry Pack Required?

No

Is Part LEAD(Pb) FREE

Yes

Is Part STATIC Sensitive

Yes

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

18

Dry Pack Required

No

STATIC Sensitive

Yes

Step File Name

https://newhavendisplay.com/content/3D/NHD-3.5-320240FT-CSXP-T.zip

Status

Stocked
