NHD-0216SZ-FL-GBW

Newhaven | LCD Character | Optoelectronics
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant

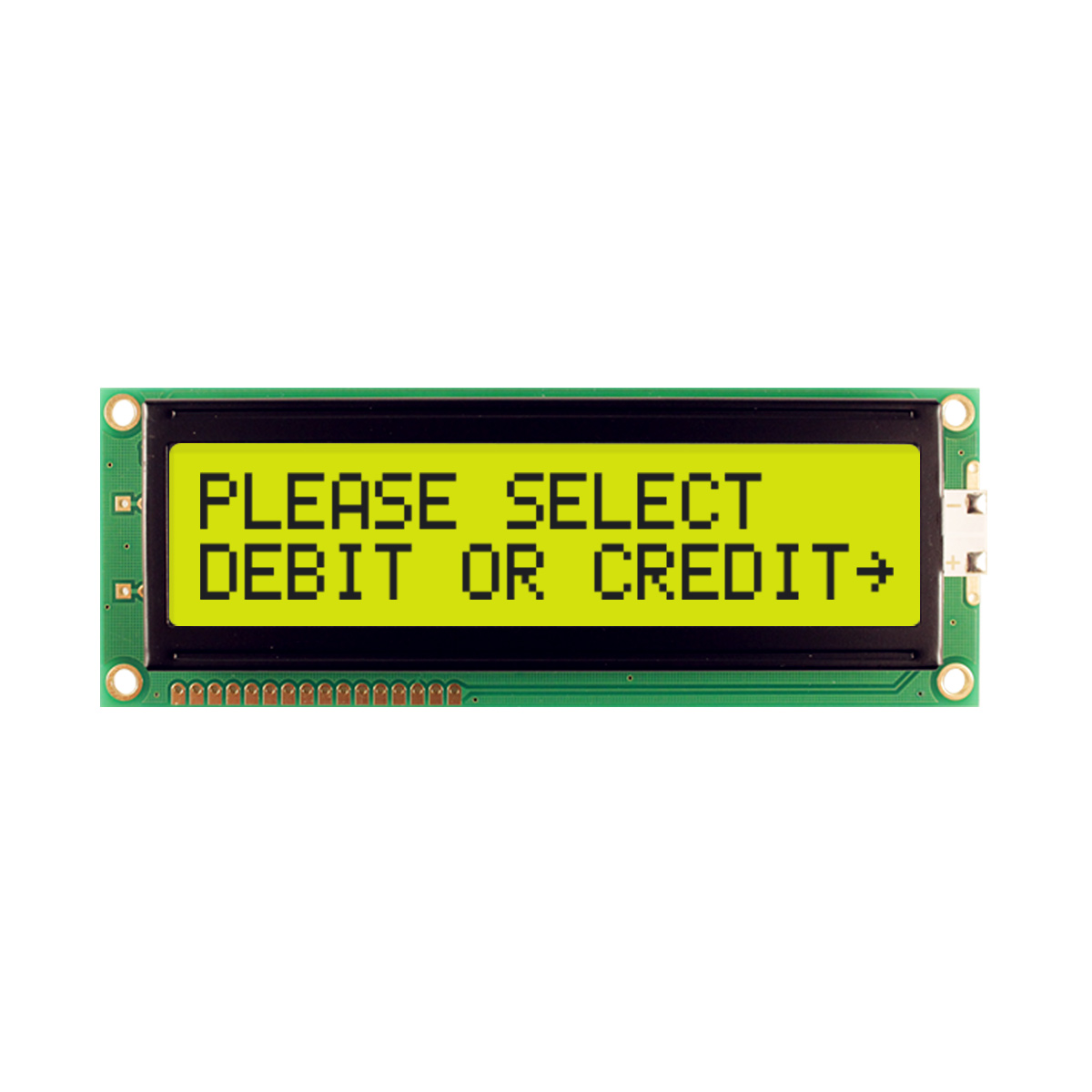

No longer available for sale Newhaven 2 x 16 Characters Transflective LCD Character Display @ 5V and 8-Bit Parallel Interface with 1x16 Bottom Connector and SPLC780D OR ST7066U Controller. PN - NHD-0216SZ-FL-GBW

$15.50

Min: 1  Mult: 1

Product Attributes

Remote Warehouse

0 reported as of 12/10/21 Allow 2 days for transfer

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Back Light (LED)

Yellow/Green

REACH Compliant

Yes

Product Spec

Click Here

Product Photo

Click Here

Operating Temp.

(-)20 ~ (+)70

Display Type

STN- GRAY

Display Format

2 x 16 Characters

Outline Dimension

122.0 x 44.0

Display Mode

Transflective

MSL

Maintain in Room Temp.

LEAD(Pb) FREE

Yes

PACKAGING TYPE

Bulk/Tray/Box

Controller

SPLC780D OR ST7066U

Character Size CH x CW

9.55 x 5.20

VIEW

6:00

Connector Type

1x16 Bottom

Voltage Supply

5V

Interface

8-Bit Parallel

Dry Pack Required

No

STATIC Sensitive

Yes

NAFTA Compliant

No

Step File Name

www.newhavendisplay.com/docs/STEPFiles/NHD-0216SZ.zip

CAGE CODE

7XUK2

Status

Stocked

Display Screen Size.

2 x 16 Characters

Family.

Model SZ

Polarizer.

Transflective

Backlight.

Yellow/Green Array

Display Mode.

STN Gray

View Angle.

6:00 O'clock

Operating Temperature.

Wide -20C to +70C

Special (x)

None

Not available at this time.
