NHD-7.0-800480FT-CSXV-CTP

Newhaven | EVE2 TFT Modules | 7.0 Inch TFTs
yellow-timer-icon Factory Lead Time: 112
onlycheckmark RoHs Compliant

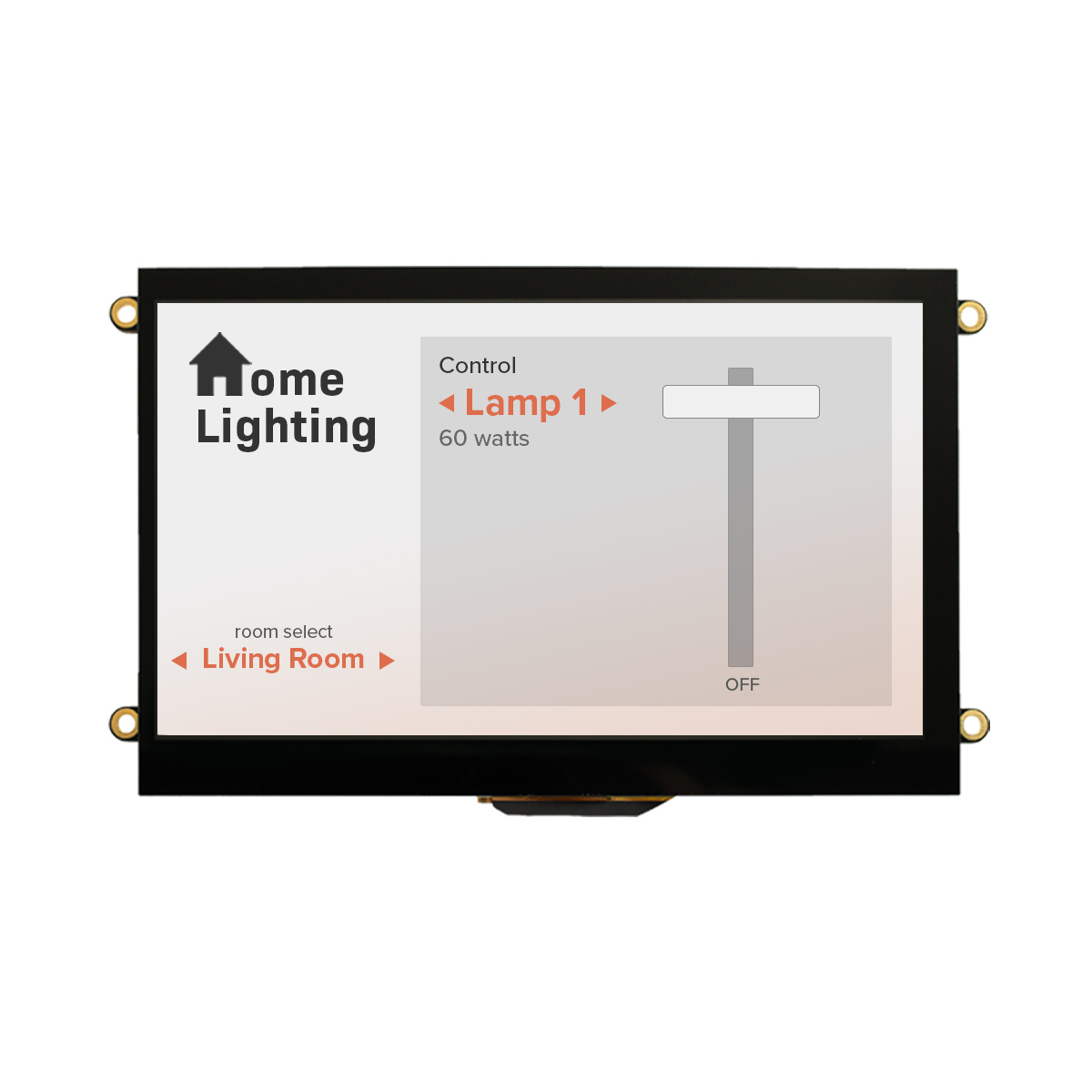

Newhaven 800x480 Transmissive 7(Inch) EVE2 TFT Prem. Module Cap. Touch @ 3.3 and SPI Interface Interface with (CN1): Male IDC Box Header; 20-pin; 2x10; 2.54mm pitch (CN2): Top-contact FFC Connector; 20-pin; 1.00mm pitch Connector and FT813 Controller. PN - NHD-7.0-800480FT-CSXV-CTP

$170.00

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

125 reported as of 02/06/24 Allow 2 days for transfer

REACH Compliant

Yes

Product Spec

Click Here

Operating Temp.

(-20C to +70C)

Product Photo

Click Here

Size Diagonal (In)

7.0

PACKAGING TYPE

Bulk/Tray/Box

Outline Dimension

165mmX104mm

Operating Temp

(-20C to +70C)

Back Light (LED)

White LED

REACH Compliant?

Yes

Registerable

Yes

Size Diagonal

7.0

Step File Links

Click Here

Stock Status

Stocked

VIEW

Full

NAFTA Compliant

No

MSL

Maintain in Room Temp.

CAGE CODE

7XUK2

Connector Type

(CN1): Male IDC Box Header; 20-pin, 2x10, 2.54mm pitch (CN2): Top-contact FFC Connector; 20-pin, 1.00mm pitch

Controller

FT813

Data Links

Click Here

Display Format

800 x 480 Pixels

Display Mode

Transmissive

Display Type

Premium (MVA)

Image Links

Click Here

Voltage Supply

3.3 V

Interface

SPI/D-SPI/Q-SPI

Is Dry Pack Required?

No

Is Part LEAD(Pb) FREE

Yes

Is Part STATIC Sensitive

Yes

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

16

Dry Pack Required

No

STATIC Sensitive

Yes

Step File Name

http://www.newhavendisplay.com/docs/STEPFiles/NHD-7.0-800480FT-EVE2-CTP.zip

Status

Stocked
