filter--iconPrice List

NHD-7.0-1024600AF-LSXP

Newhaven | TFT Displays | 7.0 Inch TFTs
yellow-timer-icon Factory Lead Time: 112
onlycheckmark RoHs Compliant

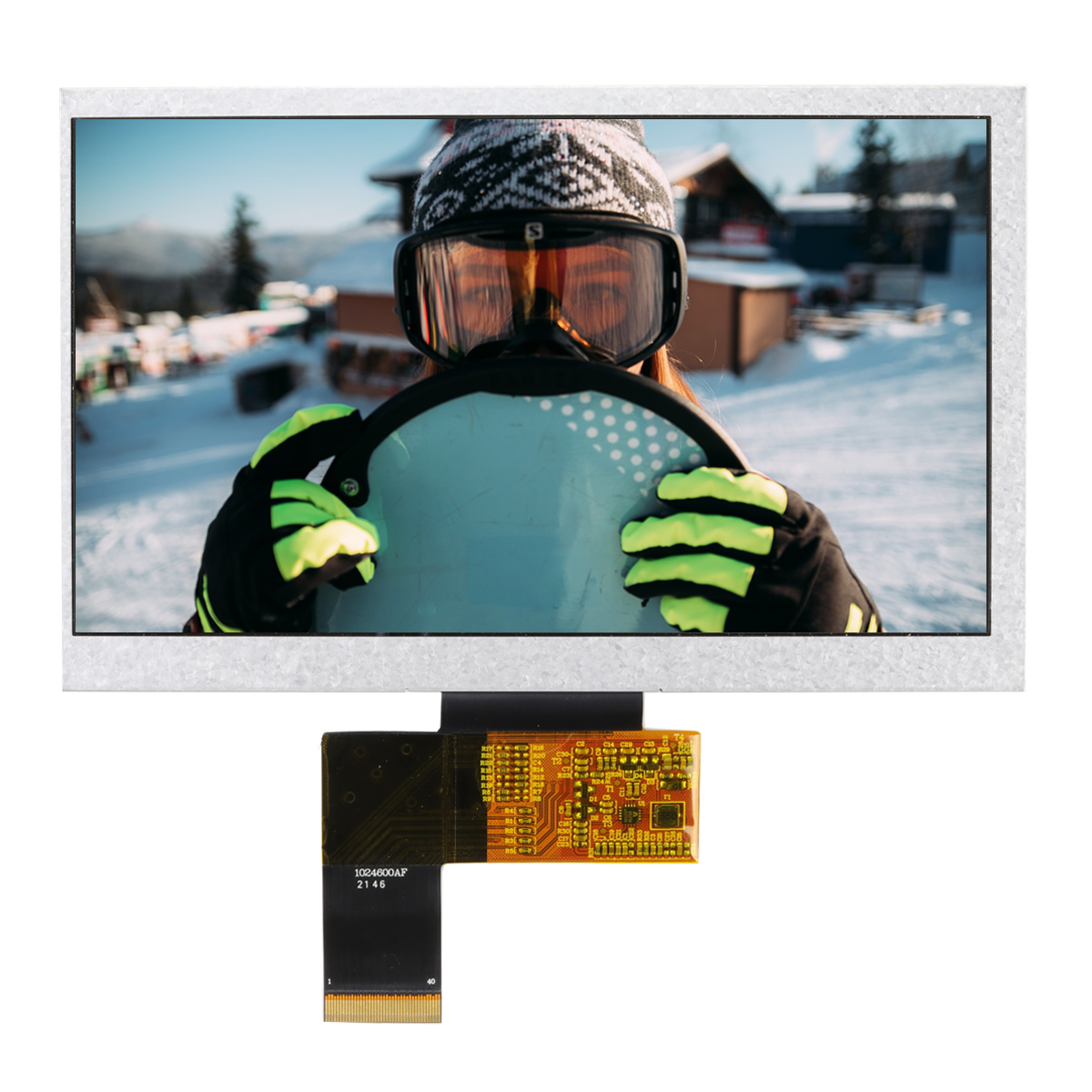

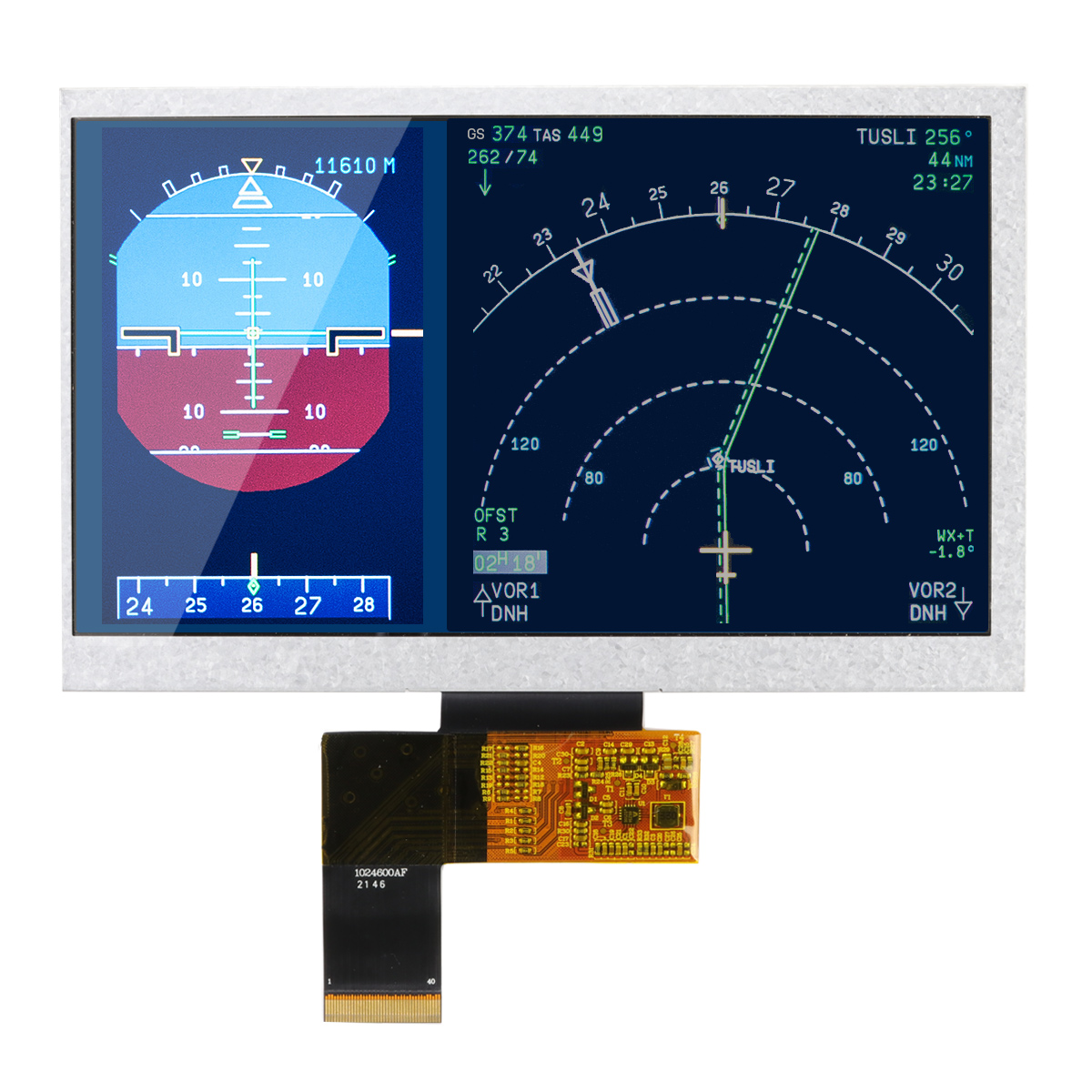

Newhaven 1024x600 transmissive 7.0(Inch) IPS W/ No Touch @ 3.3V and LVDS Interface with 40-Pin FFC Connector and HX8282-A11+HX8696-A00 Controller. PN - NHD-7.0-1024600AF-LSXP

$121.60

Min: 100  Mult: 1

Product Attributes

Remote Warehouse

2100 reported as of 02/06/24 Allow 2 days for transfer

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

REACH Compliant

Yes

Product Photo

Click Here

Operating Temp.

(-)20 ~ (+)70

Size Diagonal (In)

7

Operating Temp

(-)20 ~ (+)70

Outline Dimension

165x104x6.2

PACKAGING TYPE

Bulk/Tray/Box

NAFTA Compliant

N/A

Back Light (LED)

White LED

REACH Compliant?

Yes

Registerable

Yes

Size Diagonal

7.0

Stock Status

Stocked

VIEW

Full

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

CAGE CODE

7XUK2

Connector Type

40-Conductor FFC

Controller

HX8282-A11+HX8696-A00

Data Links

Click Here

Display Format

1024x600 Pixels

Display Mode

transmissive

Display Type

TFT LCD

Voltage Supply

3.3 V

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

16

Is Part STATIC Sensitive

Yes

Is Part LEAD(Pb) FREE

Yes

Is Dry Pack Required?

No

Interface

LVDS

Image Links

Click Here

STATIC Sensitive

Yes

Dry Pack Required

No

Status

Stocked

Not available at this time.
