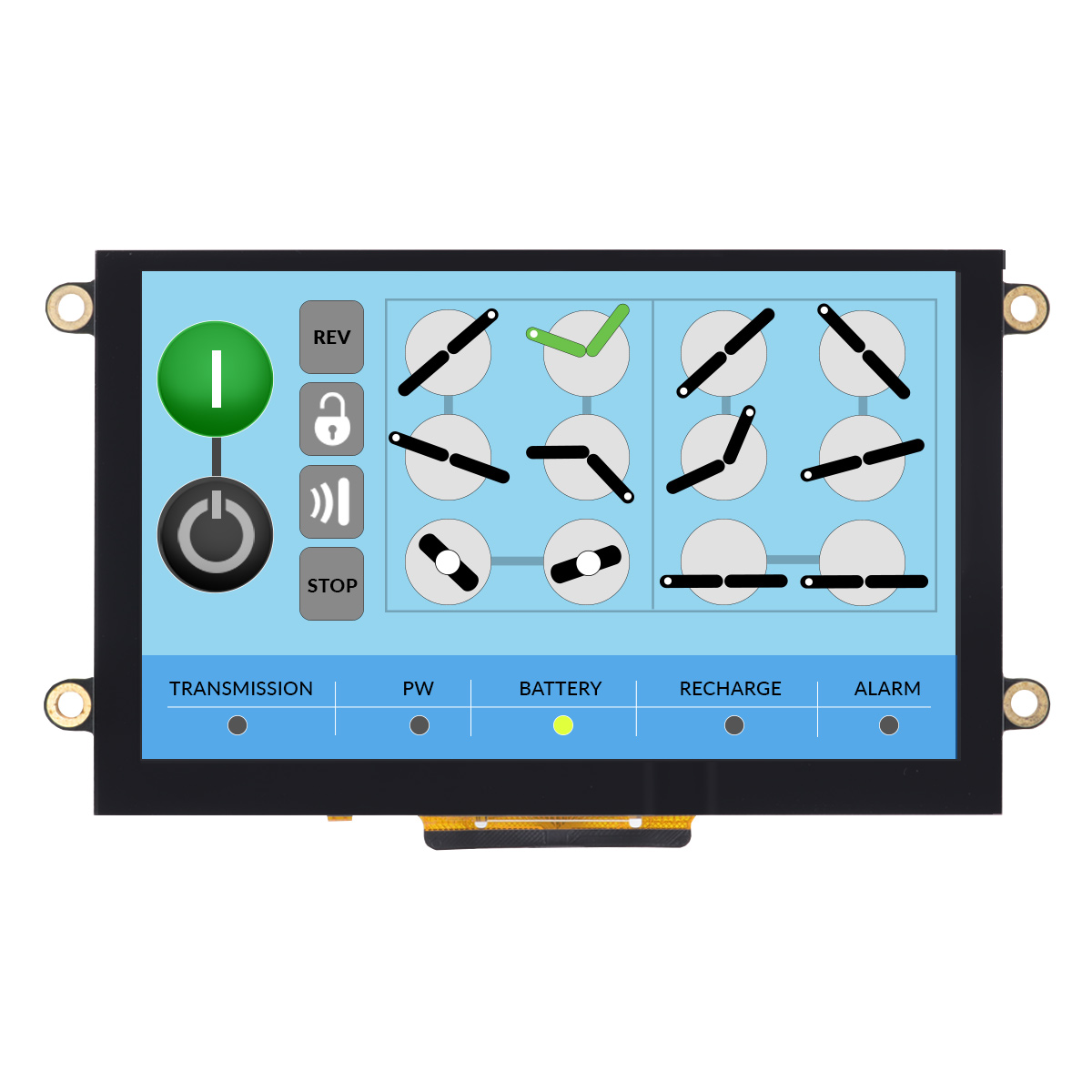

NHD-5.0-800480FT-CSXP-CTP

Newhaven | IPS EVE2 TFT | 5.0 Inch TFTs
yellow-timer-icon Factory Lead Time: 126
onlycheckmark RoHs Compliant
5.0" IPS EVE2 TFT with CapTouch Newhaven Display with 3.3V and Transmissive Display Mode. Uses connector type (CN1): Male IDC Box Header - 20-Pin, 2x10, 2.54mm pitch. (CN2): FFC Connector - 20-Pin, 1.0mm pitch, Top-contact.. Display format 800x480P/N: NHD-5.0-800480FT-CSXP-CTP

$141.30

Min: 100  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

0 reported as of 02/06/24 Allow 2 days for transfer


Click Here

Data Sheet

Click Here

Step File

Click Here

PACKAGING TYPE

Bulk/Tray/Box

Outline Dimension

120.7 x 75.80 x 15.95

REACH Compliant

Yes

Operating Temp

(-20C to +70C)

REACH Compliant?

Yes

Registerable

Yes

Back Light (LED)

900 cd/m²

Size Diagonal

5.0

STATIC Sensitive

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

Full

NAFTA Compliant

No

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

CAGE CODE

7XUK2

Connector Type

(CN1): Male IDC Box Header - 20-Pin, 2x10, 2.54mm pitch. (CN2): FFC Connector - 20-Pin, 1.0mm pitch, Top-contact.

Controller

FT813

Data Links

Click Here

Display Format

800 x 480 Pixels

Display Mode

Transmissive

Display Type

IPS EVE2 TFT

Voltage Supply

3.3 V

Image Links

Click Here

Interface

SPI/D-SPI/Q-SPI

Is Dry Pack Required?

No

Is Part LEAD(Pb) FREE

Yes

Is Part STATIC Sensitive

Yes

LEAD TIME (WEEKS)

18

LEAD(Pb) FREE

Yes

ECCN

EAR99
