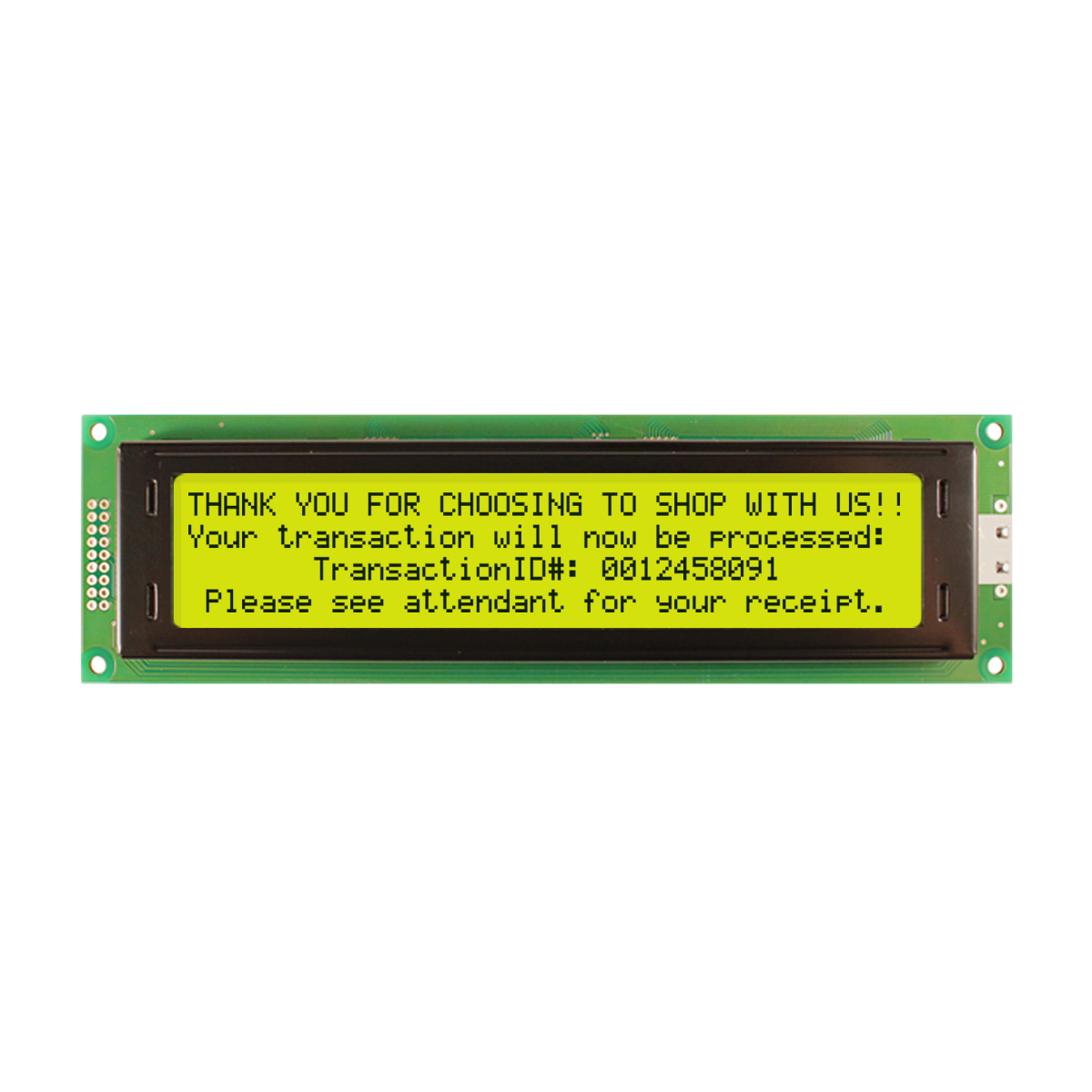

NHD-0440AZ-FL-YBW

Newhaven | LCD Character | 4x40 Character LCD
green-check-icon Total Stock: 1
yellow-timer-icon Factory Lead Time: 105
onlycheckmark RoHs Compliant
Newhaven LCD Character Display Display with Display Format 4 x 40 Characters with 4.89 x 2.78 Character size Using 8-Bit Parallel Interface Full Part Number: NHD-0440AZ-FL-YBW

$27.40

Min: 1  Mult: 1

Product Attributes

Remote Note

Remote warehouse stock is subject to prior sale. Inventory is updately weekly.

Remote Warehouse

3600 reported as of 02/06/24 Allow 2 days for transfer

REACH Compliant

Yes

Operating Temp.

(-)20 ~ (+)70

Product Spec

Click Here

Product Photo

Click Here

NAFTA Compliant

No

Operating Temp

(-)20 ~ (+)70

MSL

Maintain in Room Temp.

Moisture Sensitivity Level (MSL)

Maintain in Room Temp.

Outline Dimension

190.0 x 54.0

PACKAGING TYPE

Bulk/Tray/Box

Voltage Supply

5 V

REACH Compliant?

Yes

Registerable

Yes

Step File Links

Click Here

Stock Status

Stocked

VIEW

6:00

LEAD(Pb) FREE

Yes

LEAD TIME (WEEKS)

14-16

Is Part STATIC Sensitive

Yes

CAGE CODE

7XUK2

Character Size CH x CW

4.89 x 2.78

Connector Type

2x8 Left

Controller

ST7066-0A

Data Links

Click Here

Display Format

4 x 40 Characters

Display Mode

Transflective

Display Type

STN- Y/G

Back Light (LED)

Yellow/Green

Is Part LEAD(Pb) FREE

Yes

Is Dry Pack Required?

No

Interface

8-Bit Parallel

Image Links

Click Here

STATIC Sensitive

Yes

Dry Pack Required

No

Status

Stocked

Step File Name

www.newhavendisplay.com/docs/STEPFiles/NHD-0440AZ-FL-YBW.zip

Display Screen Size.

4 x 40 Characters

Family.

Model AZ

Polarizer.

Transflective

Backlight.

Yellow/Green Array

Display Mode.

STN Yellow/Green

View Angle.

6:00 O'clock

Operating Temperature.

Wide -20C to +70C

Special (x)

None
